Description

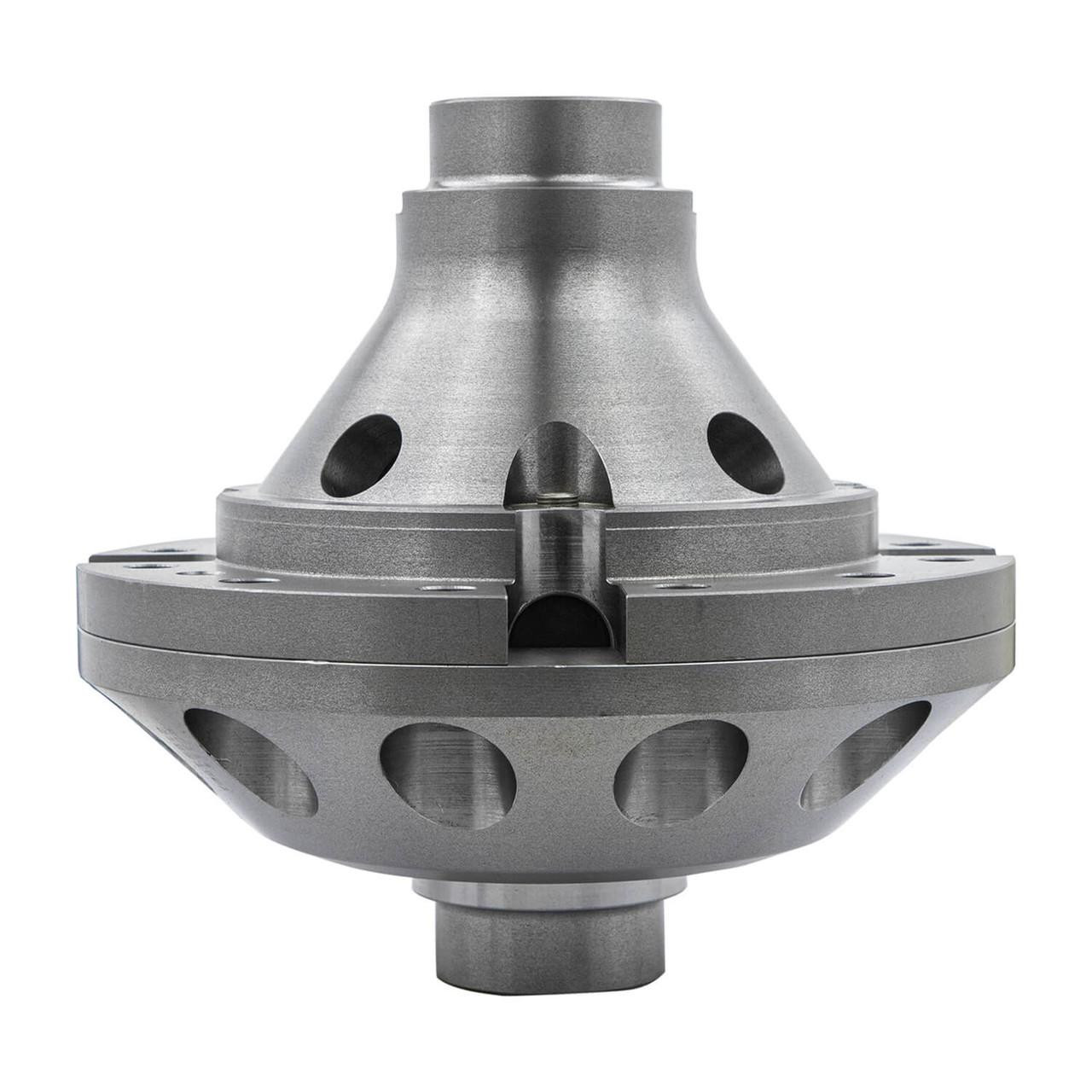

The ARB® Air Locker RD114 is a pneumatically activated rear locking differential engineered for the GM Full Float 14-Bolt 10.5″ axle, fitting a wide range of Chevrolet and GMC 2500 and 3500 HD trucks, vans, and SUVs from 1985 through 2013 across all available gear ratios with a 30-spline, 1.56″ axle shaft.
IMPORTANT: An air compressor is required to operate the ARB Air Locker and is sold separately. Confirm your axle is the GM Full Float 14-Bolt 10.5″ (FF) configuration before ordering. This unit is designed for the full-float rear axle only and will not fit semi-float variants.
The ARB Air Locker is the world’s premier on-demand traction system, delivering 100 percent differential lock precisely when the driver commands it — and reverting to fully open differential behavior the moment it is disengaged. When locked, the Air Locker prevents the internal differential gears from rotating relative to each other, forcing both rear wheels to turn in direct unison with the ring gear. The result is maximum possible traction on any surface, regardless of wheel loading or terrain angle. When unlocked, the axle functions as a conventional open differential with no impact on road manners, fuel economy, or driveline wear.
The locking mechanism is pneumatically operated, driven by a solenoid valve and routed airline connected to the vehicle’s on-board air compressor. Activation is handled from the driver’s seat via the included switch — no need to exit the vehicle, select low range, or reduce speed. ARB’s patented “timed” locking geometry allows the locker to engage and, critically, to disengage with high speed and reliability even under load. The steel-reinforced, elastomer-bonded annular seal is rated for extreme climatic temperature ranges, ensuring consistent sealing performance whether operating in sub-zero conditions or desert heat.

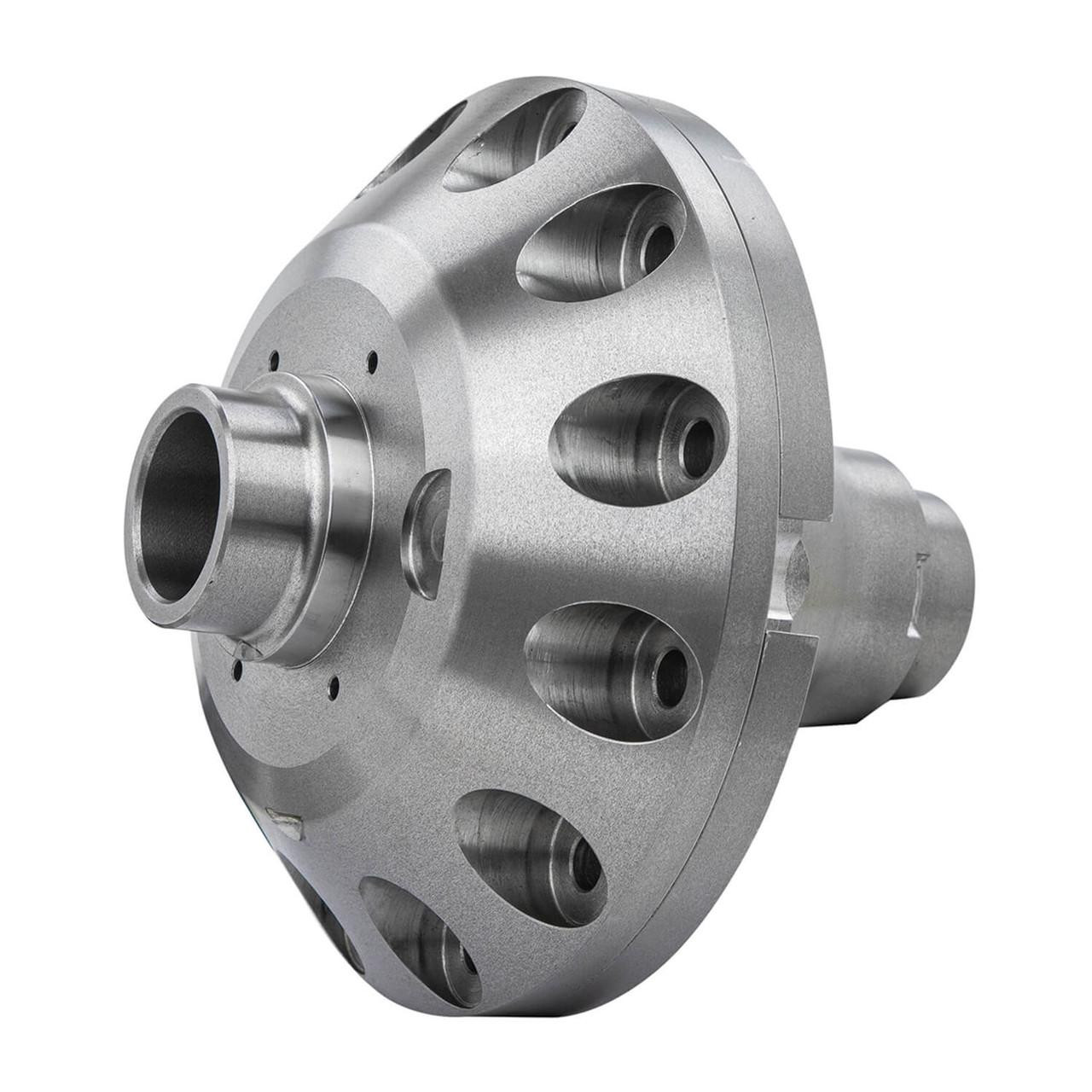

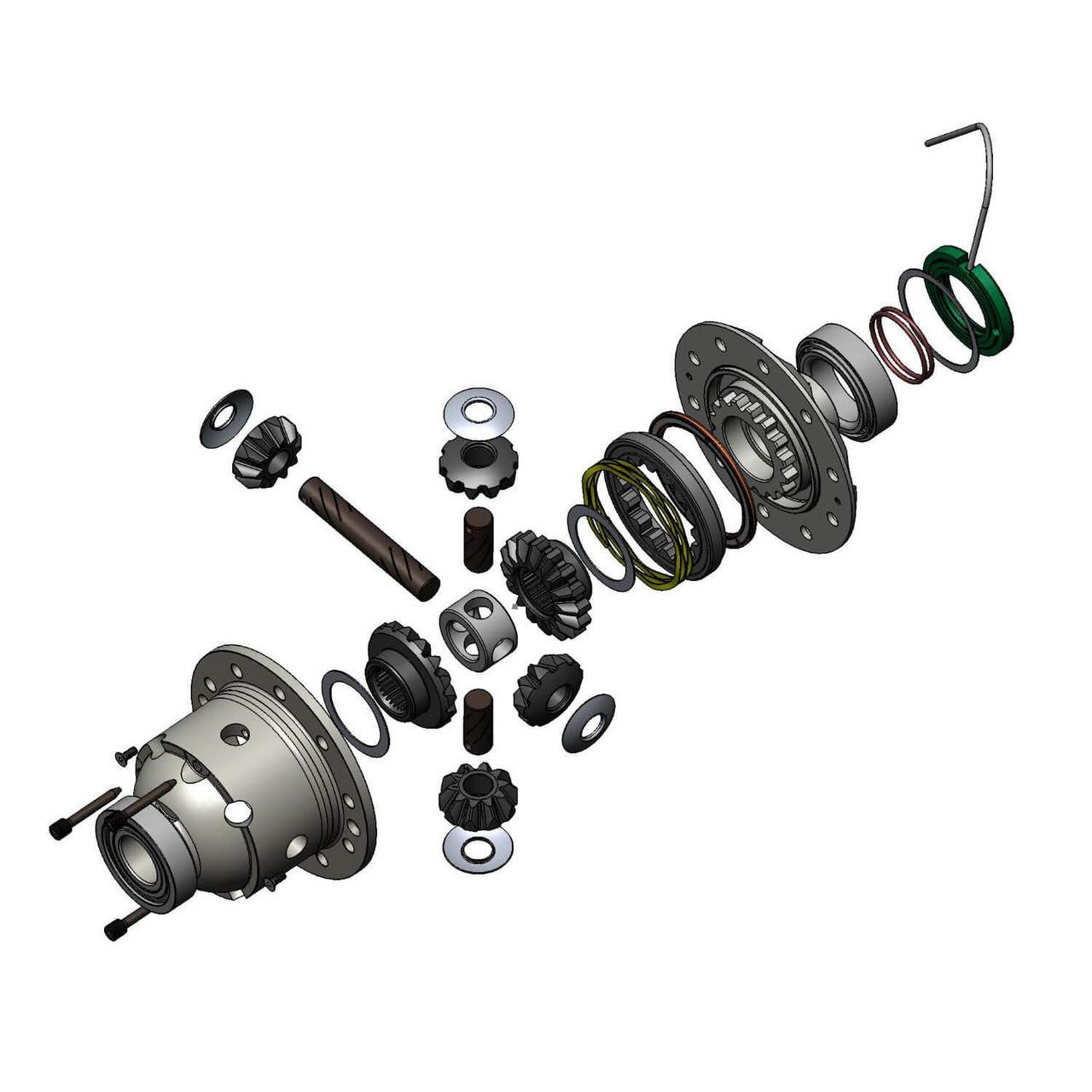

The Air Locker’s two-piece carrier design minimizes moving parts while maximizing structural strength. All internal components are machined from high-grade steel, and the assembly is built to ARB’s exacting tolerances for long service life under repeated off-road use. The RD114 carries ARB’s 5-year warranty and ships as a complete kit including the Air Locker differential, activation switch, solenoid valve, airline, and bulkhead fitting.
- Fits: GM Full Float 14-Bolt 10.5″ rear axle, 30-spline, 1.56″ shaft — all gear ratios — 1985–1986 Chevrolet C20 | 1985–1986 Chevrolet C20 Suburban | 1989–2000 Chevrolet C2500 | 1992–1999 Chevrolet C2500 Suburban | 1989–2000 Chevrolet C3500 | 1985–1988 Chevrolet G20 | 1985–1988 Chevrolet G30 | 1985–1986 Chevrolet K20 | 1985–1986 Chevrolet K20 Suburban | 1989–2000 Chevrolet K2500 | 1992–1999 Chevrolet K2500 Suburban | 1989–2000 Chevrolet K3500 | 1999 Chevrolet P30 | 2002–2005 Chevrolet Avalanche 2500 | 1989–2000 GMC C3500 | 1989–1995 GMC G2500 | 1989–2000 GMC K2500 | 2000–2013 GMC Yukon XL 2500
- Provides 100% on-demand differential lock with no effect on open-differential on-road behavior when disengaged
- Pneumatically activated via in-cab switch — engages and disengages at any speed without leaving the driver’s seat
- Patented “timed” locking mechanism delivers high-strength engagement and ultra-fast unlocking even under load
- Two-piece steel carrier construction with minimal moving parts for maximum durability and field reliability
- Steel-reinforced, elastomer-bonded annular seal rated for extreme climatic temperatures

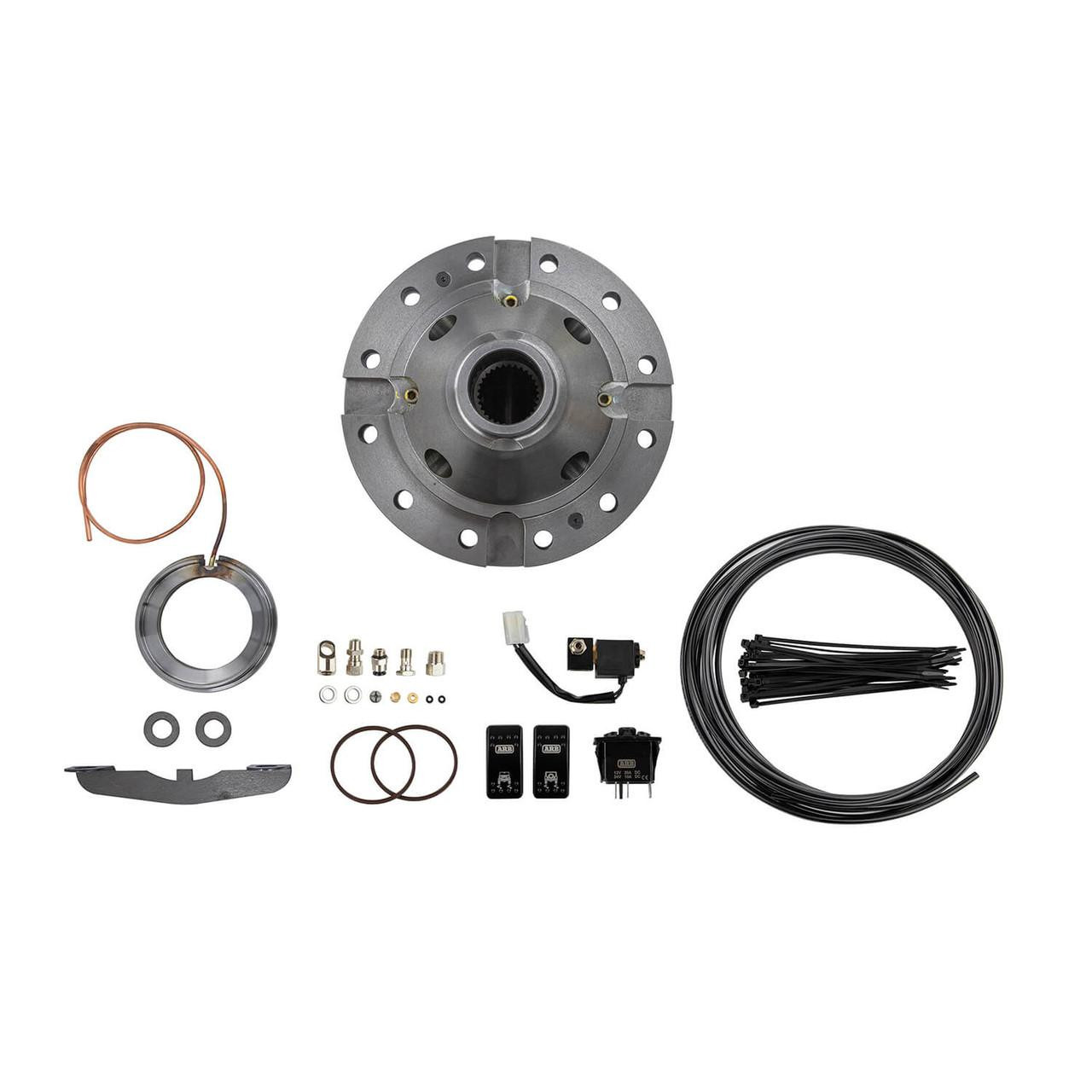

- Kit includes: Air Locker differential, activation switch, solenoid valve, airline, and bulkhead fitting
- Air compressor required for operation — sold separately
- Warranty: 5 years
- Sold individually
| Part Number | RD114 |
| Axle | GM Full Float 14-Bolt 10.5″ |
| Position | Rear |
| Axle Configuration | Full Float (FF) |
| Spline Count | 30 |
| Shaft Diameter | 1.56 in |
| Gear Ratio Coverage | All |
| Material | Steel |
| Color | Silver |
| Activation | Pneumatic (air compressor required, sold separately) |
| Kit Contents | Air Locker differential, activation switch, solenoid valve, airline, bulkhead fitting |
| Warranty | 5 years |
The RD114 fits the GM Full Float 14-Bolt 10.5″ rear axle, 30-spline, 1.56″ shaft, all gear ratios. Per-model coverage is as follows: 1985–1986 Chevrolet C20 | 1985–1986 Chevrolet C20 Suburban | 1989–2000 Chevrolet C2500 | 1992–1999 Chevrolet C2500 Suburban | 1989–2000 Chevrolet C3500 | 1985–1988 Chevrolet G20 | 1985–1988 Chevrolet G30 | 1985–1986 Chevrolet K20 | 1985–1986 Chevrolet K20 Suburban | 1989–2000 Chevrolet K2500 | 1992–1999 Chevrolet K2500 Suburban | 1989–2000 Chevrolet K3500 | 1999 Chevrolet P30 | 2002–2005 Chevrolet Avalanche 2500 | 1989–2000 GMC C3500 | 1989–1995 GMC G2500 | 1989–2000 GMC K2500 | 2000–2013 GMC Yukon XL 2500. Verify your specific trim and axle configuration before ordering. This unit is for the full-float (FF) rear axle configuration only and is not compatible with semi-float rear axle variants.
