Description

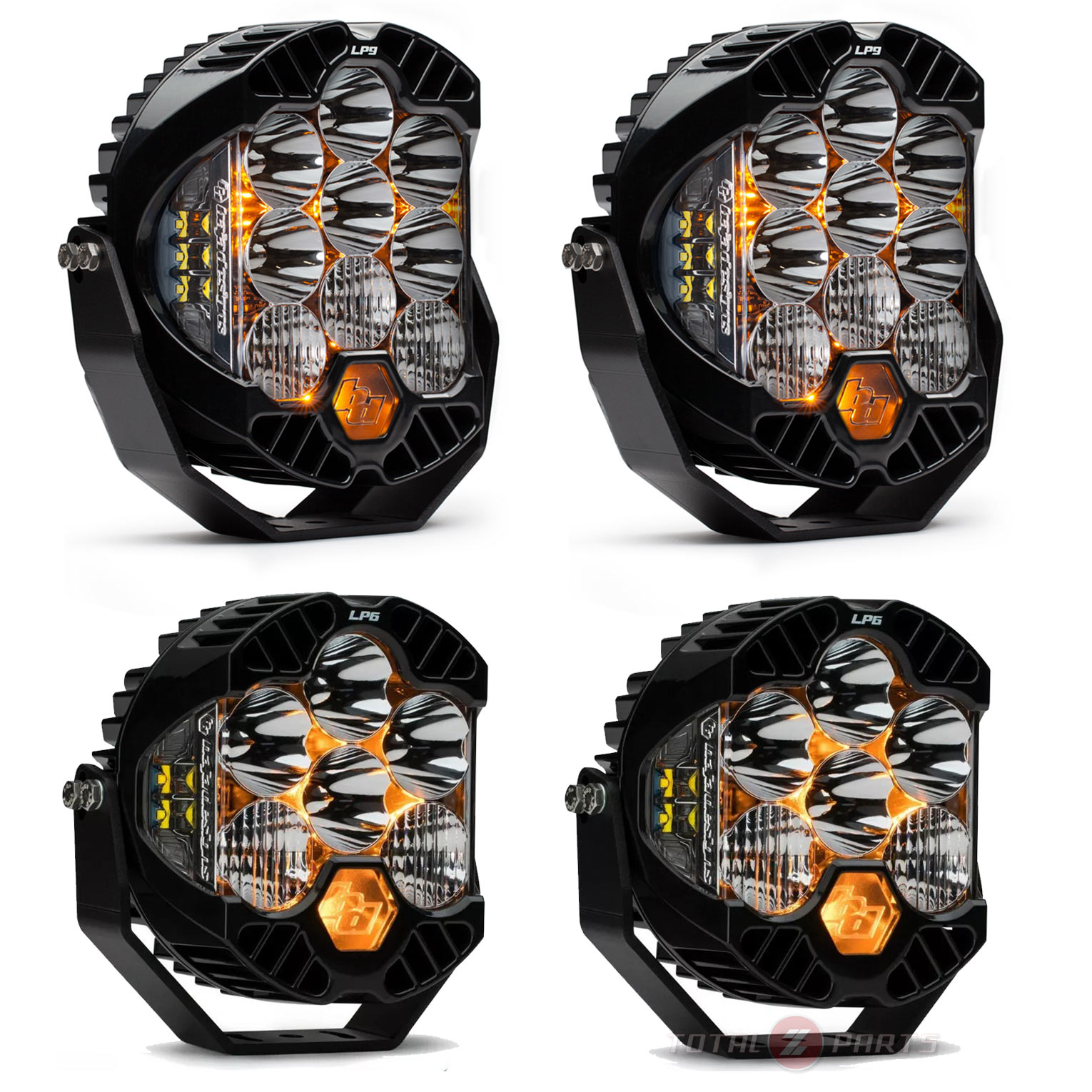

Kit includes 1 pair of Baja Designs LP6 Pro Clear Driving/Combo (with amber backlight), and 1 pair of Baja Designs LP9 Pro Clear Driving/Combo (with amber backlight). NO WIRING INCLUDED (if you need wiring, we have wiring harnesses available separately – please let us know what your wiring setup is so we can recommend the correct harnesses.)
Each LP6 and LP9 light includes a 4-pin deutsch connector.
Technical Specs (per LP9 Pro)
Brightness: 12,547 raw lumens
Light Modes: High Beam/Low Beam/Day-Time Running Backlighting
Wattage: 124.2 Watts
Amps: 9 Amps
Technical Specs (per LP6 Pro)
Brightness: 11,225 raw lumens
Light Modes: High Beam/Low Beam/Day-Time Running Backlighting
Wattage: 103.5
Amps: 7.5 Amps
Package Includes:
2 x LP9 Pro Lights (Clear Driving/Combo Pattern)
2 x LP6 Pro Lights (Clear Driving/Combo Pattern)
2 x LP9 Universal Surface Mount Brackets w/hardware
2 x LP6 Universal Surface Mount Brackets w/hardware
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 total lumens and of 200-degree spread of usable LED light thanks to the dedicated peripheral lighting of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an colored daytime running light, low power, and high-power mode, the LP6 easily fulfills all your lighting needs.
The LP6 Pro is available in multiple patterns to suit your needs. The Driving/Combo pattern provide maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
LP6 Specifications (per light):
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
Wiring Harness Included No
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Spot
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 11225
Description Spot; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.200
Height (in.) 6.500
Length (in.) 6.500
Weight (lbs.) 4.200
LP9 Pro Specifications (per light):
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12547
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
