Description

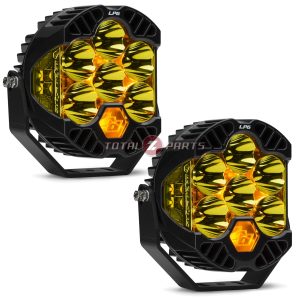

This package includes 2 Baja Designs LP6 in Amber Spot Pattern. 11,225 total raw lumens per light. These high powered lights feature a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light. Harness Sold Separately.
The LP6 is popular as a headlight for Harley Davidson motorcycles, including the Road Glide, Road King, and Street Glide bikes.
These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.
Lens Pattern:
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights
Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 lumens and a 200° spread of useable LED light. The LP6 features 9,253 forward projecting lumens and 1,972 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Dimensions
Depth (in.) 3.200
Height (in.) 6.500
Length (in.) 6.500
Weight (lbs.) 4.200
Specifications
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 11225
Description Spot; Amber
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
