Description

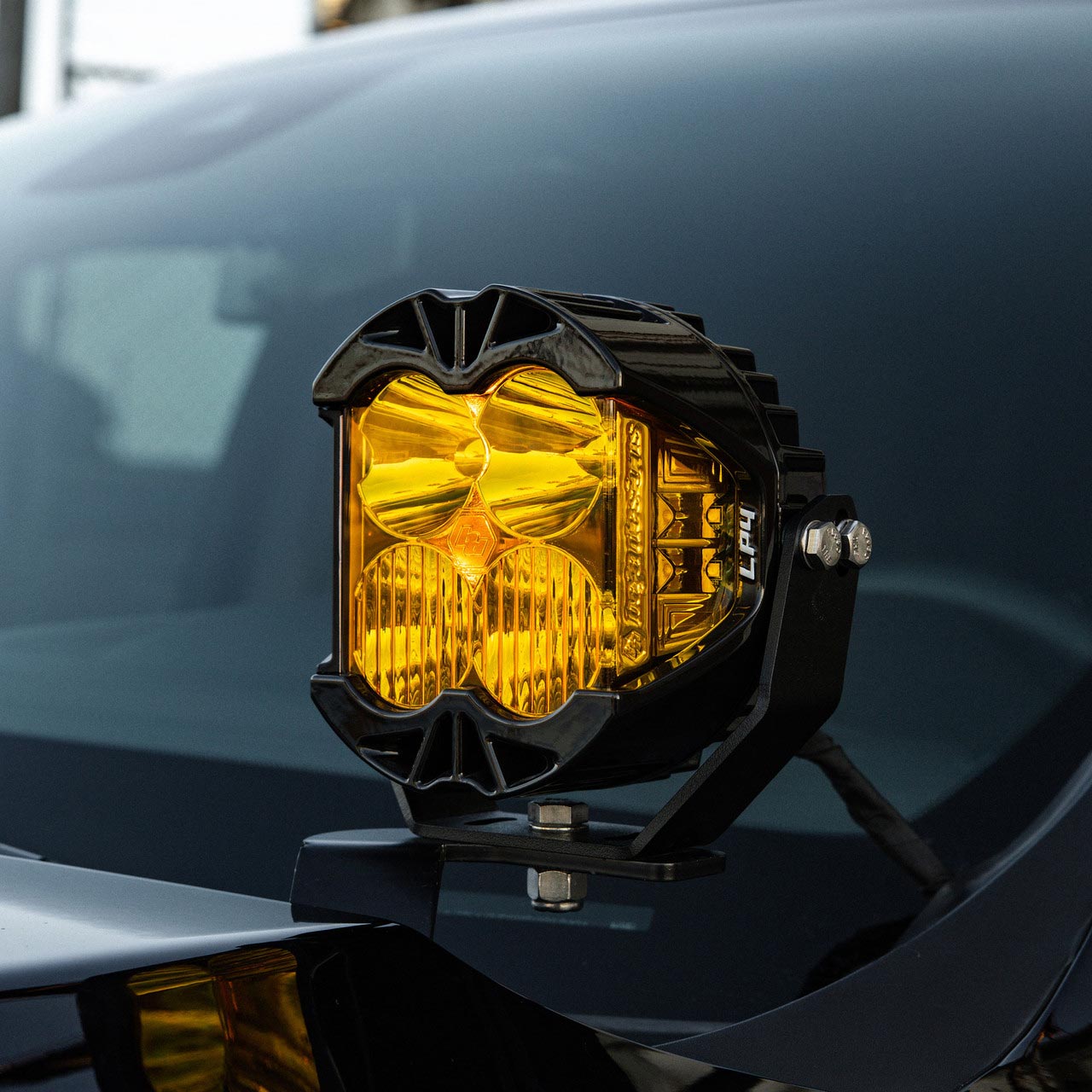

Kit includes 3 Baja Designs LP4 Pro Amber Driving/Combo Lights (with amber backlight feature), surface mount brackets, hardware, wiring harness, and a splitter (for adding a 3rd light to the included on/off switch wiring harness). Baja Designs’ compact & powerful LP4 LED Driving/Combo lights are great for mounting on a front bull bar, front bumper, front grille, and many other locations on your truck, SUV, or other off-road vehicle.
8,857 raw lumens per LP4 Pro.
Package Includes:
(2) LP4 Pro LED Light
(2) Surface Mount Brackets & Hardware (meant for bolting to a flat surface, not specific to any vehicle)
(1) On/Off Wiring Harness (supports 2 LP4 lights)
(1) LP4 Splitter (to add support for 3rd LP4)
(1) Backlit Add-On Wiring (for powering backlight)
Even when they’re not running, the LP4 will look sleek on your off-road vehicle. With their heavy duty aluminum housing and thick, polycarbonate lenses, the Baja Designs LP4 adds some aesthetic flare to your vehicle, while also giving it beastly lighting power for dark environments that require more than just ordinary headlights or fog lights.
Driving/Combo Beam Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Please Note: The main included harness has two DT06-4S Deustsch Connectors (1 connector for each light) and controls the main beam on each LP4 via an On/Off switch. LP4 lights only have a high beam mode (NO low beam), and the harness has a two way switch; one position is OFF, the other is ON (high beam mode). The included “Backlit Add-On” wiring kit (bottom right of main product image) includes fuse taps, along with a long length wiring that has bullet connectors on each end; this separate kit is used to power the blue backlight feature separately, and the bullet connectors on the long pieces of wiring are meant to be connected to the bottom left pin on each Deustsch Connector plug. You can use the included fuse taps to make the blue backlights dependent on a specific vehicle fuse, or you can simply connect the wire to a separate auxiliary switch for manual control of the back-lights.
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, the LP4 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs (per light):
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8857
Description Driving/Combo; Amber; Pair
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
