Description

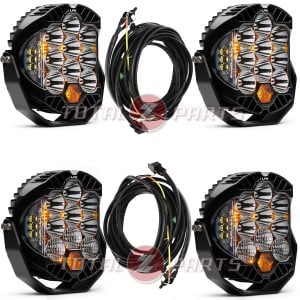

Set of 4 Baja Designs LP9 Pro LED Lights: 1 pair with clear spot lenses & amber backlight, and 1 pair with clear driving/combo lenses & amber backlight. Includes 2 toggle switch wiring harnesses (3 way toggle switch for low beam/off/high beam, and open lead for backlight function). Each LP9 Pro features an amber backlight / daytime running light function which can be independently controlled. Kit includes 4 LP9 Pros, and 2 toggle switch wiring harnesses.
Technical Specs (per LP9 Pro)
Brightness: 12,547 raw lumens
Light Modes: High Beam/Low Beam/Day-Time Running Backlighting
Wattage: 124.2 Watts
Amps: 9 Amps
Each light has a brightness of 12,547 Forward Projecting Lumens, Utilizing 9 LEDs.
Driving/Combo Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Spot Pattern: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Manufacturer’s Info:
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
The addition of red, blue, or green backlight options alongside our original amber on the LP6 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs Features:
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12547
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
