Description

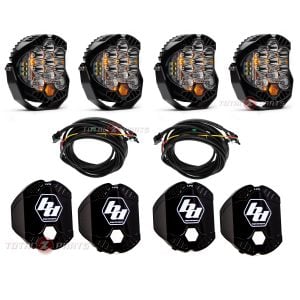

Kit includes 4 x LP9 Pro Clear Driving/Combo Pattern lights (part # 320003) with wiring harness (with built in switch), black rock guards, mounting brackets & hardware. Each light has a brightness of 12,547 Forward Projecting Raw Lumens, Utilizing 9 LEDs. Each light has a power draw of 9A.
Encased in a distinctive hard-anodized, black powder-coated aluminum housing, and fitted with a hard-coated polycarbonate lens, the LP9 Pro is the ultimate lighting option for those in search of the most powerful and advanced off-road LED light on the market today. Utilizing 9 LEDs, each LP9 produces a blistering 12,547 raw lumens in high beam mode. The low beams produce a 42-degree optic spread while the high beams add a 6-degree spot beam, giving you an ideal mixture of peripheral and forward illumination for most driving conditions.
With its impressive IP69K rating, the LP9 is proven to withstand the harsh elements that come along with off-road racing or late-night rock crawling. Whether you’re driving through rain, dust, mud, sleet, or snow, you can be certain the LP9 will not fail to illuminate your path. Best of all, the LP9 Pro offers a unique and striking appearance that enhances the look of any truck or off-road vehicle. You can even make use of the LP9 in broad daylight by taking advantage of the built in daytime running light feature, which elegantly engages the amber backlight, and puts an amber glow behind the Baja Designs logo at the bottom of the lens.
Driving/Combo Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Manufacturer’s Info:
A design that was inspired by Baja Designs’ legendary 8″ La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Spot
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 12547
Description Spot; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
