Description

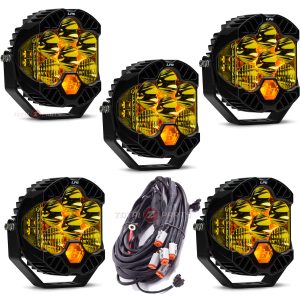

Set of 5 Baja Designs LP6 Pro Lights in Amber Driving/Combo (with amber backlight), and 5-light upfitter wiring harness (with open wire leads for wiring to your own switches). These high powered lights feature a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light. 11,225 raw lumens per light.
Each LP6 includes a universal bracket, hardware (bolts/nuts/washers), and a 4-pin deutsch connector plug with bullet connectors.
The included upfitter wiring harness has all open wire leads, for wiring the high beam, low beam, and backlight trigger wires to your own switches. The wiring harness is only made to support a total of 5 LP6 lights (7.5 amps / 96W per lead).
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wiring Harness Description:
LP4/LP6 Upfitter Wiring Harness – 5 Light Max. This universal LP4/LP6 Pro wiring harness is designed to handle up to five LP4 or LP6 Pro LED Lights. It includes leads to wire into the stock vehicle upfitter auxiliary switches. The perfect harness to wire up multiple LP4/LP6 lights on your vehicle.
- Designed to be used to wire up to five L4 or LP6 lights only.
- Leads to wire into the vehicle’s stock upfitter/auxiliary switches
- 7.5 amps / 96W per lead
LP6 Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 raw lumens and a 200° spread of useable LED light.
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 11225
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
