Description

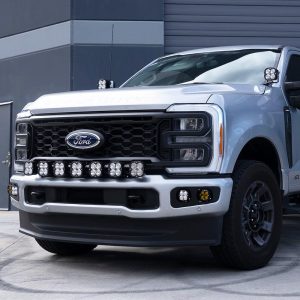

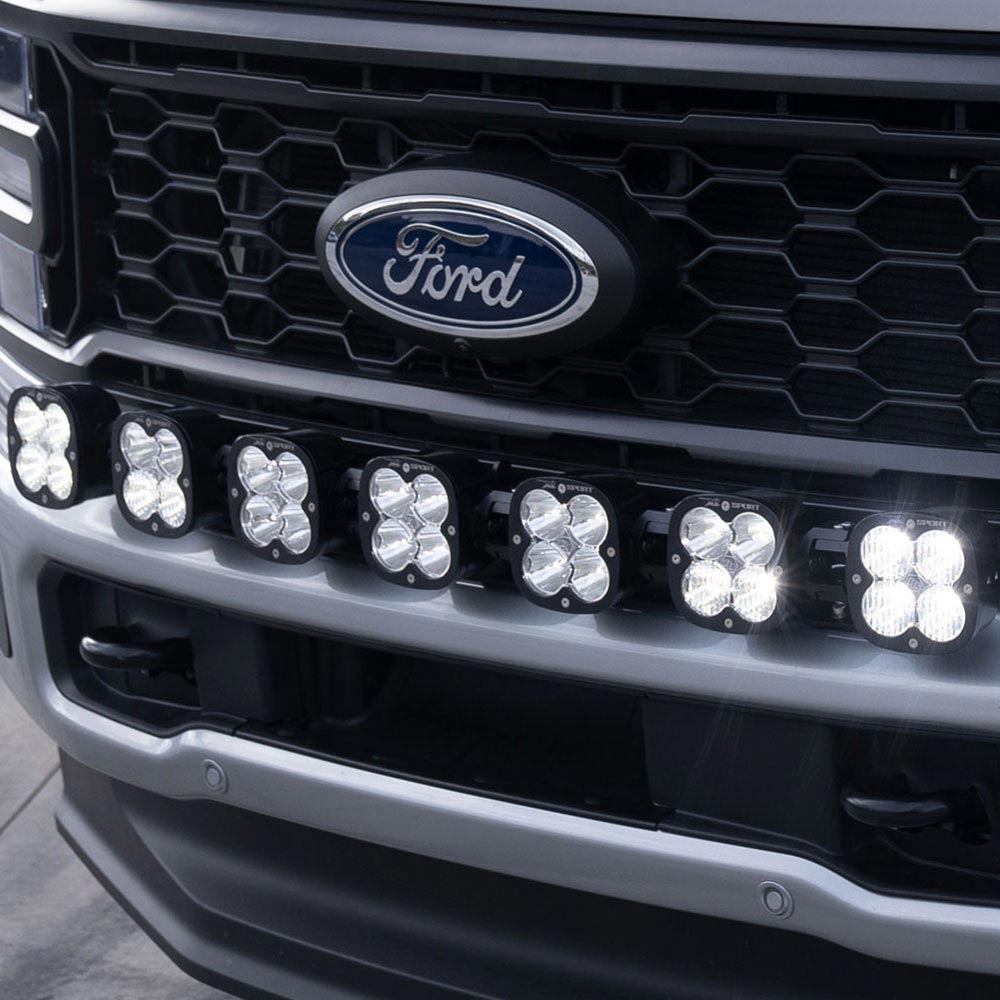

Baja Designs’ 7 XL Linkable LED Front Bumper Light Bar Kit with Upfitter Harness for 2023-UP Ford F-250 or F-350 Super Duty. The included upfitter harness has open leads, for wiring to your own switches or switching system. Experience full adjustment and optimal performance with the Baja Designs 7XL Linkable Bumper LED Light Kit, engineered for enthusiasts seeking customizable lighting solutions. Utilizing our 7XL Linkable, this kit produces 22,050 total raw lumens of forward projected light that has a smooth blend due to the use of our wide cornering, driving combo and spot lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your Super Duty truck. This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection.

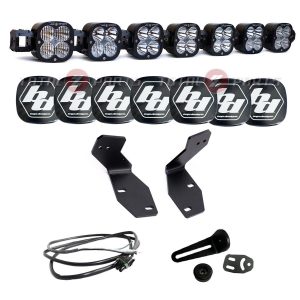

Kit Includes:
(1x) 7XL Linkable, Clear
(7x) Black snap on rock guard covers
(2x) Mounting brackets
(1x) Upfitter wiring harness
(1x) Pre-load kit
All necessary hardware
Specs:
Lumens: 22,050
182W / 14A
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Ford
INCLUDED WITH KIT:
SKU: 740005
Dimensions
Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 45.34
Specifications
Amperage Rating (A) 14
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 22,050
Description 7XL Sport; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 7
Lighting Modes Beam
Lighting Quantity 28
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 182
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
