Description
Baja Designs 7 XL Pro Linkable Roof Light Bar Kit (with Black Snap-On Covers) for 2024-UP Can-Am Maverick R. Includes 7 XL Pro LED lights with 7 black rock guard covers, a wiring harness, hardware, and vehicle specific mounting brackets.
Brightness: 28,655 raw lumens
Watts: 289.8 Watts
Amperage Rating: 21 Amps
Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 45.34

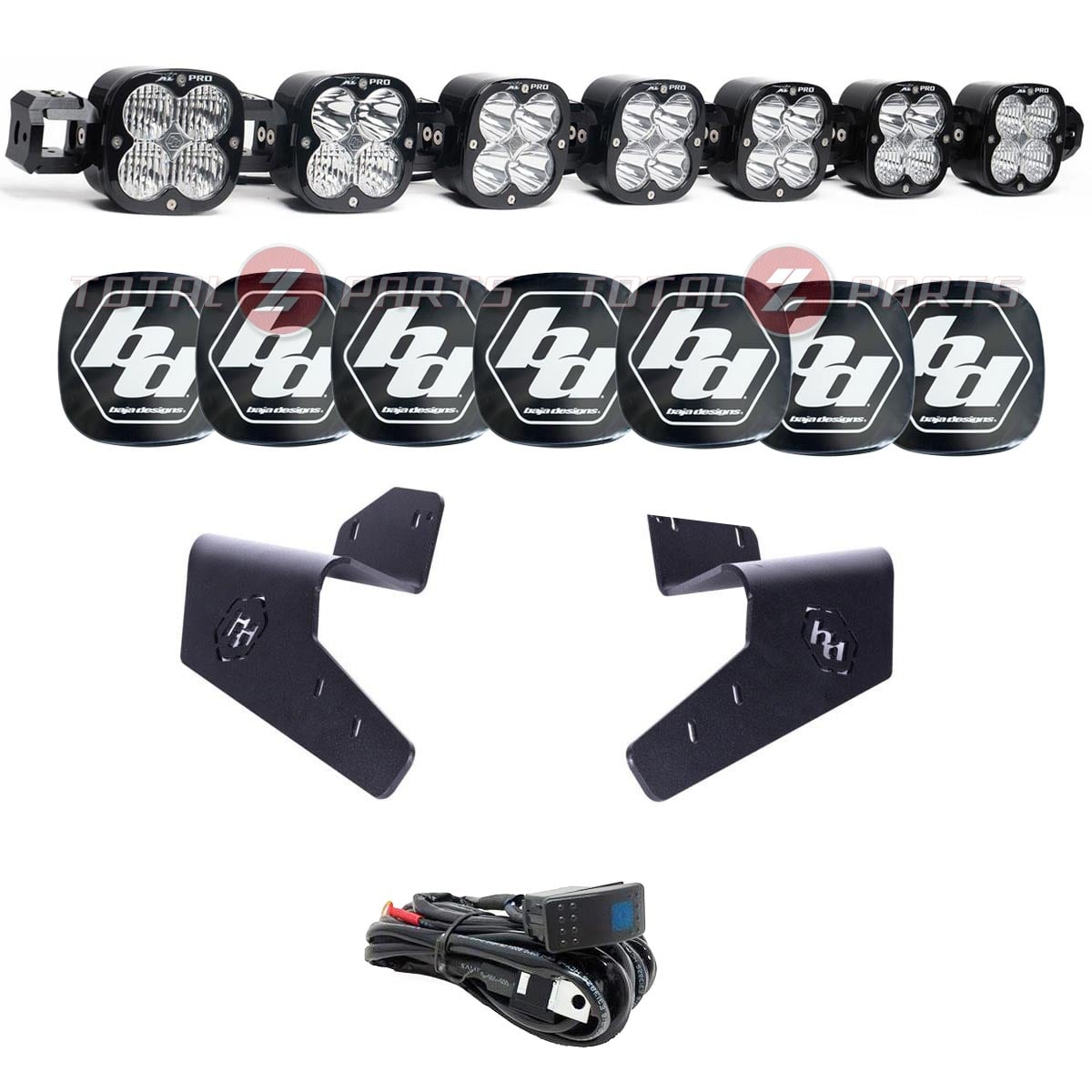

The 7XL Pro Linkable Kit includes the following:
(1) 7XL Pro Linkable Light Bar
(1) Wiring Harness
(2) Mounting Bracket
All necessary hardware
The Baja Designs 7-XL Pro Linkable for the Can-Am Maverick R stands ready to illuminate the trail with precision. Engineered for speed enthusiasts, this kit delivers an impressive 28,655 raw lumens of forward-projecting light, drawing only 21 amps. Our unique mounting brackets allow up to 45 degrees of vertical pitch adjustment within each light or the entire light bar. Giving you complete control over your light spread. Independent horizontal adjustments enable straight or arc configurations, ensuring a seamless integration with the lines of your Maverick R. This comprehensive kit includes the 7-XL Linkable LED light bar, mounting brackets, a meticulously crafted and fully crimped wiring harness, along with all necessary components for a straightforward installation, guaranteeing a trail-ready setup. Experience the confidence of a lifetime limited warranty, providing the utmost purchase protection.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
INCLUDED WITH KIT:
74-0013
Dimensions
Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 45.34
Specifications
Amperage Rating (A) 21
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 28,655
Description 7XL Pro; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 7
Lighting Modes Beam
Lighting Quantity 28
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 289.8
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
