Baja Designs® 8 XL Linkable LED Roof Light Bar Kit (Jeep Wrangler JL, Gladiator)
Baja Designs® 8 XL Linkable LED Roof Light Bar Kit (Jeep Wrangler JL, Gladiator)

Baja Designs® 8 XL Linkable LED Roof Light Bar Kit (Jeep Wrangler JL, Gladiator)


Free Shipping
Best Price Guarantee

  • Includes Hardware, Brackets, Wiring Harness
  • Made up of 8 XL Series Pod Lights


In Stock

Est. on or before Fri 10/06

SKU: 447664 Categories: | | | | | Tags: ,

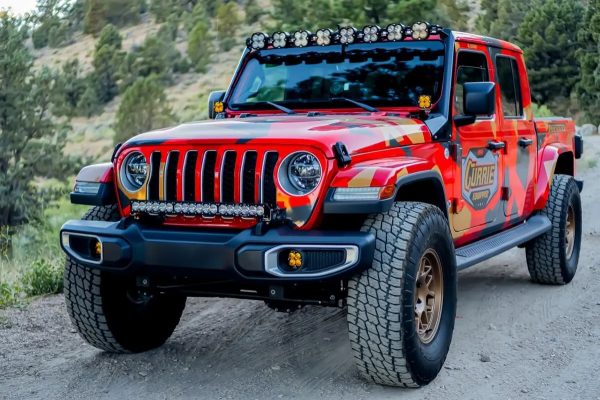

The Baja Designs 447664 LED 8 XL Linkable Roof Light Bar kit is a premium lighting upgrade for your new Jeep Wrangler JL or Jeep Gladiator. Made up of eight XL series light pods, this modular bar gives you unparalleled visibility in even the darkest off-road conditions. Along with a 8 XL series lights lights, this kit includes custom vehicle specific brackets, a wiring harness, all required mounting hardware.

Kit Includes:
x4 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x8 XL Sport Rock Guards
Bronco Mounting Brackets
Pre-load Kit
Toggle Switch Wiring Harness

Full adjustment, total performance. This XL Linkable kit is designed for the JL and JT Jeep platforms. This LED roof bar kit gives off-roaders a high performance, completely customizable solution to drastically improve the looks and performance of their Jeep. This kit includes eight XL Sport LED Lights, aluminum XL Linkable Links, Jeep-specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain. This kit includes an Upfitter Wiring harness for models with factory Upfitter switch provisions.

Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications(Per Light):
Lumens: 25,200 Utilizing 32 LEDs
Wattage/Amps: 208W / 16A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Fits: Jeep Wrangler & Gladiator, 2018, 2019, 2020, 2021, 2022

  • Selection Required: Select product options above before making new offer.
  • Offer Sent! Your offer has been received and will be processed as soon as possible.
  • Error: There was an error sending your offer, please try again. If this problem persists, please contact us.

Make Offer

To make an offer please complete the form below:
Please wait...

Additional information

Weight 17 lbs
Dimensions 50 x 11 x 11in

Baja Designs



Make Model Year
Jeep Gladiator 2020 - 2022
Jeep Wrangler 2018 - 2022
