Description

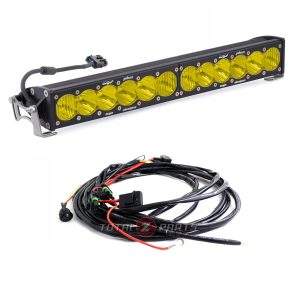

Baja Designs ONX6+ 20-inch amber driving/combo LED light bar. Includes single switch on/off harness (when on, OnX6+ bar will run in full power mode/max brightness). Brightness: 24,920 raw lumens.
Includes:
OnX6+ 20” LED Light Bar, Driving/Combo Pattern Amber Lens
Mounting Brackets & Hardware
Single switch on/off wiring harness
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
At an impressive 24,920 lumens, the brightest just got up to 69% brighter than our previous generation. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. Limited Lifetime Warranty is included for the ultimate in purchase protection.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 20
Weight (lbs.) 7.85
Specifications:
Amperage Rating (A) 16.6 (High); 12.0 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 24,920 (High); 18,460 (Low)
Description Straight; Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 12
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 216 (High); 160 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No
