-10-inch OnX6 +Driving/Combo Light Bar
-OnX6 Off/On Harness

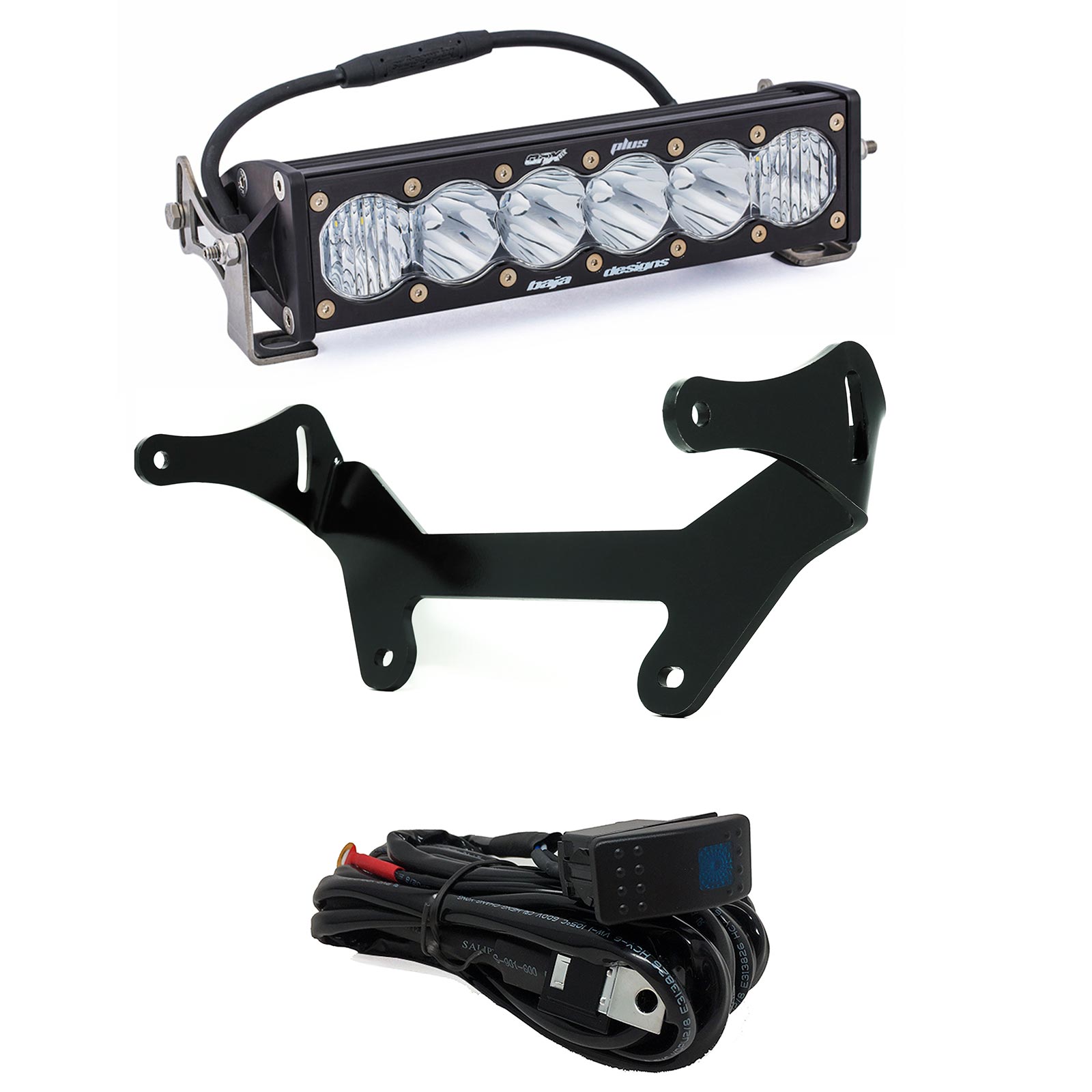

Separate yourself from the pack with the Baja Designs Can-Am OnX6 Shock Mount. This kit includes a 10″ OnX6 light bar and mount that easily bolts up to the factory shock tower and keeps the light stable at high speeds. This kit is ideal for someone looking to gain forward projecting light while maintaining the X3’s aggressive styling.
This harness is designed specifically for the Baja Designs OnX6 Plus and the S8 light bar. The harness is rated for x1 10″-20″ OnX6 light bar or x1 10″-30″ S8 light bar. We spend a substantial amount of time developing these harnesses to ensure they are safe and reliable for your adventures.
The installation of this harness is simple the harness has positive and negative terminals to be ran to your battery. The harness has 1 plug for the OnX6 Plus or S8 that easily plugs in using a weather resistant connector. The rest is a matter of routing throughout your vehicle.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
Dimensions: 10″ x 4.29″ x 2.69″
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
