Description

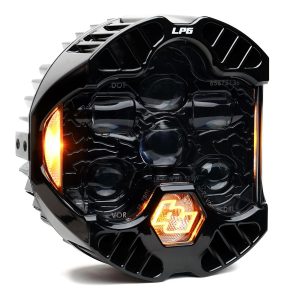

Baja Designs DOT LP6 street approved headlight replacement. White beam with amber daytime running light/backlight. Includes universal surface mount bracket with hardware (designed to bolt light down to a flat surface), and controller module harness (open leads, for connecting to your own powered circuit).

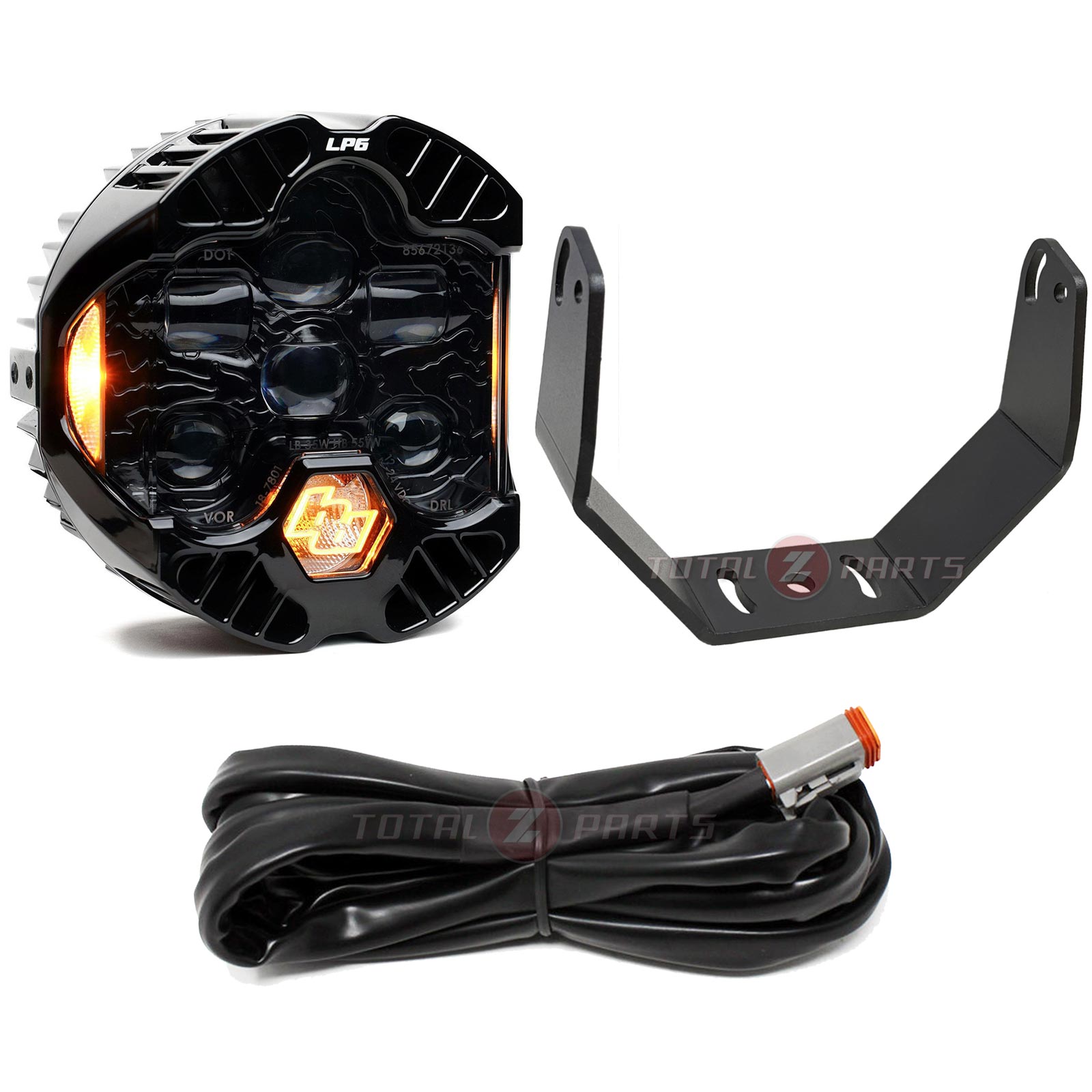

Kit Includes:
(1x) DOT LP6 – Amber DRL
(1x) Controller module wiring harness (open leads, for connecting to your own powered circuit)
(1x) Universal Surface Mounting Bracket
Mounting Hardware
Important Notes:
The included controller module harness does not have any built in switch or relay; it is designed to connect directly to your own powered circuit (such as your vehicle’s built-in auxiliary circuits, or a switching system such as sPOD or Switch Pros).
When wiring with the included controller harness, you must ensure that you never power the high and low beam wires at the same time. This will cause damage to the light.

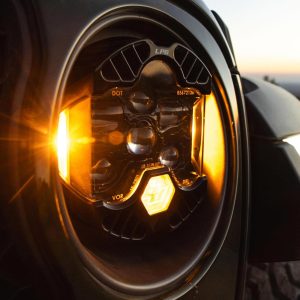

Upgrade your ride with the Baja Designs DOT LP6, our first-ever road-legal LED headlight replacement. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications. This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road. Choose between white or amber daytime running lights to customize your vehicle’s look. With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup. Backed by Baja Designs’ Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability. PLEASE NOTE: uService® is NOT a feature of DOT products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
Features:
Low and High Beam functionality
Daytime running lights for daytime safety
Low beam 3,480 raw lumens | 42,568.7 candela
High beam 5,280 raw lumens | 62,611.5 candela
High beam 40w / 2.8A
Low beam 26w / 1.8A
DRL: 5w / 0.4A
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs (per DOT LP6 light):
Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5
Specifications
Description DRL Color: Amber; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included No
Amperage Rating (A) 1.8A (L) 2.8A (H)
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
