Description
Baa Designs DOT LP6 headlights kit (with White DRL) for 2007-2018 Jeep Wrangler JK (w/Halogen Headlights).
- NOTE: This kit is designed to replace the OEM halogen headlights for the 2007-2018 JK and will not work for the 2017-2018 Saraha/Rubicon trim levels with LED headlights

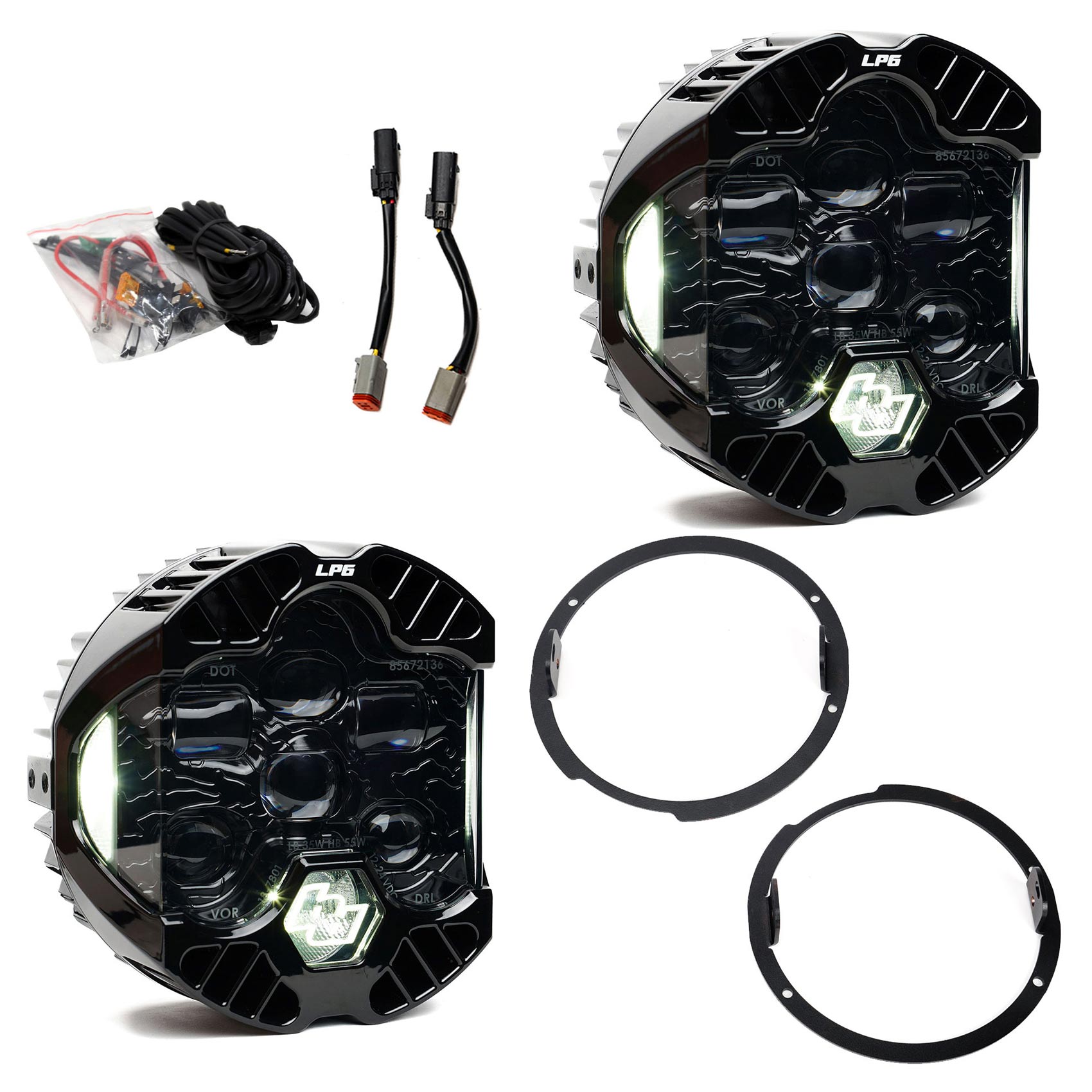

Includes:
- (2x) DOT LP6 White or Amber DRL Lights
- (2x) JK Headlight Brackets
- (2x) Wiring Harness adaptors
- (1x) Wiring Harness backlight add-on
- All Necessary Mounting Hardware
Specs (per DOT LP6):
Voltage: 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Your Jeep JK deserves headlights as capable as the vehicle itself. The Baja Designs DOT LP6 is our first-ever road-legal headlight kit designed to fit seamless in the Jeep Wrangler JK. Inspired by the same LP6 trusted in the toughest off-road races, it’s been re-engineered utilizing projector optics to meet FMVSS 108 standards delivering maximum road-legal performance with Baja Designs racing DNA maintain that same iconic look. Featuring a standard high and low beam the DOT LP6 has integrated white, amber daytime running lights. And with JK-specific brackets and wiring harness integration is effortless, with a factory fit that feels like it was always meant to be there. Backed by Baja Designs’ 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and road-legal usability. NOTE: uService® is NOT a feature of DOT products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
Features:
- Low and high beam functionality
- Daytime running lights for daytime safety available in amber or white
- Jeep Wrangler JK specific mounting brackets included
- Low beam 3,480 raw lumens | 42,568.7 candela
- High beam 5,280 raw lumens | 62,611.5 candela
- High beam 40w / 2.8A
- Low beam 26w / 1.8A
- DRL: 5w / 0.4A
- NOTE: This kit is designed to replace the OEM halogen headlights for the 2007-2018 JK and will not work for the 2017-2018 Saraha/Rubicon trim levels with LED headlights
The Baja Designs Advantage:
-
- ClearView – All the Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Limited Lifetime Warranty – Complete Purchase Protection
Standards & Compliance
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
Dimensions
Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5
Specifications
Description DRL Color: Clear; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included Yes; Brackets Included
Amperage Rating (A) 1.8A (L) 2.8A (H)
