Description
Baja Designs 30″ S8 Grille LED Light Bar Kit 447561 for 2017-2020 Ford F-150 Raptor. See below for detailed manufacturer specs. Kit will not work with ADD Adaptive Cruise Control relocation kit.
Kit Includes:
- 2017-2020 Raptor Mounting Brackets
- Required Hardware
- 30″ S8 Driving/Combo
- Wiring Harness
Manufacturer’s Description:

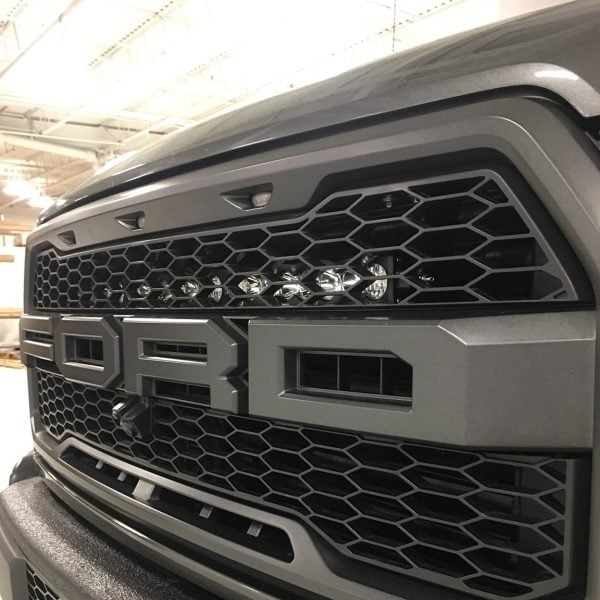

Baja Designs’ 2017, 2018, 2019, 2020 Ford Raptor 30″ S8 grille kit was designed with both functionality and visual appeal in mind. This kit comes with brackets and hardware that were designed to bolt up to factory mounting locations without drilling or cutting. Please note that this kit includes a 30″ S8 in a driving combo beam pattern and the brackets will not accept any other light. The included harness will allow you to easily tap your lights into the factory up-fitter switches.
Light Bar Specs:
Amperage Rating (A) 12.0
Average Rated Life (hr.) 49,930
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 19,050
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 24
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 30 Inch LED Light Bar
Wattage (W) 180
Check out the pattern chart below to see where this kit will be projecting light.
