Description

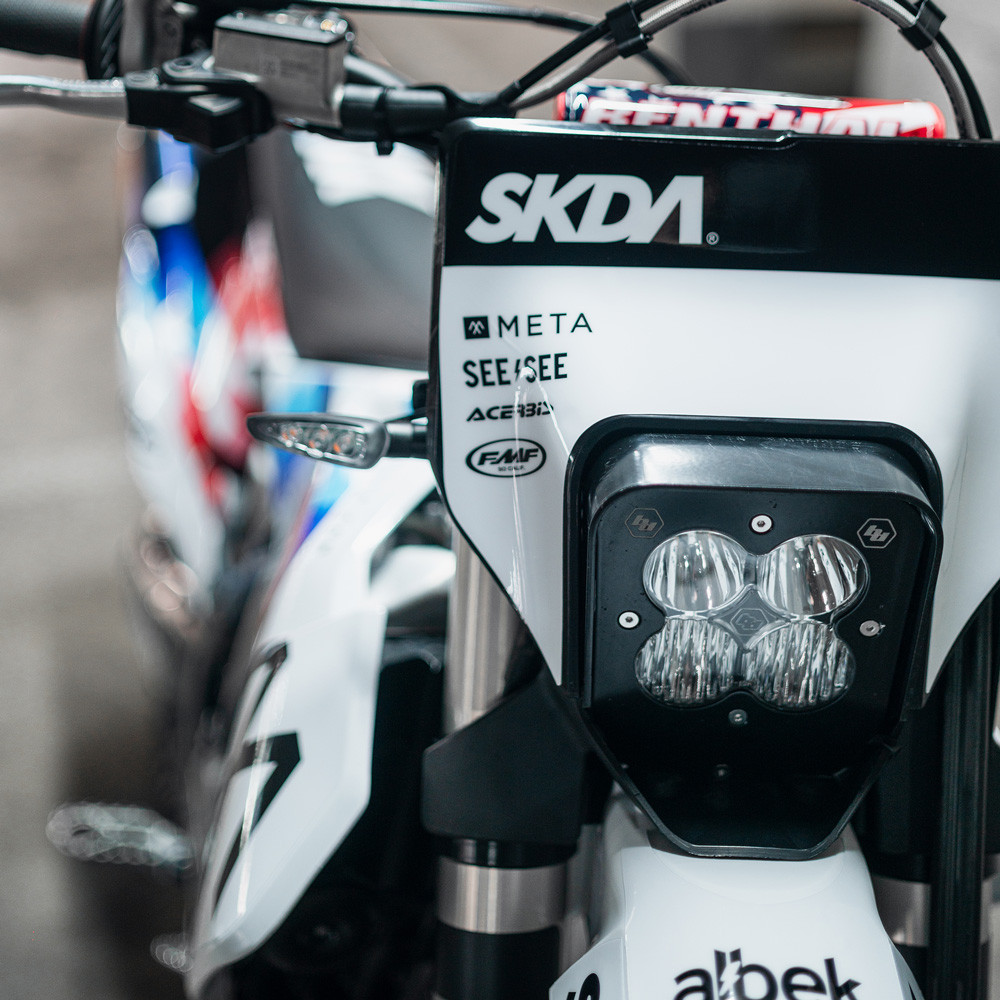

Husqvarna XL80 (D/C) Headlight Kit for models listed below. Raw lumens: 9,022. Amp Draw: 5.5 amps. Wattage: 75.9 watts.
Husqvarna 701 Enduro 2016-2023
Husqvarna 701 Enduro LR 2020-2020
Husqvarna FE250 2017-2023
Husqvarna FE350 2017-2023
Husqvarna FE350S 2020-2023
Husqvarna FE450 2017-2019
Husqvarna FE501 2017-2019
Husqvarna FE501S 2019-2023
Husqvarna TE150i 2020-2023
Husqvarna TE250i 2020-2023
Husqvarna TE300i 2020-2023
Husqvarna TX300i 2020-2023
Husqvarna TX300i Rockstar Edition 2021-2021
The Husqvarna XL80 has been designed for the enthusiast and the racer looking to extend their ride time and annihilate the night. This kit features an extreme amount of beam pattern adjustability. Our High Speed Spot Reflectors provide record setting distance, wide peripheral spread. A seamlessly smooth beam pattern, and offers a 20 percent dimming feature. With the amount of light produced by the XL80 you will have an extreme blend of near field and mid field lighting. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
OEM Headlight shell NOT included. (Does Fit 701 Model). Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
Detailed Specs
INCLUDED WITH KIT:
SKU: 670003
Dimensions
Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450
Specifications
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 9022
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL80 LED Light Pod
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
