Description

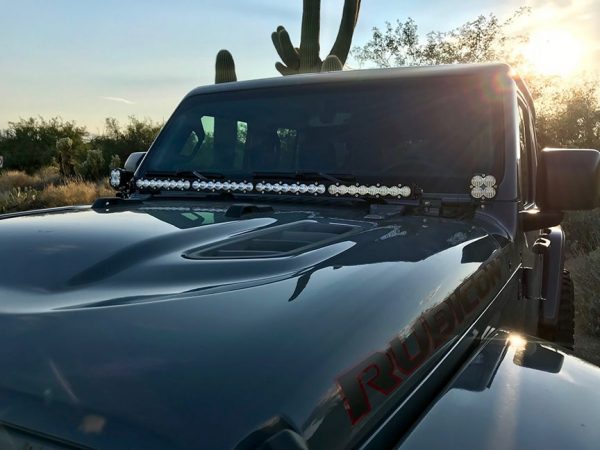

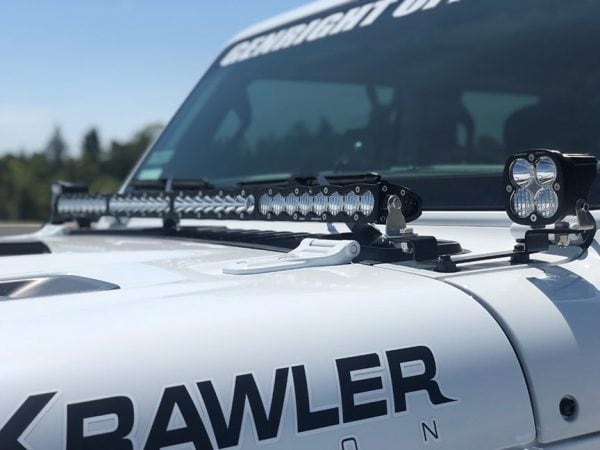

The Baja Designs 447506 Cowl Mount / Ditch LED Light Jeep Wrangler/Gladiator Kit includes specially designed cowl brackets with a 40-inch S8 Driving/Combo LED Light Bar; and 2 Squadron Sport Wide Cornering LED POD Lights. Fits all 2018-2022 Jeep JL Wranglers and 2020-2022 Jeep JT Gladiators.
Kit Includes:
Brackets
Hardware
S8 40 inch Driving Combo Lights
Two Squadron Sport Wide Cornering Lights
Wiring Harnesses
Note: Please allow 3-4 handling time, as most Baja Designs LED kits are built to order.
Manufacturer Info:

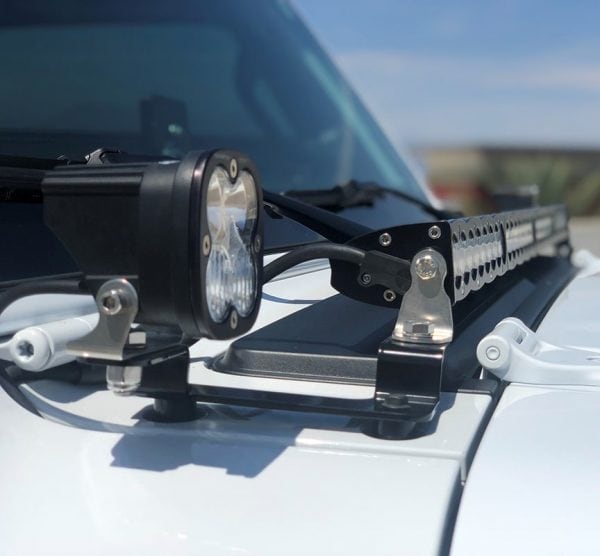

Our Jeep JL Cowl Mounts are the ultimate mounting option for anyone that wants versatility. This bracket can mount one pair Squadron series lights with a 40 inch S8 light bar. These steel mounts are powder coated to last the life of your Jeep.
Squadron Specifications:
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
S8 Specifications:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: 25,312 Utilizing 32 Cree LEDs
Wattage/Amps: 224W / 16.23A
Dimensions: 40” x 3” x 1.6”
Weight: 8.65 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
