Description
Included:
2x 458411 OnX6 Single Rock Guard
2x 298001 LP4 Single Rock Guard
2x 299208 LP IPT Reflector Covers
2x 458117 OnX6 Light Bar Lens Kit
1x 447089 Can-Am OnX6+ LED 10Inch Shock Mount Light Bar Kit
1x 297803 LP4 Pro LED Auxiliary Light Pod Pair
1x 640172 LP6/LP9 Pro 2-Light Max Wiring Harness

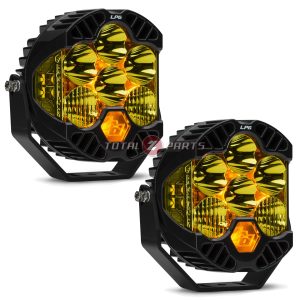

2x 270013 LP6 Pro LED Auxiliary Light Pod
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications for OnX6 Light Bar:
Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
Dimensions: 10″ x 4.29″ x 2.69″
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Specifications for LP4 Lights (per light):
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.83W / 0.35A
Dimensions: 5.1″ Height / 5.1″ Width / 3.2″ Depth
Weight: 2.8lbs
Mating Connector: DT06-4S Deutsch
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Lighting Pattern:
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Please Note: The main included harness has two DT06-4S Deustsch Connectors (1 connector for each light) and controls the main beam on each LP4 via an On/Off switch. LP4 lights only have a high beam mode (NO low beam), and the harness has a two way switch; one position is OFF, the other is ON (high beam mode). The included “Backlit Add-On” wiring kit (bottom right of main product image) includes fuse taps, along with long length wiring which has bullet connectors on each end; this separate “Backlit Add-On” kit is used to power the amber backlight feature separately, and the bullet connectors on the long pieces of wiring are meant to be connected to the bottom left pin on each Deustsch Connector plug (located on the back of each LP4). You can use the included fuse taps to make the amber backlights dependent on a specific vehicle fuse, or you can simply connect the wire to a separate auxiliary switch for manual control of the back-lights.
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, the LP4 will fulfill all your lighting needs.
