Description

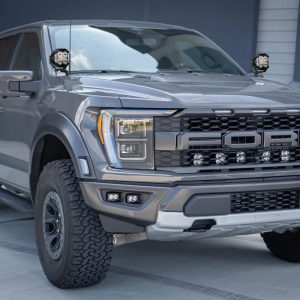

Baja Designs LP4 A-Pillar kit for 2021-Up Ford F-150 Raptor. Each LP4 has an output of 8,857 raw lumens. Each LP4 measures 5 inches wide and 5.2 inches tall.
Kit comes with:
(2x) LP4 Pro LED Lights Driving Combo (Clear)
(2x) A-Pillar Mounting Brackets
(1x) Trigger Switch Harness Lead 640180
All necessary mounting hardware
The Baja Designs LP4 A-Pillar kit for the Ford Raptor 2021-on is a turn-key solution for any enthusiasts wanting performance lighting on their trucks. This kit is perfect for anyone who is burning the midnight oil off-roading, traveling, or working. Packaged with a pair of LP4 Pro LED lights producing 8,857 raw lumens each at 60w along with our patented Integrated Peripheral Technology (IPT) produces a 200-degree spread of usable light. To keep the lights performing at their highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. includes everything that you will need and doesn’t require any modifications to your truck. The wiring harness is designed to work with the up-fitter switches in Ford Raptors. Backed by Limited Lifetime Warranty for the ultimate in purchase protection.
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light)
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included No
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Driving/Combo
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 8857
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.200
Height (in.) 5.100
Length (in.) 5.100
Weight (lbs.) 2.800
