Description

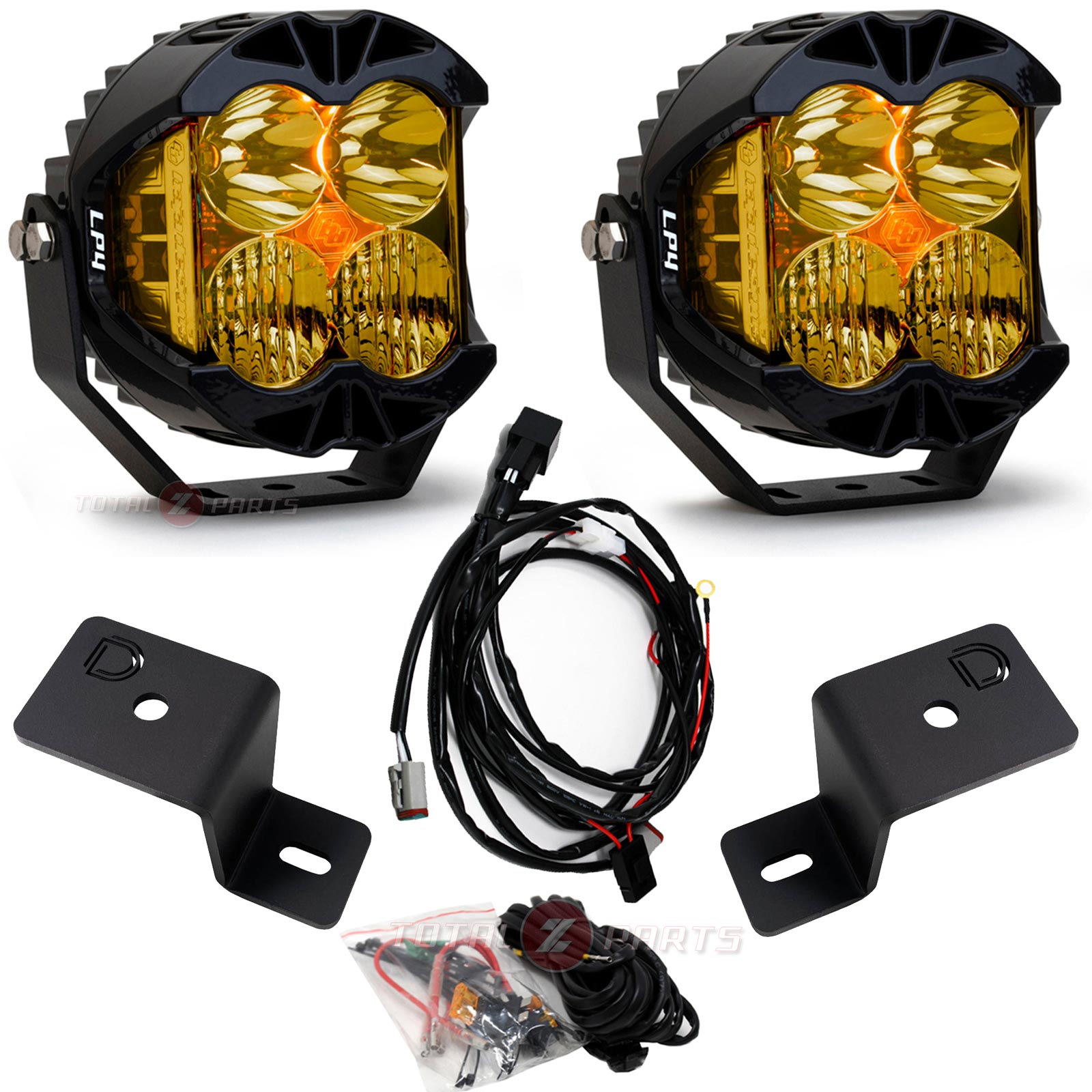

Baja Designs LP4 Pro 5-inch LED pod lights pair (amber driving/combo lens) with KC Hillites ditch light brackets for 2021-2026 Gen 3 Ford F-150, F-150 Raptor, and F-150 Lightning. The included ditch light brackets are made from high-quality, powder coated, thick-gauge stainless steel and easily attach to OE bolt upper fender bolt without any cutting, drilling or modification.
8,857 raw lumens per LP4 light. The LP4 also features an independently controllable amber backlight.
**DISCLAIMER: Ditch brackets may come into contact with the vehicle’s trim, potentially causing slight creasing. While minor trimming of the plastic trim can help prevent this, it is not required.
PLEASE NOTE: the photos of the F-150 with the ditch light brackets mounted are showing a different model of lights; the photos of the truck are to demonstrate the mounted position of the included ditch brackets. This kit includes a pair of Baja Designs LP4 Pro lights.
PARTS INCLUDED
(2) LP4 Pro LED Light
(1) On/Off Wiring Harness (supports 2 LP4 lights)
(1) Backlit Add-On Wiring (for powering amber backlight)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) Diode Dynamics Black Powder-Coated Stainless Steel Ditch Light Brackets
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Please Note: The main included harness has two DT06-4S Deustsch Connectors (1 connector for each light) and controls the main beam on each LP4 via an On/Off switch. LP4 lights only have a high beam mode (NO low beam), and the harness has a two way switch; one position is OFF, the other is ON (high beam mode). The included “Backlit Add-On” wiring kit (bottom right of main product image) includes fuse taps, along with a long length wiring that has bullet connectors on each end; this separate kit is used to power the blue backlight feature separately, and the bullet connectors on the long pieces of wiring are meant to be connected to the bottom left pin on each Deustsch Connector plug. You can use the included fuse taps to make the LP4’s backlights dependent on a specific vehicle fuse, or you can simply connect the wire to a separate auxiliary switch for manual control of the backlights.
The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot. To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks – drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention. This LP4 Pro LED Light pair is backed by our Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
Specs (per light):
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8857
Description Driving/Combo; Pair
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
