Description
Baja Designs LP4 Pro 5-inch LED pod lights (clear driving/combo lens, amber backlight) with KC Hillites ditch light brackets for 2018-2026 Jeep Wrangler JL/4XE and 2020-2026 Jeep Gladiator JT. Package also includes pair of LP6 Pro (clear driving/combo lens, amber backlight) with upfitter harness (for connecting to your own auxiliary switches). The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
8,857 raw lumens per LP4 light. The LP4 also features an independently controllable amber backlight.
PLEASE NOTE: The included ditch brackets do not fit Jeep Gladiator Mojave, 392, or Sand Runner Editions. We carry separate brackets for those models and have those kits listed separately.
PARTS INCLUDED
(2) LP4 Pro LED Light (with amber backlight function)
(2) LP4 upfitter wiring harnesses (for connecting to your own switches)

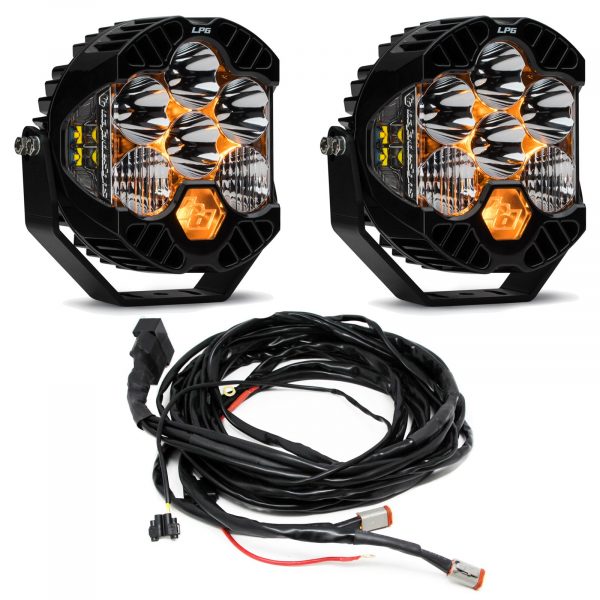

(2) LP6 LED Light Driving/Combo Pattern (with amber backlight function)
(1) LP6 Upfitter Wiring Harness (supports 2 lights)
(1) On/Off Wiring Harness (supports 2 LP4 lights)
(1) LP4 Backlit Add-On Wiring (for powering amber backlight)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) 2018-Current Jeep Wrangler JL/4xe & Gladiator JT A-Pillar/Cowl Brackets
(2) Aluminum Spacers
(2) M6-1.0 X 55mm Button Head Cap Screws
(2) M6 Flat Washers
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Please Note: The LP4 lights will include 2 upfitter harnesses for connecting to your own switches — for added versaility, we also include the switch harness, which has two DT06-4S Deustsch Connectors (1 connector for each light) and controls the main beam on each LP4 via an On/Off switch. LP4 lights only have a high beam mode (NO low beam), and the harness has a two way switch; one position is OFF, the other is ON (high beam mode). The included “Backlit Add-On” wiring kit (bottom right of main product image) includes fuse taps, along with a long length wiring that has bullet connectors on each end; this separate kit is used to power the blue backlight feature separately, and the bullet connectors on the long pieces of wiring are meant to be connected to the bottom left pin on each Deustsch Connector plug. You can use the included fuse taps to make the blue backlights dependent on a specific vehicle fuse, or you can simply connect the wire to a separate auxiliary switch for manual control of the back-lights.
The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot. To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks – drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention. This LP4 Pro LED Light pair is backed by our 30 Day Satisfaction Gaurantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Mount the compact yet powerful LP6 LED light’s to the Rubicon Steel Front Bumper on 2018-2025 Jeep JL Wranglers or 2020-2025 Jeep Gladiators. This kit version is for Jeep’s equipped with a toggle switch. Even when they’re not running, the LP4 will look sleek on your Jeep’s Rubicon front bumper. With their heavy duty aluminum housing and thick, polycarbonate lenses, the Baja Designs LP4 adds some aesthetic flare to your vehicle, while also giving it beastly lighting power for dark environments that require more than just ordinary headlights or fog lights.
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
This lighting and wiring setup has been tested on the Jeep JL / JT with the steel bumper to take the guess work out of installation! The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
Specs (per LP4 light):
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8857
Description Driving/Combo; Pair
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Specifications (Per LP6 Light):
Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
Forward Projecting Wattage/Amps: 90W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.14W / 0.3A
Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth
Weight: 4.2lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Application:
Jeep JL Rubicon W/ steel Bumper
Jeep JT Rubicon W/ steel Bumper
