Mount the compact yet powerful LP4 LED light to the front bumper, hood, or roof of your truck, SUV, or ATV. Even when they’re not running, the LP4 will look sleek on your off-road vehicle. With their heavy duty aluminum housing and thick, polycarbonate lenses, the Baja Designs LP4 adds some aesthetic flare to your vehicle, while also giving it beastly lighting power for dark environments that require more than just ordinary headlights or fog lights.

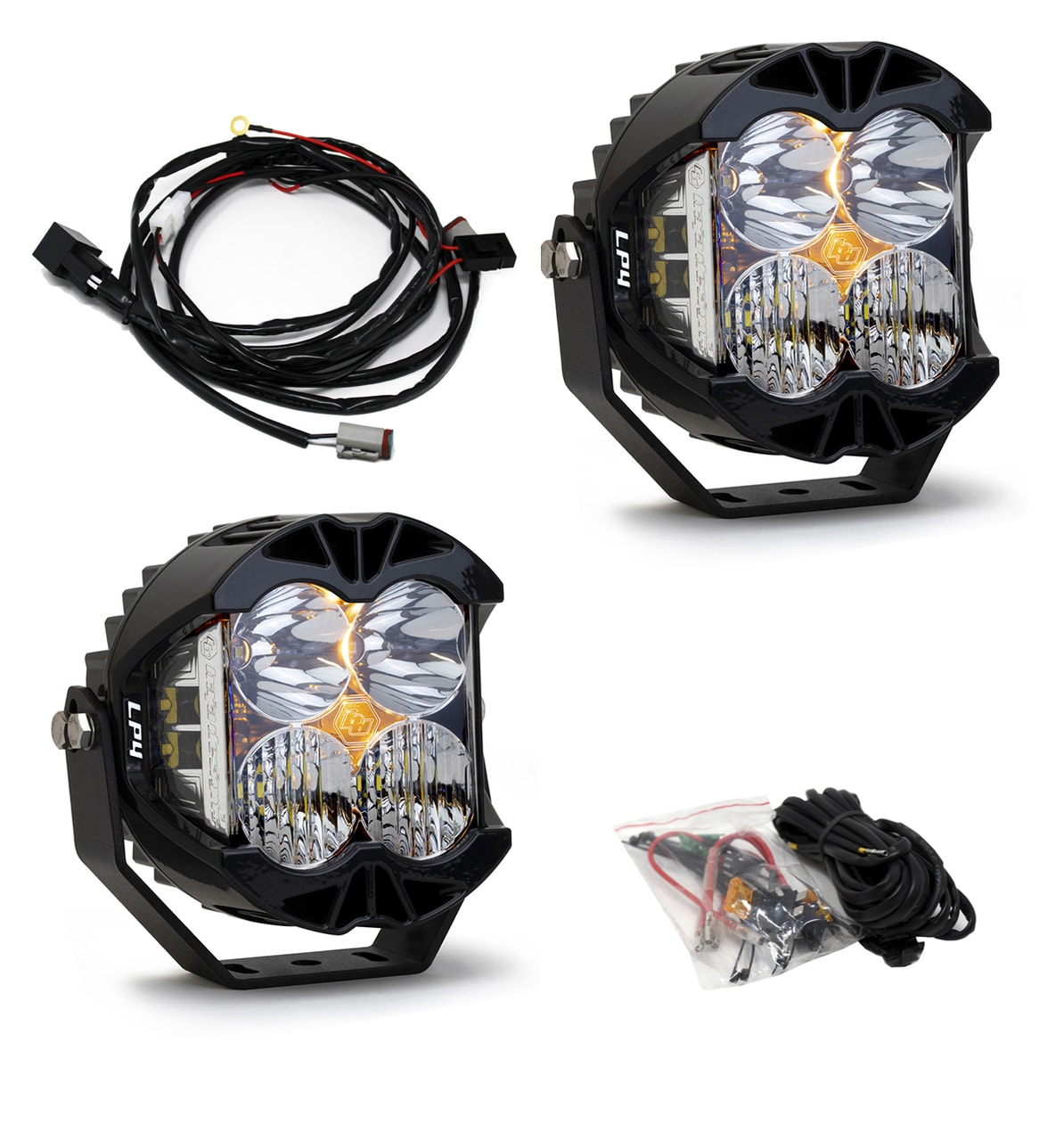

(2) LP4 LED Light
(1) On/Off Wiring Harness (supports 2 LP4 lights)
(1) Backlit Add-On Wiring (for powering amber backlight)
Please Note: The main included harness has two DT06-4S Deustsch Connectors (1 connector for each light) and controls the main beam on each LP4 via an On/Off switch. LP4 lights only have a high beam mode (NO low beam), and the harness has a two way switch; one position is OFF, the other is ON (high beam mode). The included “Backlit Add-On” wiring kit (bottom right of main product image) includes fuse taps, along with a long length wiring that has bullet connectors on each end; this separate kit is used to power the amber backlight feature separately, and the bullet connectors on the long pieces of wiring are meant to be connected to the bottom left pin on each Deustsch Connector plug. You can use the included fuse taps to make the amber backlights dependent on a specific vehicle fuse, or you can simply connect the wire to a separate auxiliary switch for manual control of the back-lights.
The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200° spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, the LP4 will fulfill all your lighting needs.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.83W / 0.35A
Dimensions: 5.1″ Height / 5.1″ Width / 3.2″ Depth
Mating Connector: DT06-4S Deutsch
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
