Description

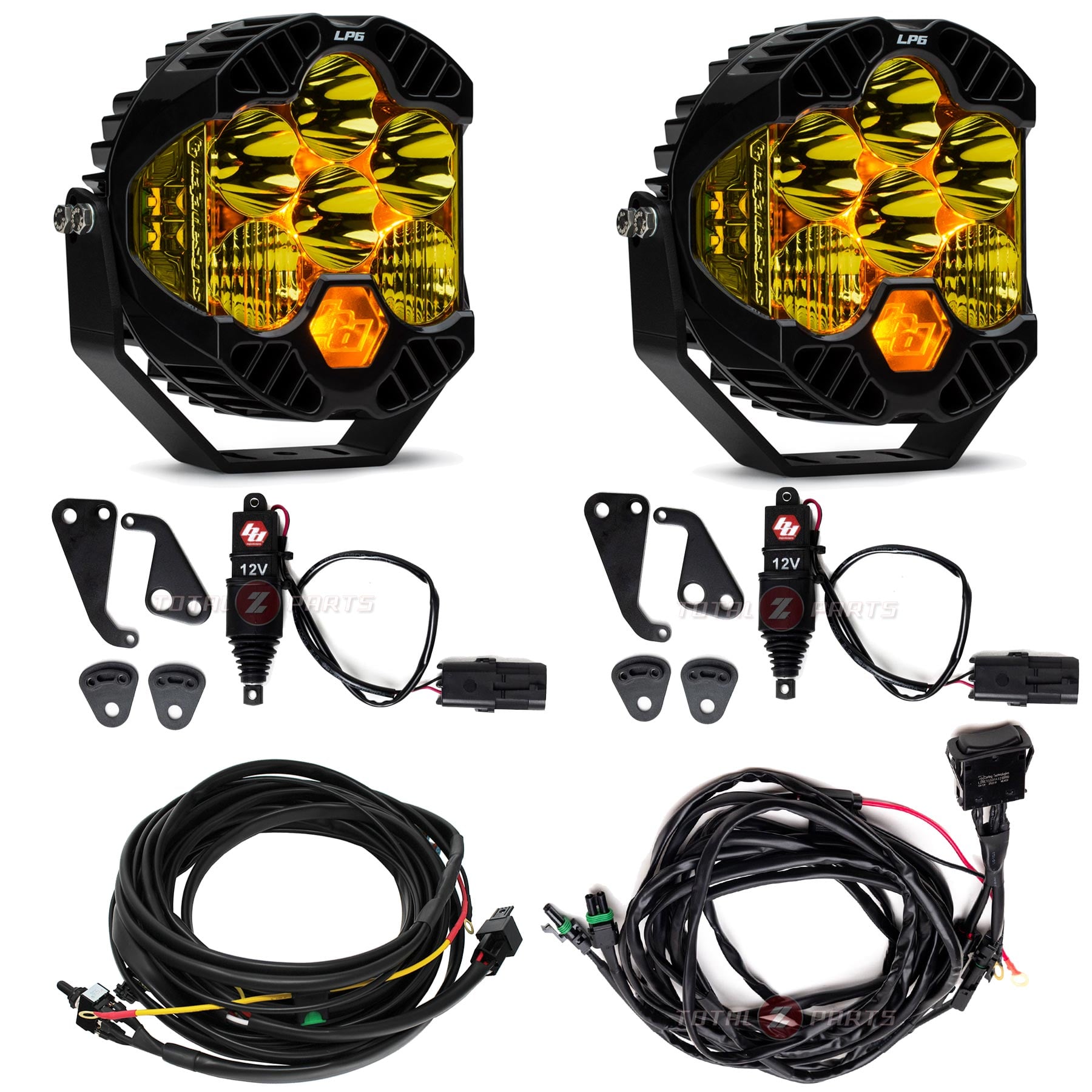

Pair of LP6 Pro Amber Driving/Combo LED Lights, with Reflex actuator motor kit for on-the-fly control of light pitch angle. Amber main beam with amber backlight. Includes upfitter wiring harness and surface mount brackets with mounting hardware.
Kit Includes:
(2x) LP6 Pro Amber Driving/Combo (amber backlight)
(2x) Surface Mount Brackets w/Mounting Hardware
(1x) Upfitter wiring harness (all open leads for connecting to your own switches)
(1x) Reflex Actuator Rocker Switch Harness (built in actuator control switch)
(2x) Reflex Actuator Kit (0.14A/2.0W at 13.8V per actuator)
PLEASE NOTE: The included wiring harness has open leads and is designed to connect to your own switches or switching system such as sPOD, Switch Pros, Auxbeam etc.. If you want the version of the harness with a built-in toggle switch for controlling the low beam & high beam, please let us know when you order; there is no difference in price between the two wiring harness versions.
Reflex Actuator Features:
Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
Reflex Actuator Harness, Single/Pair Light Configuration:
The Reflex Light Actuator rocker switch universal harness allows users the ability to control the up and down movement of the actuator at the touch of a button. Enthusiasts can select from a single harness or a harness pair that will power two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups. NOTE: Actuator linking harnesses are power-only between individual light actuators. Lights will require separate harness for power.
LP6 Pro Lights:
The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.
Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs:
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Driving/Combo
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 11225
Description Driving/Combo
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
Dimensions:
Depth (in.) 3.200
Height (in.) 6.500
Length (in.) 6.500
Weight (lbs.) 4.200
