Description

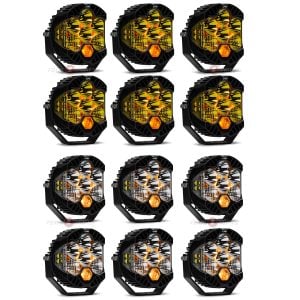

Set of 12 Baja Designs truck / motorcycle / UTV / ATV LP6. Quantity 6 in Clear Driving/Combo + Quantity 6 in Amber Driving/Combo. These high powered lights feature a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light. 11,225 raw lumens per light. Wiring Harness Not Included. Harness Sold Separately.
The LP6 is popular as a headlight for Harley Davidson motorcycles, including the Road Glide, Road King, and Street Glide bikes.
These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 raw lumens and a 200° spread of useable LED light.
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 11225
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Type LED
Secondary Lighting Technology Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
819314028606
