Baja Designs® LP6 Pro™ LED White Spot Lights Pair Kit w/Harness & Rock Guards


Free Shipping
Best Price Guarantee

  • Includes Black Lens Covers
  • Wiring Harness w/3 Position Switch


In Stock

Est. on or before Mon 05/27

SKU: 270001-640172-278001 Categories: | Tags: ,

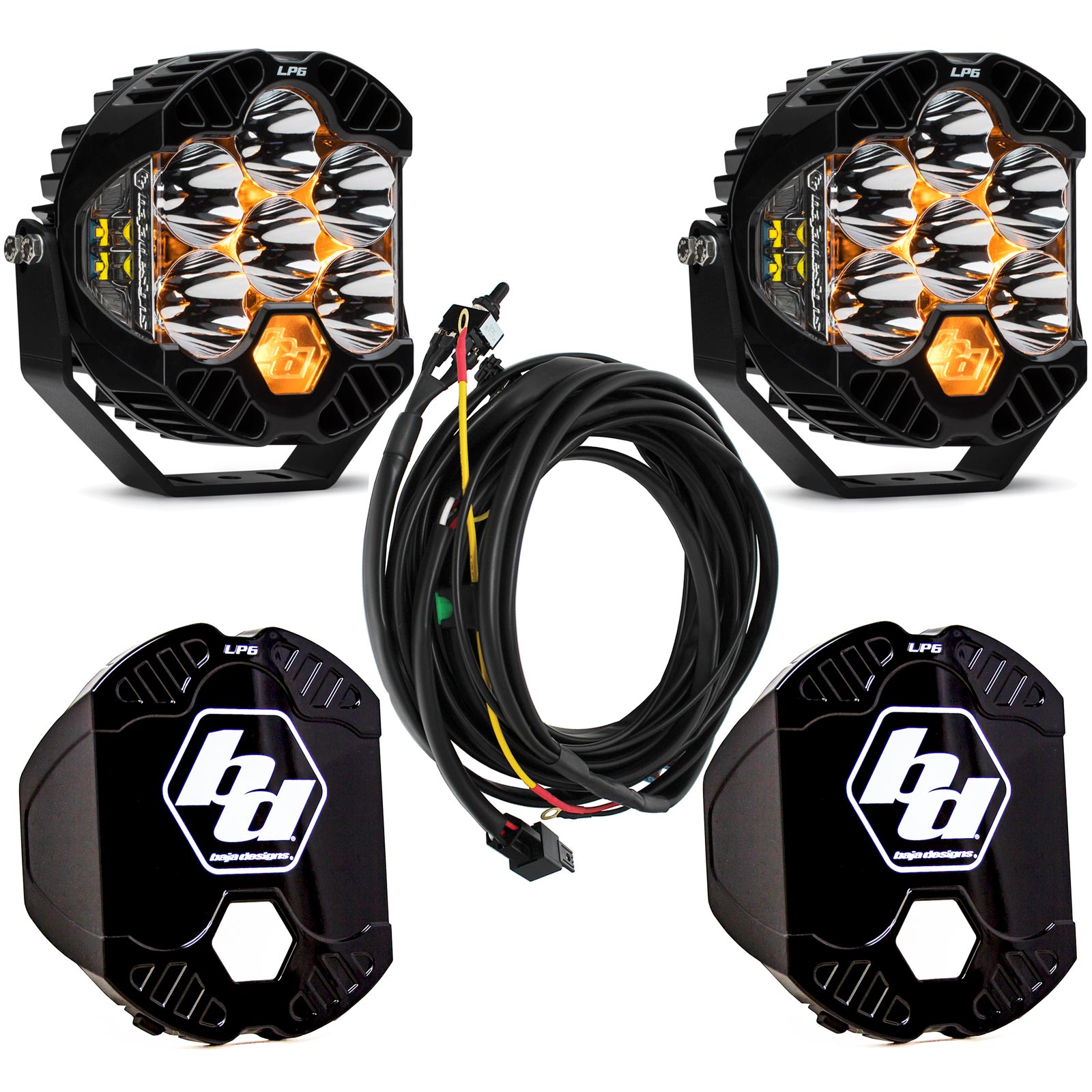

Baja Designs LP6 Pro LED 270001 truck / motorcycle / UTV / ATV headlights with clear/white lenses in spot beam pattern. Includes 2 black rock guards/lens covers, and a wire harness with built in switch. The included snap on light covers are made to protect your LP6 lenses from rocks and other debris when not in use. Each LP6 Auxiliary light features a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light & 10,300 lumens of brightness (1 pair of lights produces 20,600 lumens in total). Lighting Modes: Amber day-time running light, low power, high power.

The LP6 is popular as a headlight for Harley Davidson motorcycles, including the Road Glide, Road King, and Street Glide bikes.

These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.

Package Includes:
2 x LP6 Pro Lights (Clear Lens, Spot Beam Pattern)

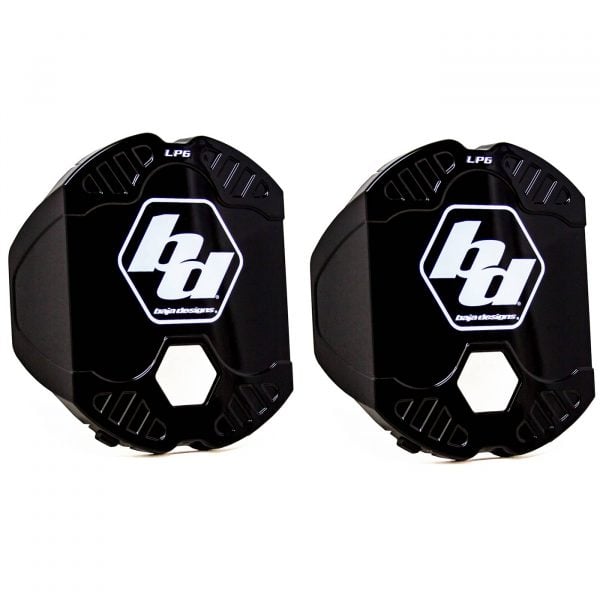

2 x Black LP6 Rock Guard Lens Covers
2 x Mounting Brackets with Hardware
1 x Wiring Harness (2 Light Max)

Wiring Harness Features:
Wiring harness with plug and play Deutsch style connectors
Built in splitter to power two LP9 or LP6 Lights
Large automotive style ring terminals
3-position, 30amp DC Rated, DPDT, On-Off-On Switch to operate high and low beam independently
Extra wire lead with splice connector to operate amber daytime running light (DRL)
20A/40A Relay & 30 amp inline fuse
12 foot length for battery to instrument cluster
15 foot length for instrument cluster to light mounting location

Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.

With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.

Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
Forward Projecting Wattage/Amps: 90W / 6.5A

IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A

Backlight Wattage/Amps: 4.14W / 0.3A
Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth
Weight: 4.2lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

640172 harness
