Description

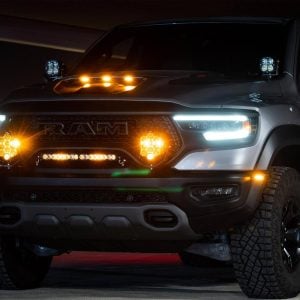

The new, ultra bright Baja Designs LP9 Pro Front Bumper Lights Kit for 2019-2023 Ram 1500 Rebel, and 2021-2023 Ram 1500 TRX is a premium upgrade for your Ram truck. This kit features two ultra powerful LP9 Pros, producing a total brightness of over 22,000 lumens. Each LP9 also features an amber backlight/daytime running light feature that can be controlled independently.
Note: This kit includes “Upfitter” harness which does not have built in switches and is meant for wiring to your own existing auxiliary switches, or a switching system such as sPOD.
Manufacturer’s Description:
The Ram 1500 TRX LP9 Bumper Kit gives you all the off-road performance and a cool look with our amber back-light feature for your truck. This kit utilizes two LP9 Pros in a clear Driving Combo lens pattern, giving you a total of over 22,000 lumens. This kit also includes mounting brackets and upfitter switched to utilize your OEM upfitter switches.
Detailed Specs:
INCLUDED WITH KIT:
SKU: 320003
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12547
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
