Description
Pair of LP9 Pro Clear Driving/Combo LED Lights, with Reflex actuator motor kit for on-the-fly control of your LP9’s pitch angle. White beam with amber backlight. Includes upfitter wiring harness (open leads for connecting to your own switches) and surface mount brackets with mounting hardware. Each LP9 housing is approximately 8 inches in diameter.
12,547 raw lumens per LP9 Pro light.

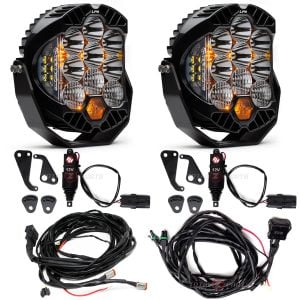

Kit Includes:
(2x) LP9 Pro Clear Driving/Combo (amber backlight)
(2x) Surface Mount Brackets w/Mounting Hardware

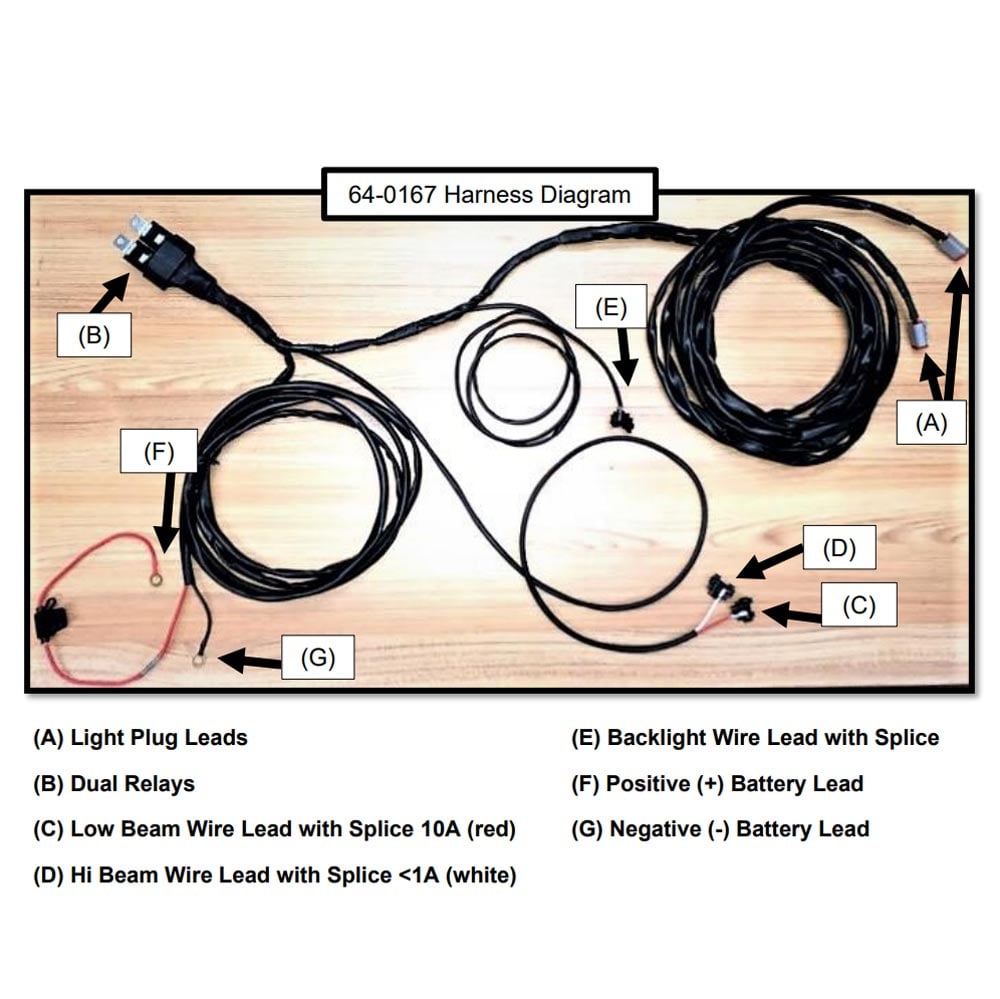

(1x) Upfitter Lockout Wiring Harness (w/open leads for connecting to your own switches or switching system)
(1x) Reflex Actuator Rocker Switch Harness (built in actuator control switch)
(2x) Reflex Actuator Kit (0.14A/2.0W at 13.8V per actuator)

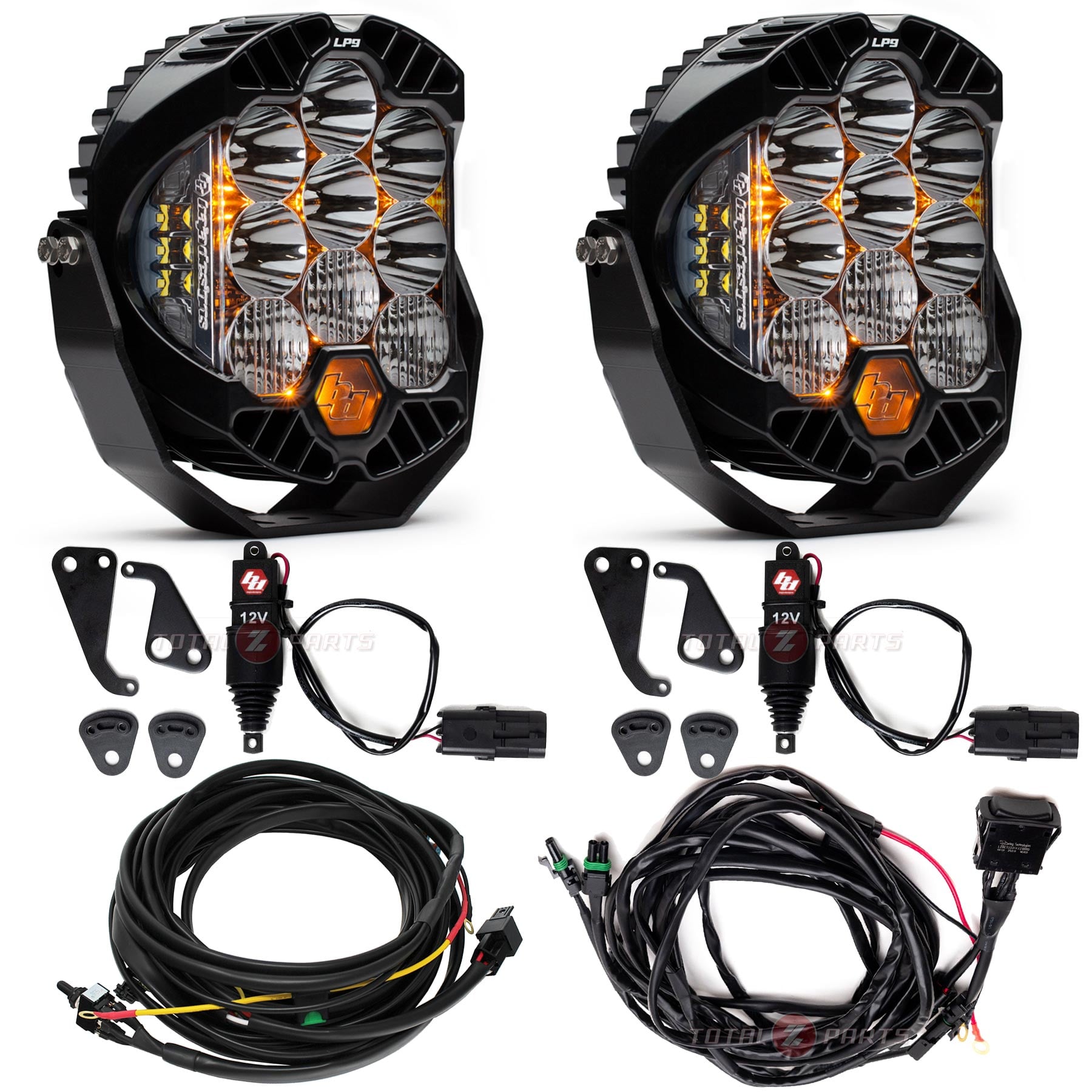

NOTE: The included “upfitter” wiring harness has open leads and is designed to connect to your own switches or switching system such as sPOD, Switch Pros, Auxbeam etc.. We also carry a toggle switch version of the wiring harness, which has a built-in toggle switch for controlling the low beam & high beam, and a separate yellow wire for controlling the backlight feature with a separate switch or fuse. If you prefer the toggle switch version instead of the upfitter, just let us know when you order.

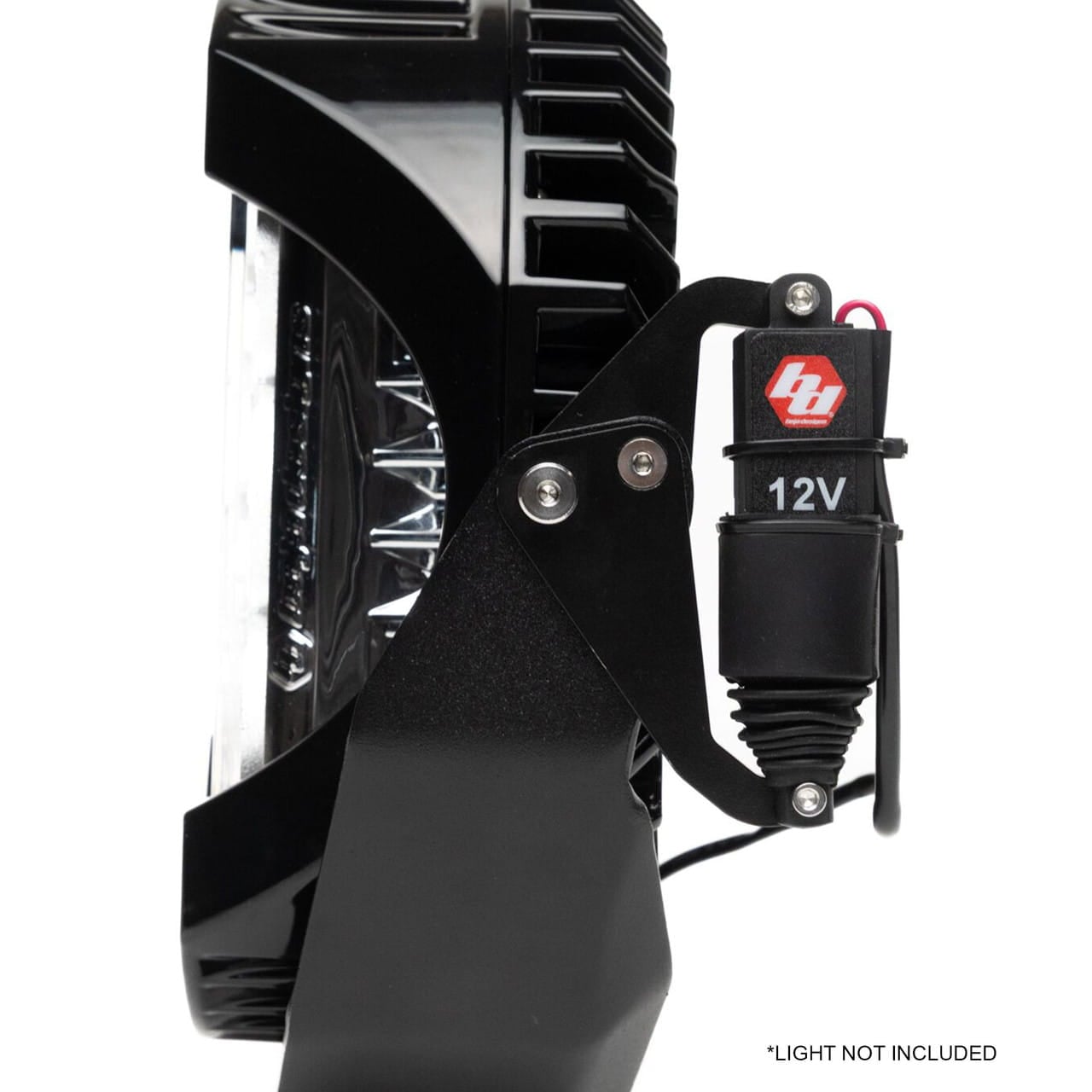

Reflex Actuator Features:

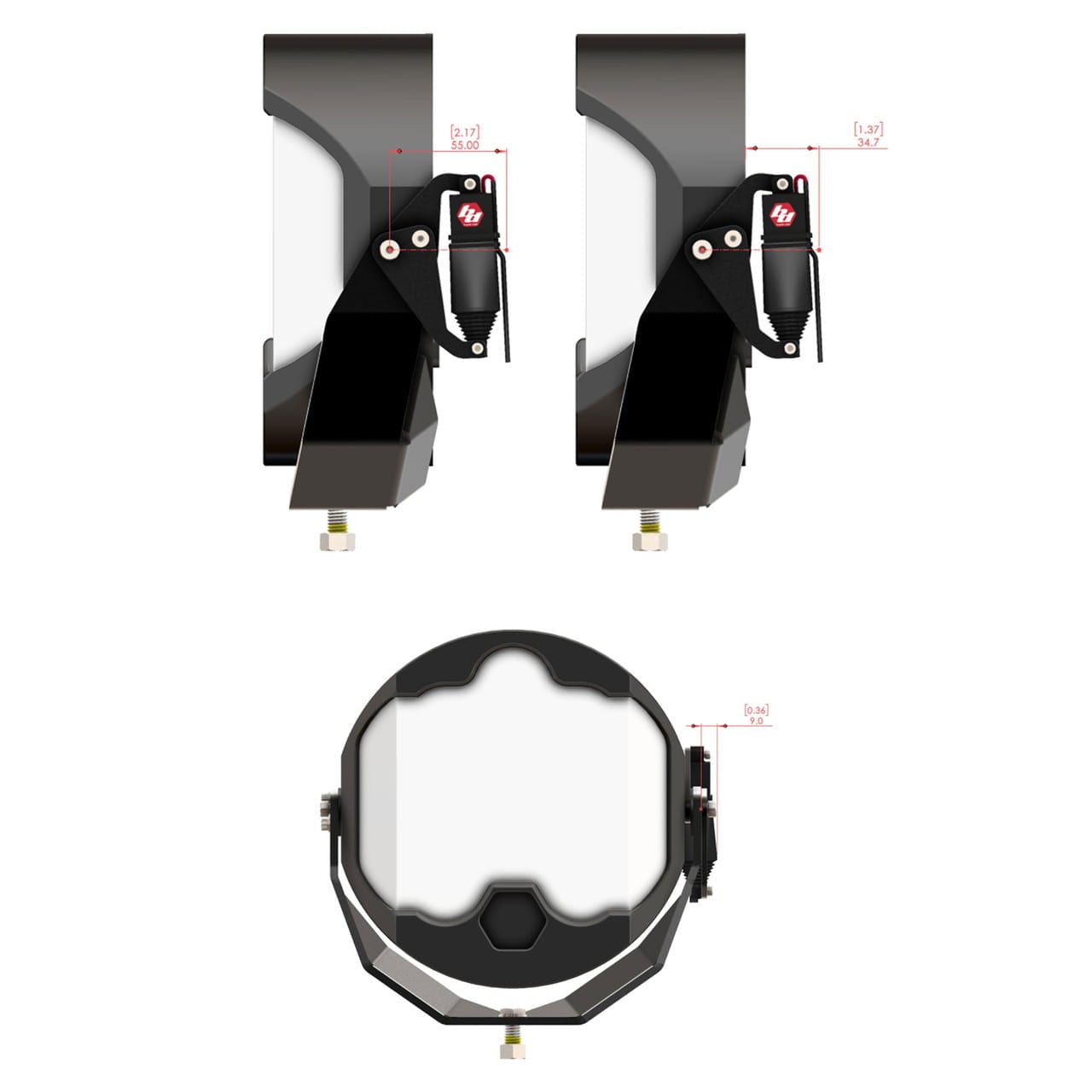

Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
Reflex Actuator Harness, Single/Pair Light Configuration:
The Reflex Light Actuator rocker switch universal harness allows users the ability to control the up and down movement of the actuator at the touch of a button. Enthusiasts can select from a single harness or a harness pair that will power two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups. NOTE: Actuator linking harnesses are power-only between individual light actuators. Lights will require separate harness for power.
LP9 Pro Lights:

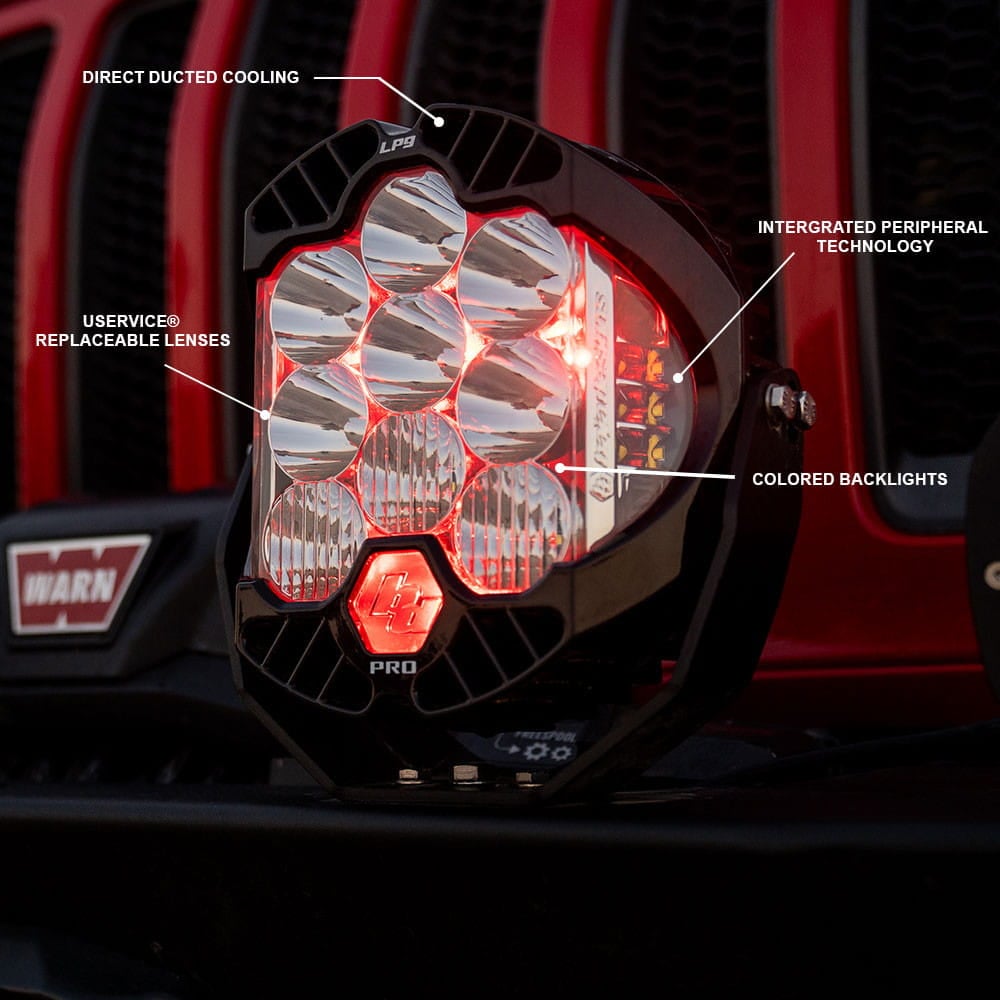

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using our proprietary Direct Ducted Cooling (DDC) technology, which allows air to travel from the front of the housing and over the rear heat sinks drastically improving cooling capacity and performance. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

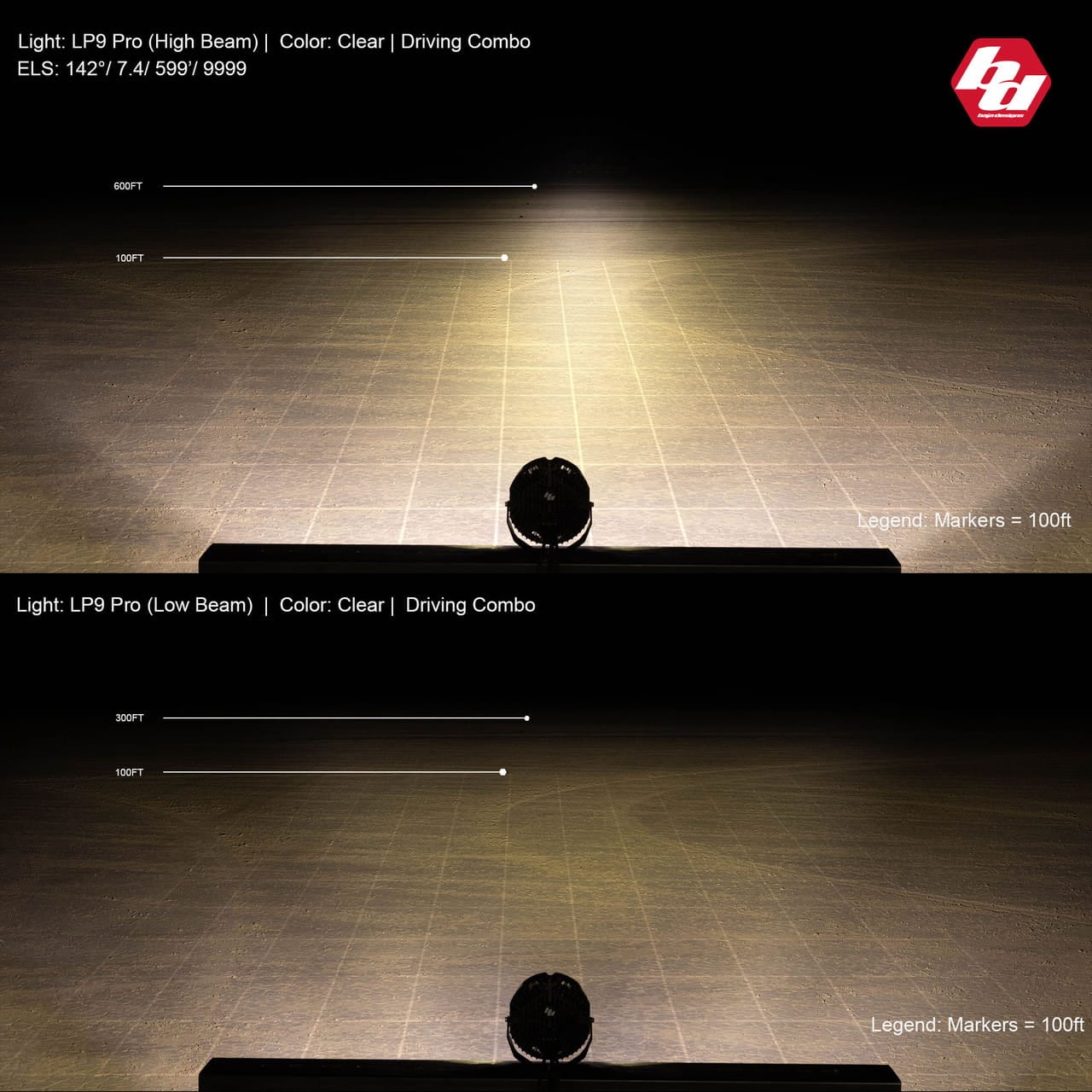

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs (per light):
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Driving/Combo
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 12547
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
