Description

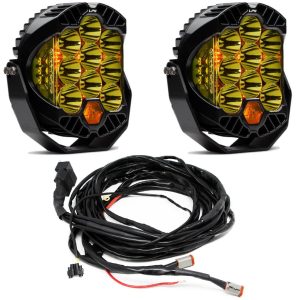

Kit includes 2 x LP9 Pro Amber Spot Pattern lights with wiring harness. Each light has a brightness of 12,547 Forward Projecting Lumens, Utilizing 9 LEDs.
The included upfitter harness was designed with intention of being used in conjunction with power modules such as sPOD, Switch-Pros and factory upfitter systems. This harness will ensure that you don’t run power to both the high and low circuits at the same time when wiring your LP series lights. If you’re looking to take the guess work out of wiring your LP series lights this is the harness for you.
Spot Beam Pattern:
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds, and see safely down the road or trail.
Manufacturer’s Info:
A design that was inspired by Baja Designs’ legendary 8″ La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 12,547 Lumens at 9 Amps, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens at 21 watts per light. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps: 105W / 7.6A
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12547
Description Spot; Amber
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
