Encased in a distinctive hard-anodized, black powder-coated aluminum housing, and fitted with a hard-coated polycarbonate lens, the LP9 Pro is the ultimate lighting option for those in search of the most powerful and advanced off-road LED light on the market today. Utilizing 9 LEDs, each LP9 produces a blistering 11,025 lumens in high beam mode , and 2,240 lumens in low beam mode. The low beams produce a 42-degree optic spread while the high beams add a 6-degree spot beam, giving you an ideal mixture of peripheral and forward illumination for most driving conditions.
With its impressive IP69K rating, the LP9 is proven to withstand the harsh elements that come along with off-road racing or late-night rock crawling. Whether you’re driving through rain, dust, mud, sleet, or snow, you can be certain the LP9 will not fail to illuminate your path. Best of all, the LP9 Pro offers a unique and striking appearance that enhances the look of any truck or off-road vehicle. You can even make use of the LP9 in broad daylight by taking advantage of the built in daytime running light feature, which elegantly engages the amber backlight, and puts an amber glow behind the Baja Designs logo at the bottom of the lens.

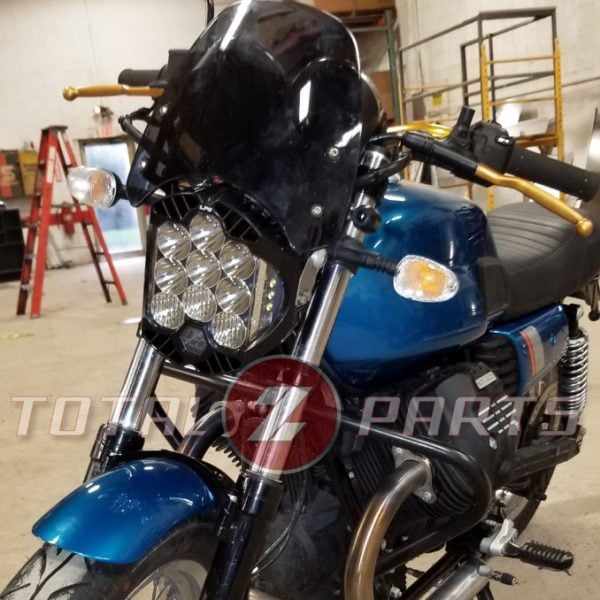

LP9 Pro Driving/Combo Pattern light. Brightness of 11,025 Forward Projecting Lumens, Utilizing 9 LEDs. Ideal for mounting on front bumper & roof of your truck, SUV, ATV, UTV or other off road vehicle. This light also works great as a high powered motorcycle headlight.
Driving/Combo Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
A design that was inspired by Baja Designs’ legendary 8″ La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

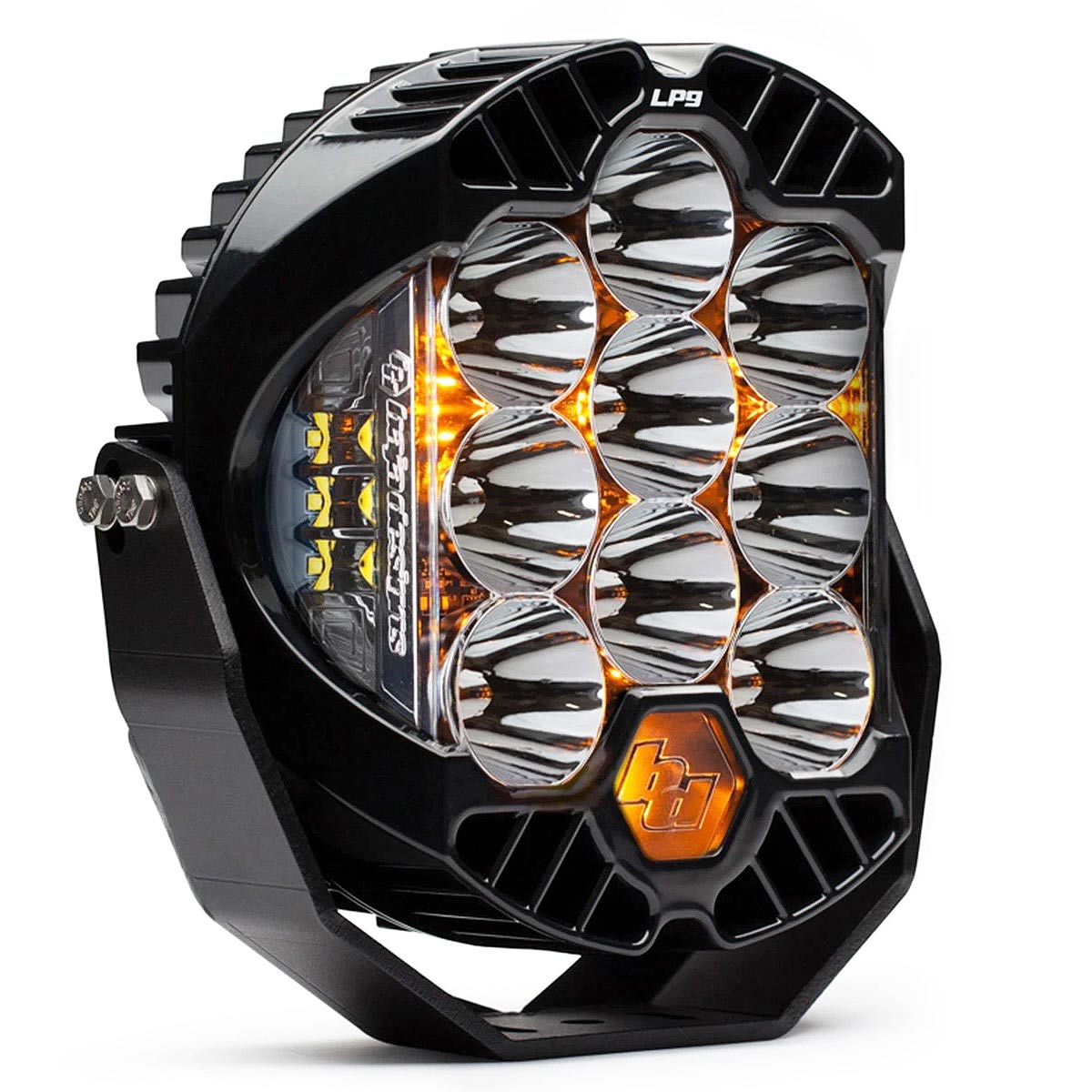

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps: 105W / 7.6A
IPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A
Dimensions: 8″ Diameter/ 3.25″ Depth
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
