Description

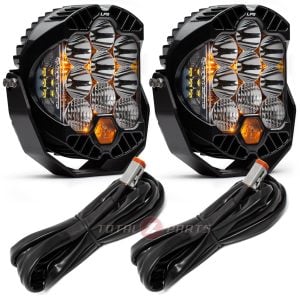

Kit includes 2 x LP9 Pro Clear Driving/Combo Pattern lights with amber backlight, 2 controller module harnesses (open leads, for wiring to your own switches – does not include relay or switch), and 2 black surface mount brackets with mounting hardware. Each light has a brightness of 12,547 raw lumens, Utilizing 9 LED diodes.
Please Note: the included controller module wiring harnesses have all open leads, and are designed to connect to your own switches or switching system. They do not include relays or switches.
A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using our proprietary Direct Ducted Cooling (DDC) technology, which allows air to travel from the front of the housing and over the rear heat sinks drastically improving cooling capacity and performance. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.
The addition of red, blue, or green backlight options alongside our original amber on the LP9 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Driving/Combo Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Manufacturer’s Info:
A design that was inspired by Baja Designs’ legendary 8″ La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Pro LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 124.200
Wiring Harness Included No
Amperage Rating (A) 9
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Driving/Combo
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 12547
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
