Description

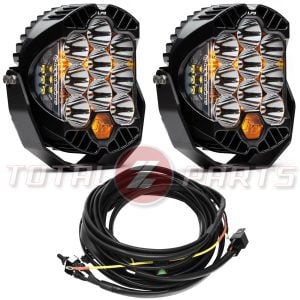

Baja Designs LP9 Racer Edition High Speed Spot LED Lights Pair with Clear Lens & toggle switch harness (3 position toggle for low beam/off/high-beam, and open yellow lead for amber backlight feature). Includes brackets and mounting hardware. Encased in a distinctive hard-anodized, black powder-coated aluminum housing, and fitted with a hard-coated polycarbonate lens, the LP9 Racer Edition is the ultimate lighting option for those in search of the most powerful and advanced off-road LED light on the market today. Utilizing 9 LEDs, each LP9 Racer Edition produces a blistering 11,025 lumens at 105 watts.
With its impressive IP69K rating, the LP9 is proven to withstand the harsh elements that come along with off-road racing or late-night rock crawling. Whether you’re driving through rain, dust, mud, sleet, or snow, you can be certain the LP9 will not fail to illuminate your path. Best of all, the LP9 Pro offers a unique and striking appearance that enhances the look of any truck or off-road vehicle. You can even make use of the LP9 in broad daylight by taking advantage of the built in daytime running light feature, which elegantly engages the amber backlight, and puts an amber glow behind the Baja Designs logo at the bottom of the lens.
Package Includes:
2 x LP9 Racer Edition Lights (Clear Lens, High Speed Spot Beam Pattern)
2 x Mounting Brackets with Hardware
1 x Toggle Switch Harness (2 Light Max)
Beam Pattern:
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Manufacturer’s Info:
A design that was inspired by Baja Designs’ legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Technical Specifications:
Dimensions
Depth (in.) 3.250
Height (in.) 8
Length (in.) 8
Weight (lbs.) 6.500
Specifications
Amperage Rating (A) 9.600
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.200
Backlight Wattage (W) 2.800
Beam Pattern Racer Edition Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 8374
Description Racer Edition Spot; Clear
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 9
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP9 Racer Edition LED Light Pod
Secondary Amperage Rating (A) 1.520
Secondary Brightness (Lumens) 2302
Secondary Light Quantity 6 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 21
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 132.480
Wiring Harness Included No
Standards & Compliance
Patent No. 5,504,603
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
