Description
Baja Designs 451013 OnX6+ 10-inch Amber Driving/Combo LED light bar with mounting brackets and hardware (wiring harness sold separately). The popular 10-inch OnX6+ is a versatile and powerful lighting solution that is frequently mounted on truck & SUV front bumpers, Can-Am, and many other off-road vehicles. At 10,817 lumens, you won’t be disappointed with the output of this LED light bar.
Includes:
· OnX6+ 10” LED Light Bar (Amber, Driving/Combo)
· Mounting Brackets
Description:
At an impressive 10,817 lumens, the brightest just got up to 69% brighter than our previous generation. The OnX6 + LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 + LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 451013

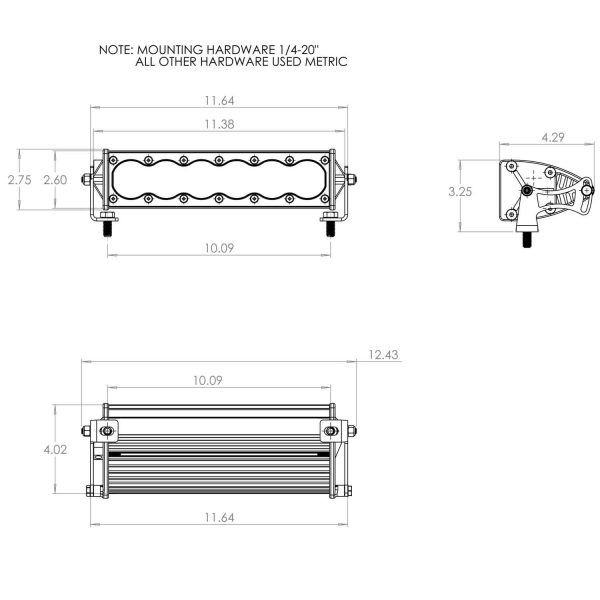

Dimensions
Depth (in.) 4.290
Height (in.) 2.690
Length (in.) 10
Weight (lbs.) 4.250
Specifications
Amperage Rating (A) 7.700
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 10,817 (High); 9,230 (Low)
Description Straight; Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 6
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 10 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 106.260
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
