Description

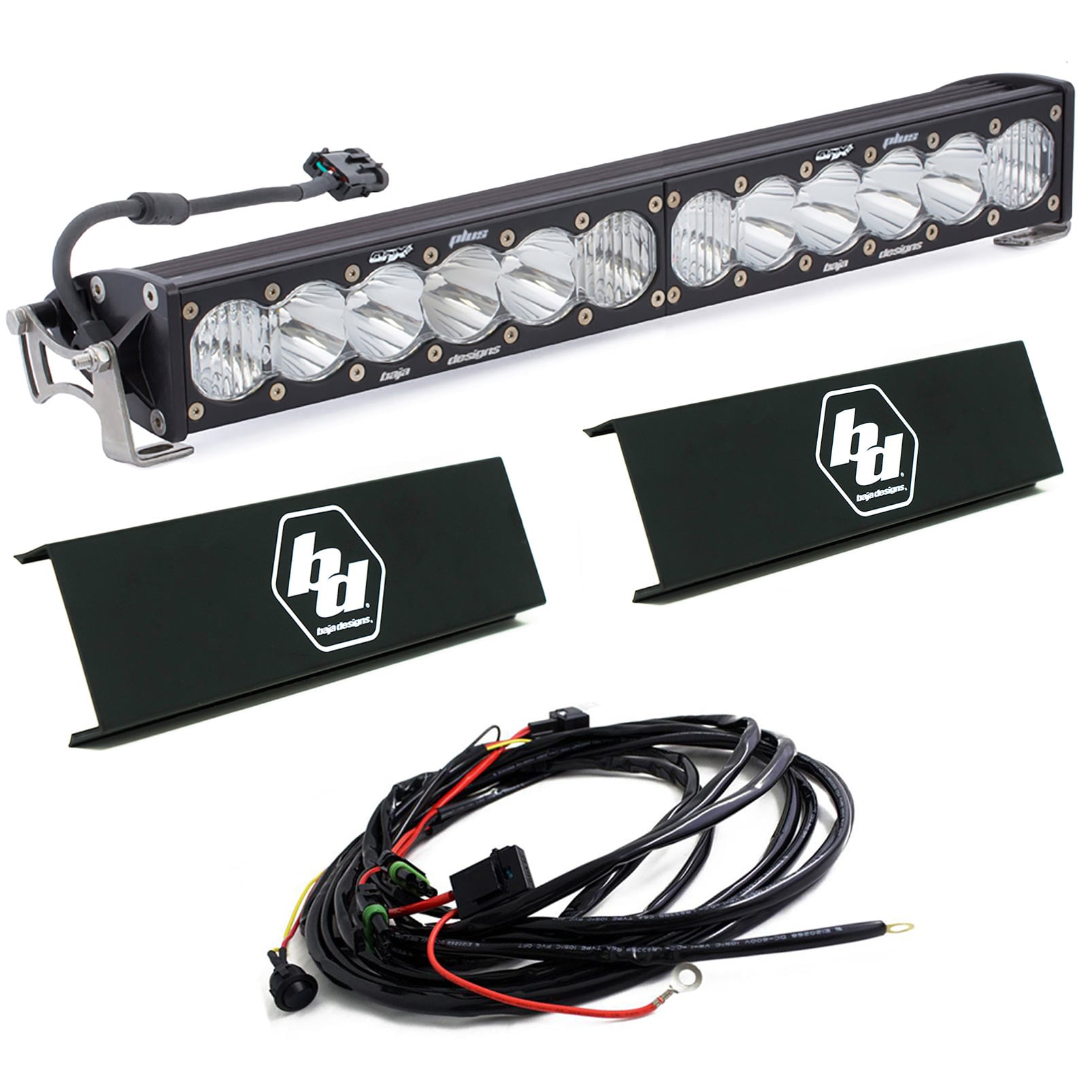

Baja Designs 452003 OnX6+ 20-inch LED light bar with wiring harness (on/off modes), rock guard/lens covers, mounting brackets and hardware. The popular 20-inch OnX6+ is a versatile and powerful lighting solution that is frequently mounted on truck & SUV front bumpers, Can-Am, and many other off-road vehicles. At a blistering 24,920 lumens, you won’t be disappointed with the output of this LED light bar.
Includes:
· OnX6+ 20” LED Light Bar (Clear, Driving/Combo)
· Mounting Brackets
· On/Off Harness 640115 (options are off or on with full power
· 2 x Black Rock Guard Lens Cover
Description:
At an impressive 24,920 lumens, the brightest just got up to 69% brighter than our previous generation. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
Dimensions: 20″ x 4.29″ x 2.69″
Weight: 7.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
