Description

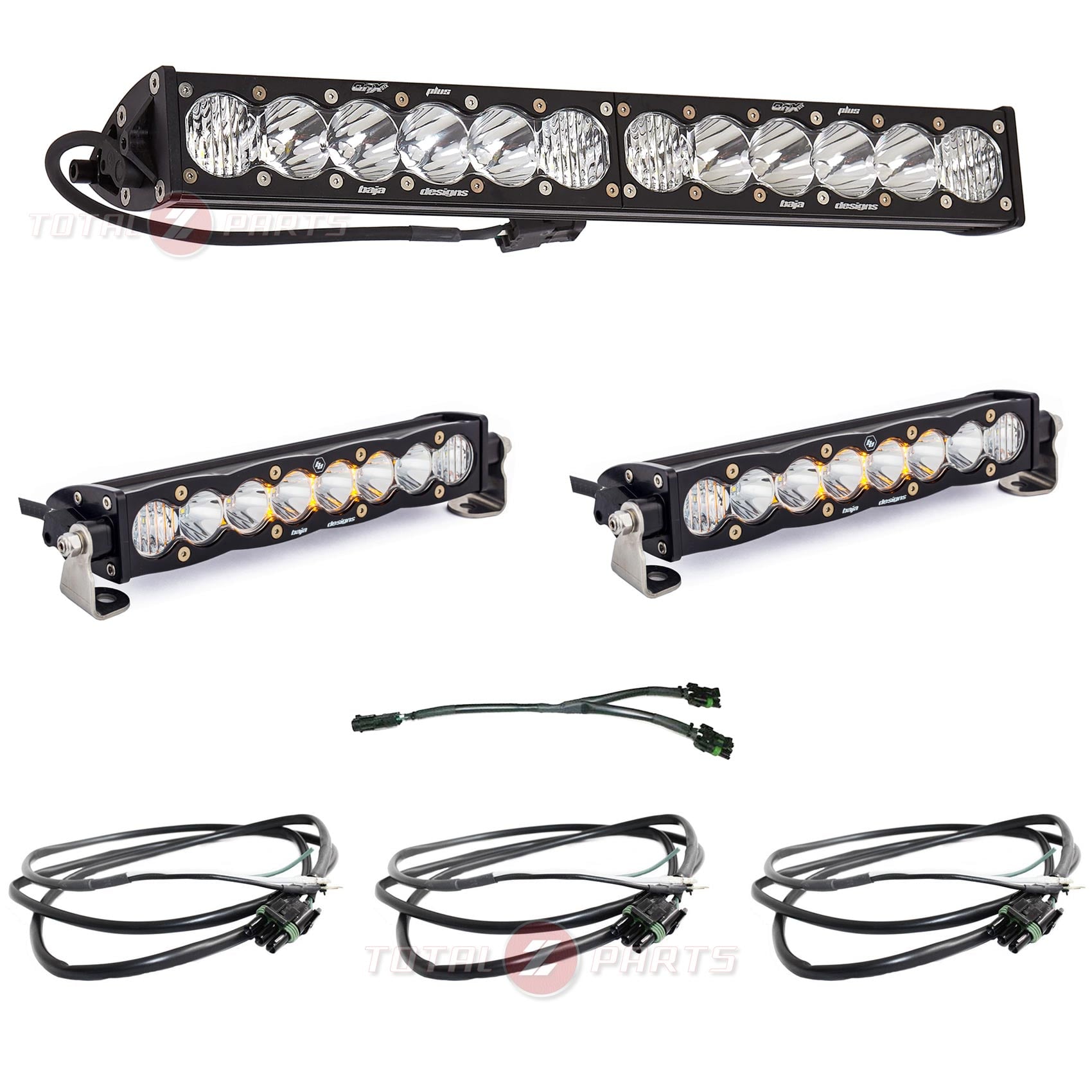

Package includes one Onx6+ 20-inch LED Light Bar in Clear Driving/Combo, and two Baja Designs 10-inch Clear S8 Driving/Combo Beam LED Light Bars. Includes three upfitter harnesses (with open leads for connecting to your own switches), one splitter surface mounting brackets & hardware.
Includes:

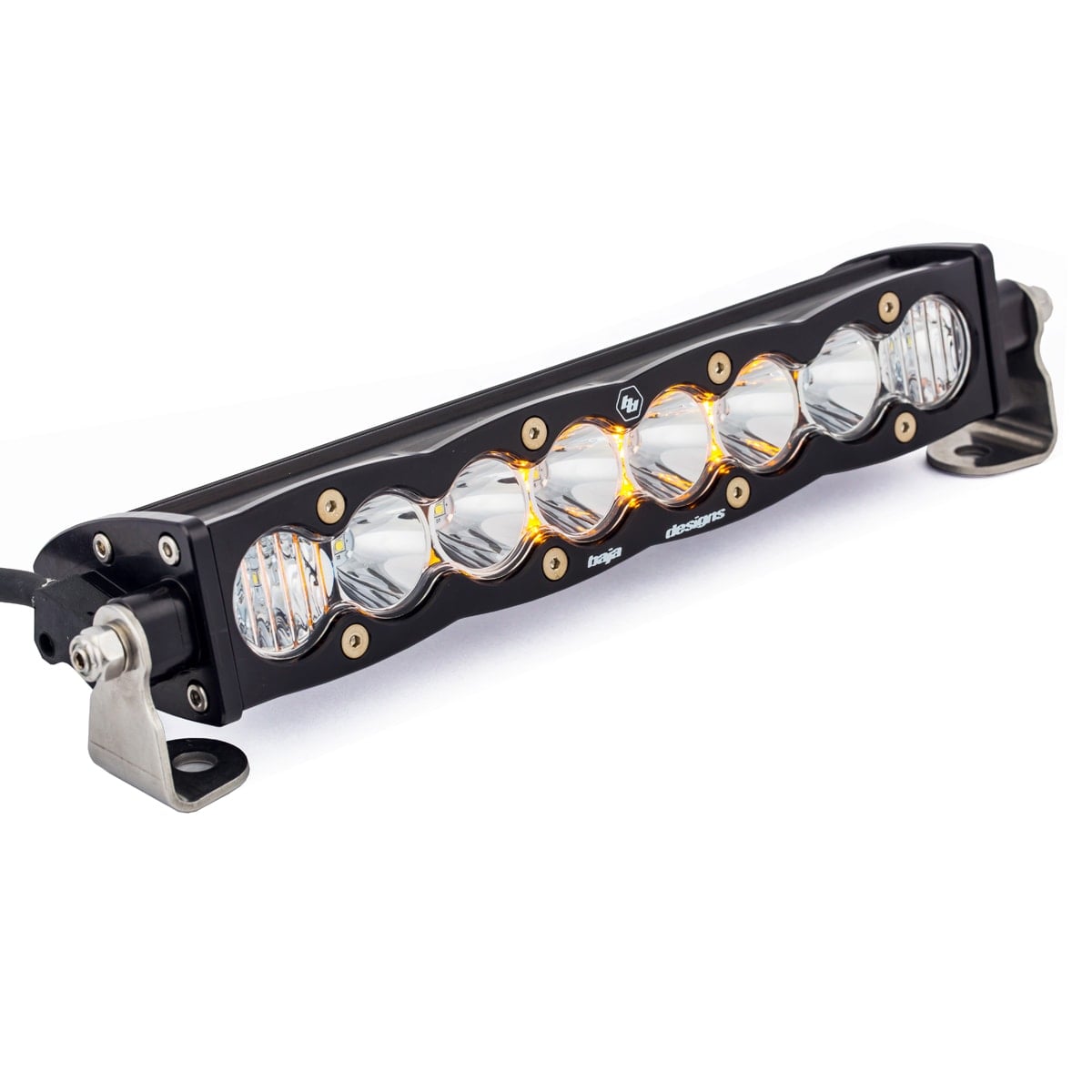

2 x S8 10” LED Light Bar

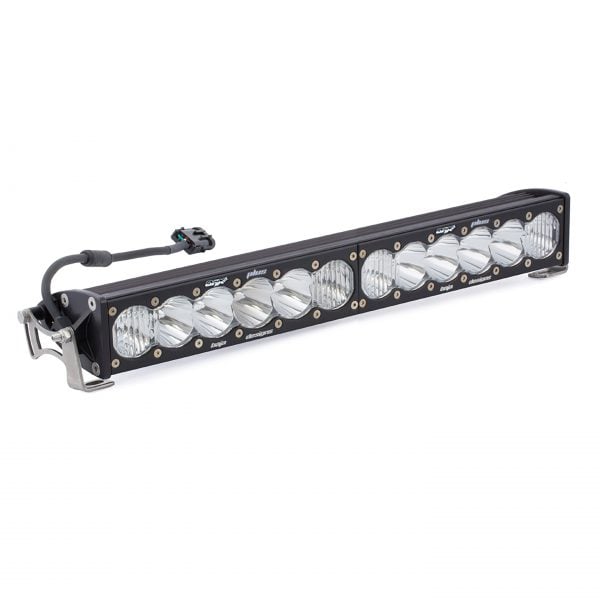

1 x Onx6+ 20″ LED Light Bar
3 x Upfitter Wire Harnesses (open ended wiring)
1 x S8/OnX6 Splitter
Mounting Brackets & Hardware

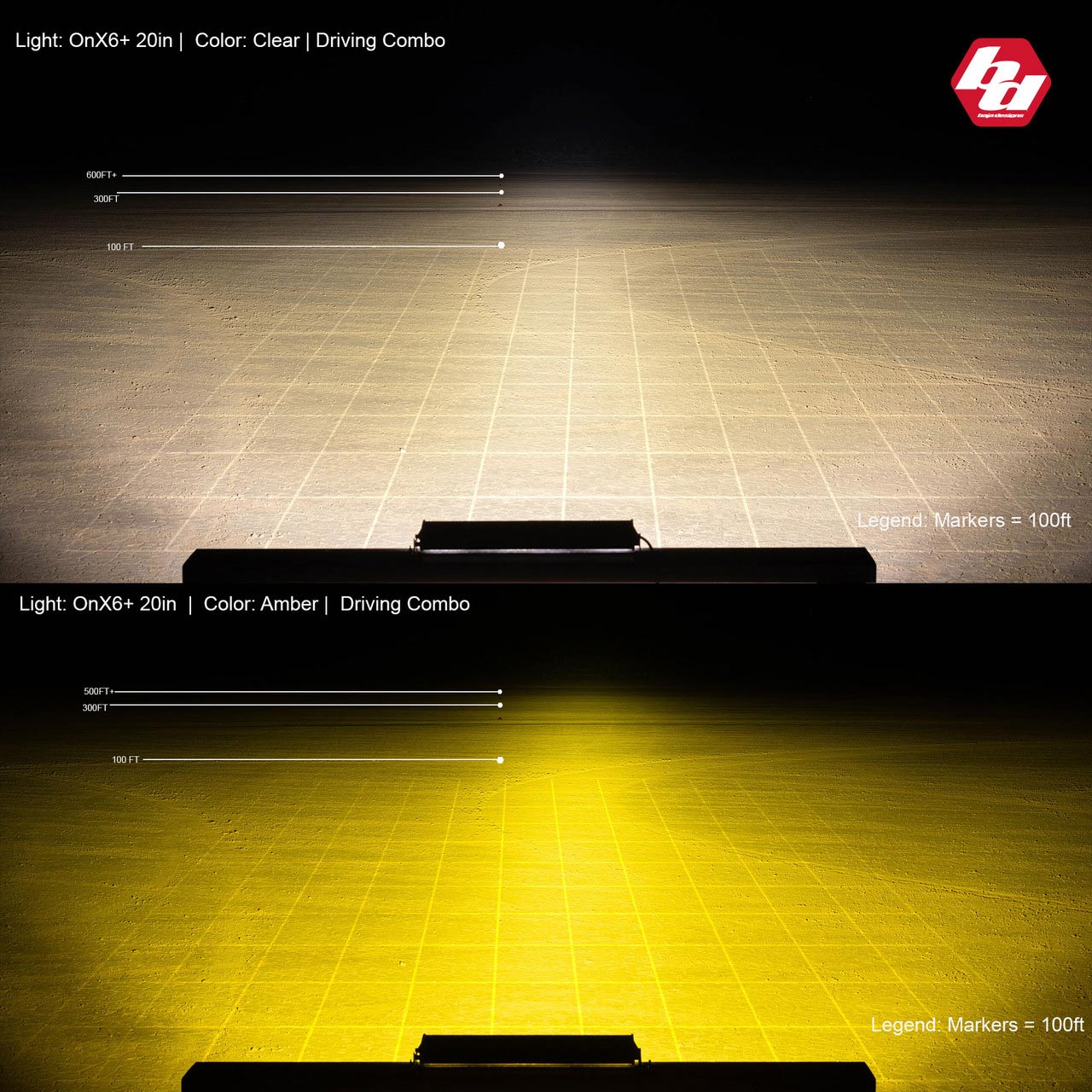

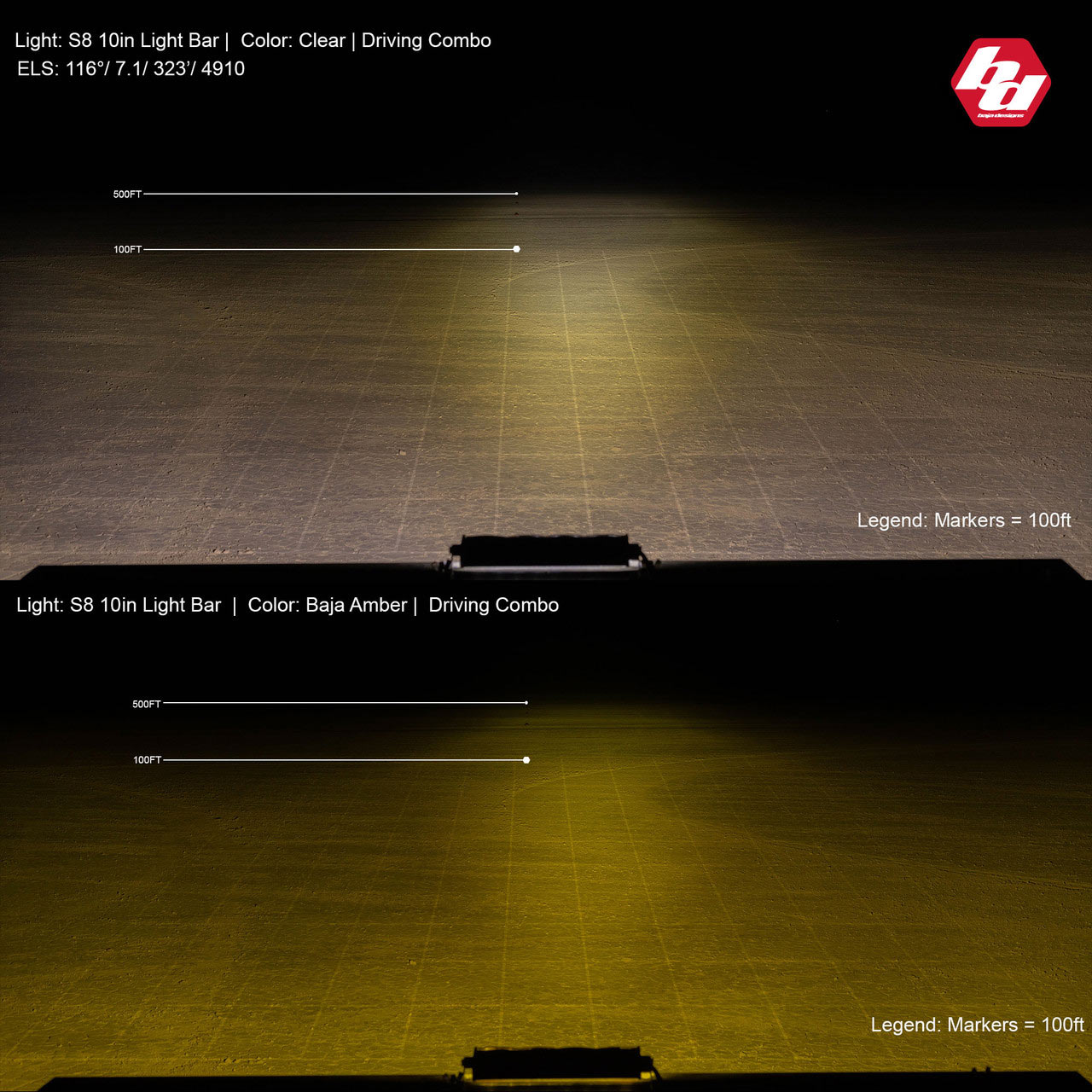

Lighting Pattern – Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
S8 Specifications:

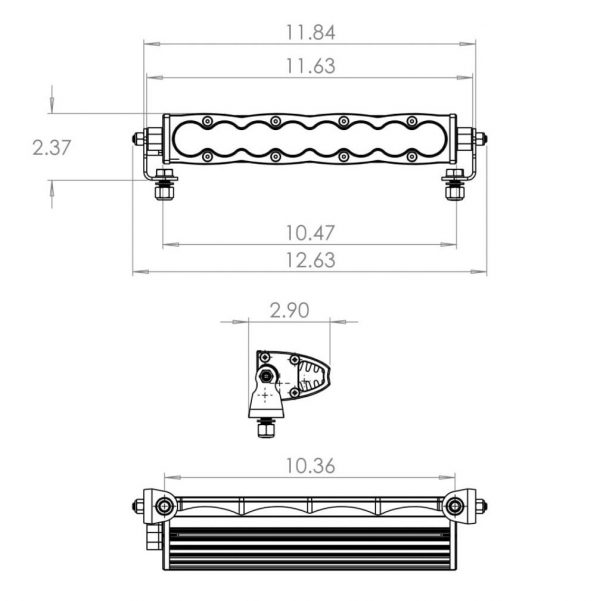

Dimensions
Depth (in.) 3
Height (in.) 1.600
Length (in.) 10
Weight (lbs.) 2.400
Specifications
Amperage Rating (A) 4.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 6324
Description Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 8
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 10 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 57.960
Wiring Harness Included No
Standards & Compliance
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
OnX6+ Specifications:

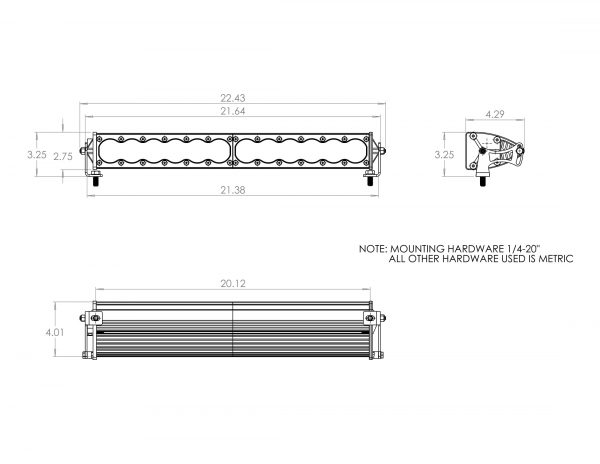

Dimensions
Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 20
Weight (lbs.) 7.85
Specifications
Amperage Rating (A) 16.6 (High); 12.0 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 24,920 (High); 18,460 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 12
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 216 (High); 160 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
