Description
Includes:

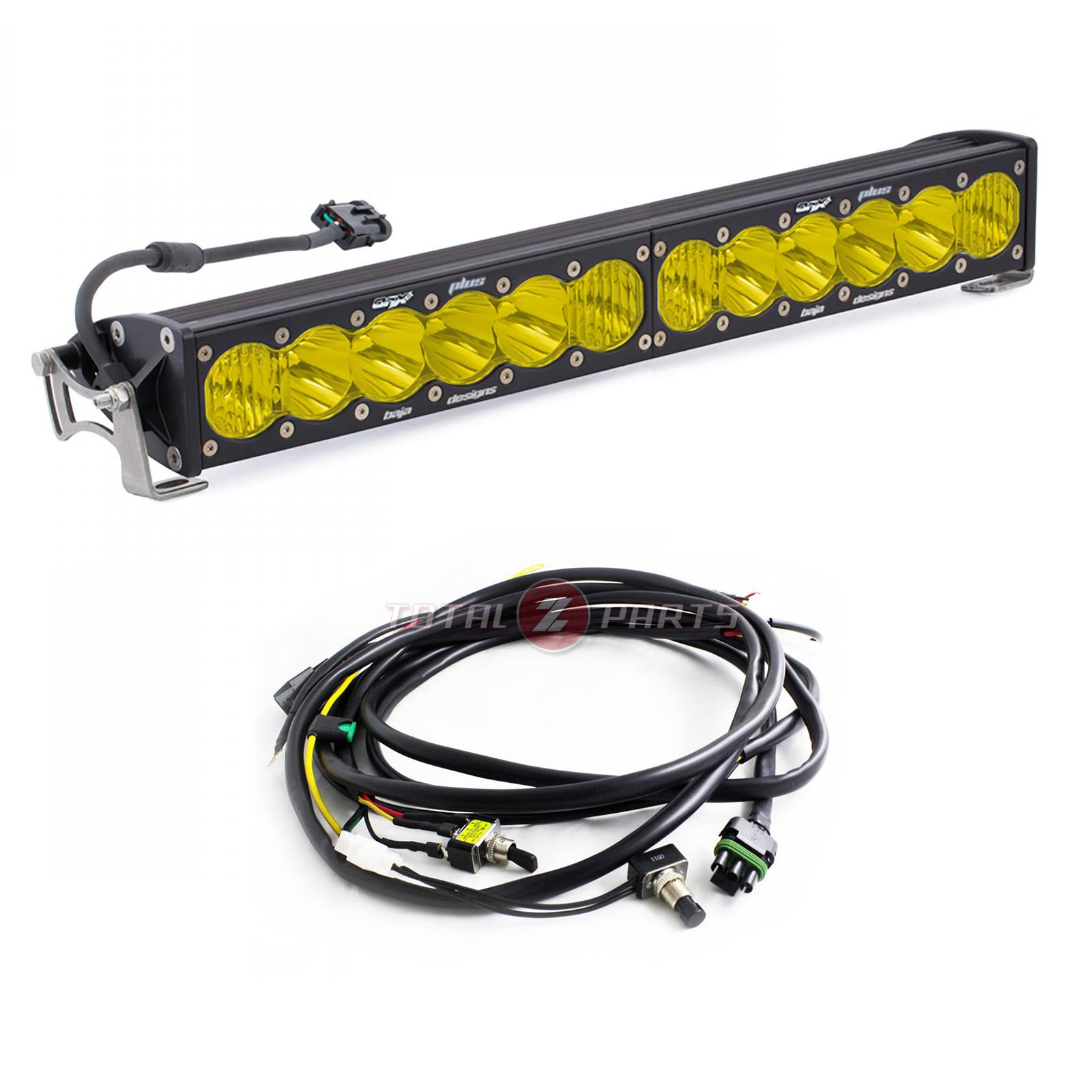

OnX6+ 20” LED Light Bar
Mounting Brackets
Hi-Low Dongle
Please note that this light does NOT include a harness and the applicable harness to this light is 640115 or 640119.
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
At an impressive 24,920 lumens, the brightest just got up to 69% brighter than our previous generation. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
Dimensions: 20″ x 4.29″ x 2.69″
Weight: 7.85 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
