Description

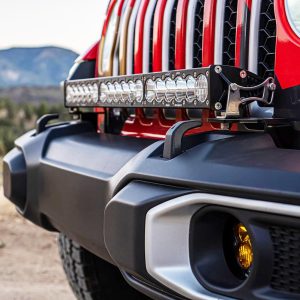

The Baja Designs 30-inch OnX6+ Front Bumper Mounted Light Bar kit is a premium lighting upgrade for your new Jeep Wrangler JL or Jeep Gladiator. 31,910 raw lumens of light output. Includes custom vehicle specific brackets, a wiring harness, all required mounting hardware.
NOTE: This light kit is designed to be mounted on the plastic Sport/Sahara bumper.
Note: this kit includes the wiring harness that has a built in toggle switch. If you want the upfitter wire harness with open leads, for wiring to your own switches, please send us a message (both versions are available).
Kit Includes:
30-inch OnX6+ Light Bar
Mounting Brackets & Hardware
Wiring Harness
The Baja Designs OnX6+ 30-inch light bar bumper kit is designed to be mounted on the Jeep JL/JT plastic bumper, taking the guess work out of installation. At an impressive 31,910 raw lumens at 21.7A on high, 25,450 raw lumens at 17.1A on low, illuminating lighting zones 1-4. The OnX6+ LED light bar integrates Baja Designs’ trademarked High Speed Spot reflectors to give you the guaranteed furthest projecting LED Light Bar on the planet. Vertical adjustments can be made and locked in, offering the best beam pattern in front of the vehicle no matter where it is mounted. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. Customize your beam pattern or change damaged lenses without voiding the warranty on the OnX6+ with our uService technology. Installation of the OnX6+ is easy and comes with mounting brackets that can be used in any application. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting.
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Light Bar Specifications:
Dimensions
Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 20
Weight (lbs.) 11.45
Specifications
Amperage Rating (A) 21.7 (High); 17.1 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 31,910 (High); 25,450 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam
Lighting Quantity 18
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 281 (High); 225 (Low)
Wiring Harness Description Hi-Low Dongle
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Fits: Jeep Wrangler & Gladiator, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
