Description
Baja Designs high-powered 30″ OnX6+ LED Offroad Light Bar, with Grimm Offroad Front Bumper Mounting Brackets for 2021+ Ford Bronco (with steel front bumper). The included mounting brackets utilize stock bolt locations and require no modifications to your Bronco.
Includes:
(1) OnX6+ 30-inch Clear Driving/Combo LED Light Bar
(2) Baja Designs OnX6+ Wiring Harnesses w/High-Low Switch
(2) Grimm Offroad Ford Bronco Steel Front Bumper Light Bar Brackets
Optics Pattern- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specifications for ONX6+ 30-inch:
Amperage Rating (A) 21.7 (High); 17.1 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 31,910 (High); 25,450 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 18
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 281 (High); 225 (Low)
Wiring Harness Description Hi-Low Dongle

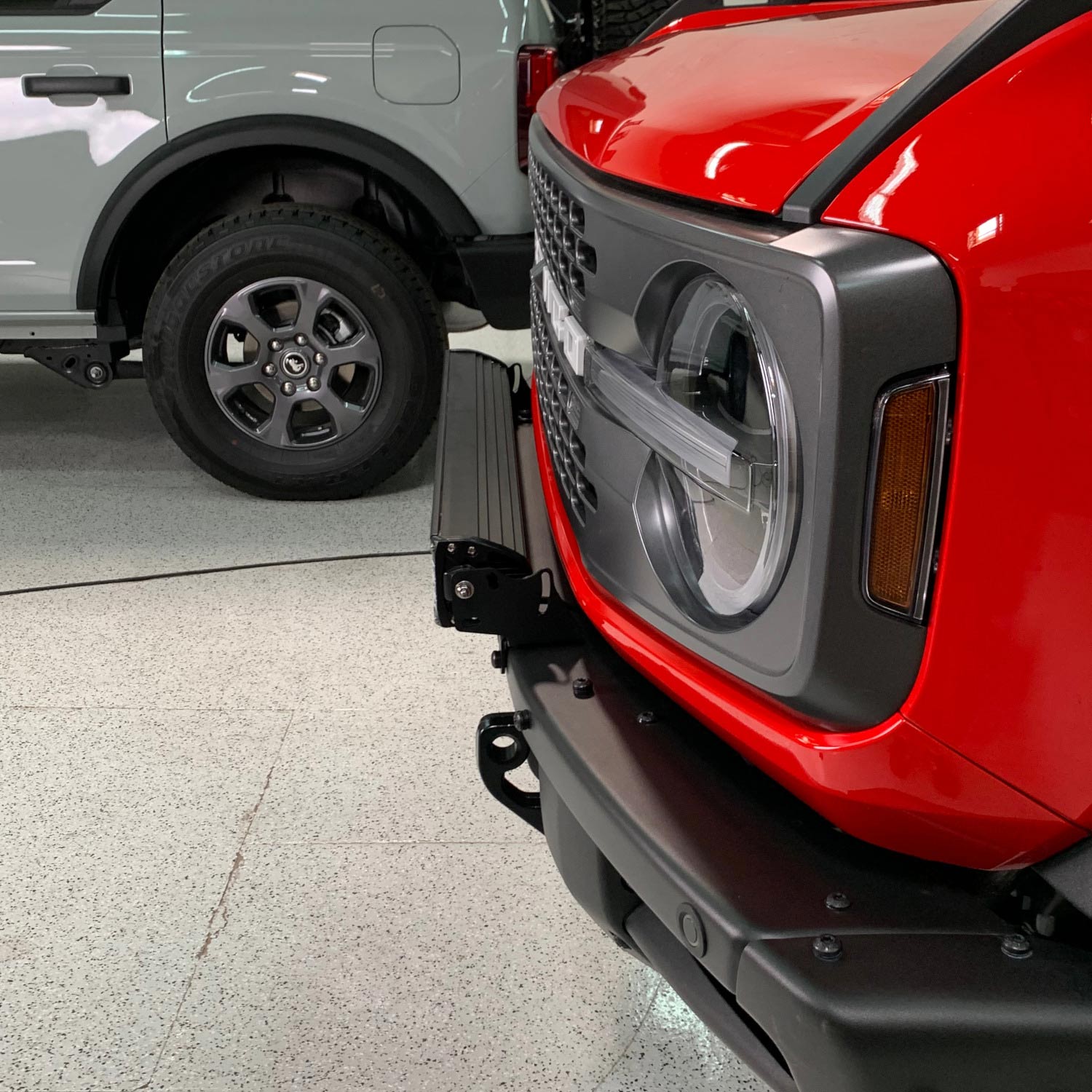

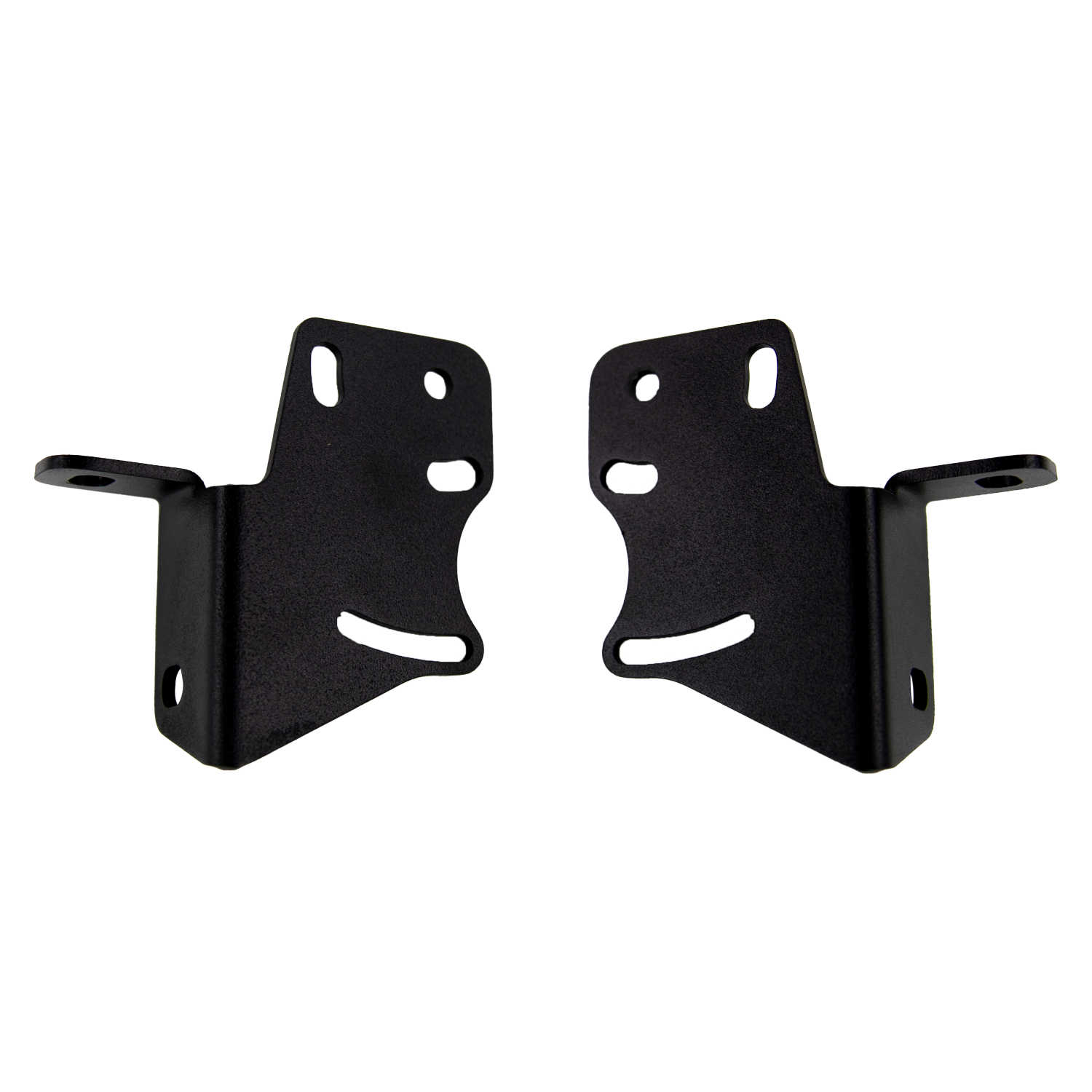

Grimm OffRoad’s Steel Front Bumper 30 Inch Light Bar Mount is designed to mount a 30 inch light bar to the center of the factory 2021+ Ford Bronco steel front bumper. The light brackets mount using stock bolt locations and require no modifications for installation.
Designed to fit the factory 2021+ Ford Bronco steel front bumper
Compatible with most 30 inch light bars with mounting width 31.13 inches to 32.13 inches
100 percent bolt-on, no drilling or cutting required
Laser Cut and CNC formed from high-strength 10 gauge steel
Black 2-stage textured powder coat for a factory look and superior corrosion and wear resistance
Limited Lifetime Warranty
Made in the USA
Notes:
Compatible with most 30 inch light bars, including, but not limited to:
Baja Designs OnX6-Series, S8-Series
Rigid Industries E-Series, SR-Series, RDS-Series, ADAPT-Series
Diode Dynamics Stage-Series
