Description
Baja Designs high-powered 50″ OnX6+ LED Offroad Light Bar, with Grimm Offroad Overhead Windshield Mount brackets for for 2021+ Ford Bronco. The included mounting brackets utilize stock bolt locations and require no modifications to your Bronco.
Includes:
(1) OnX6+ 50-inch Clear Driving/Combo LED Light Bar
(2) Baja Designs OnX6+ Wiring Harnesses w/High-Low Switch

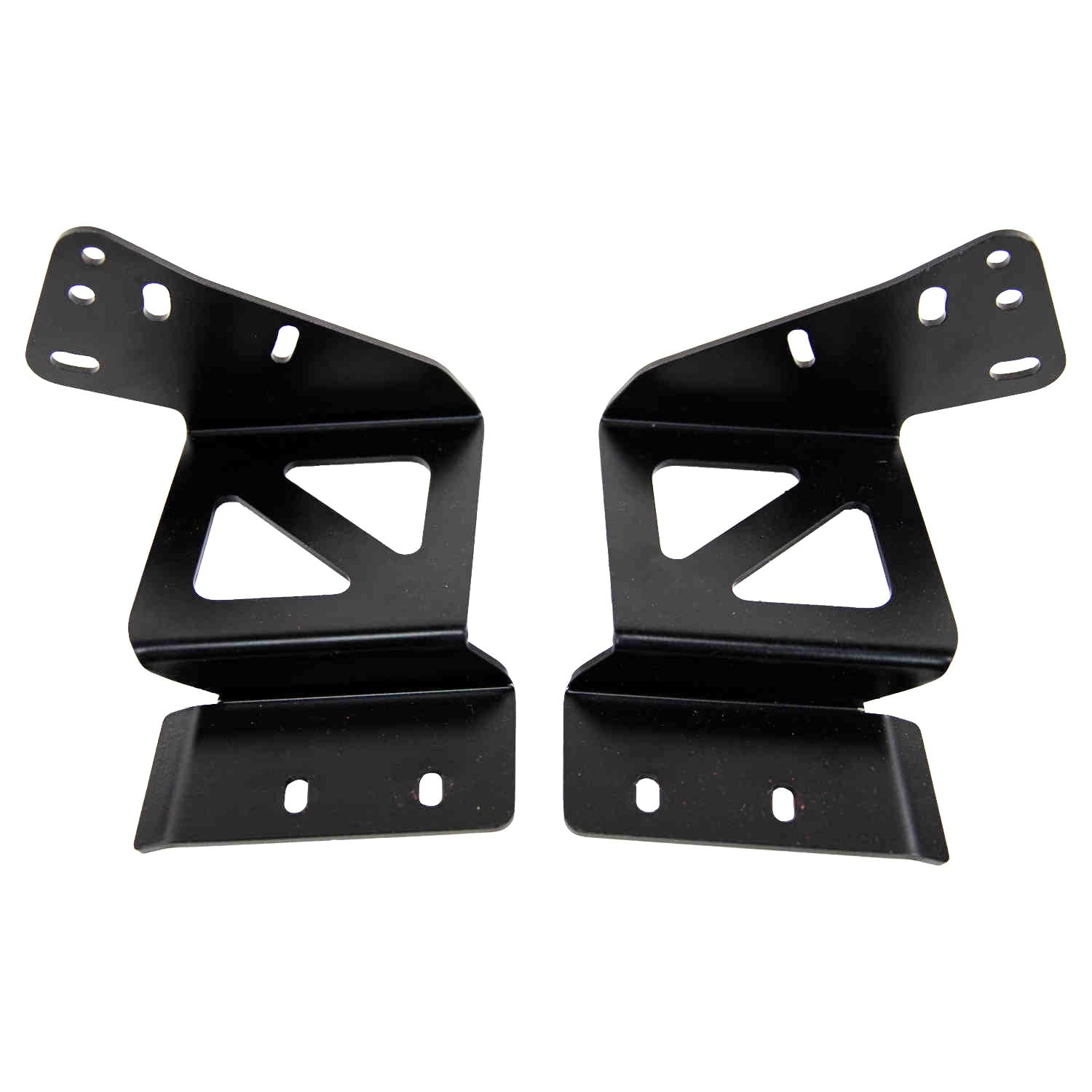

(2) Grimm Offroad Ford Bronco Windshield Roof Light Bar Brackets
Optics Pattern- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Specifications for ONX6+ 50-inch:
Amperage Rating (A) 28.2 (High)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 39,430 (High)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 30
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 50 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 355 (High)

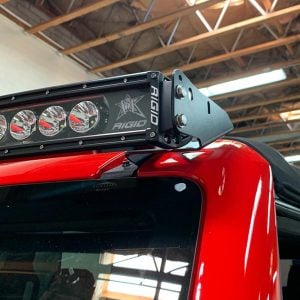

Grimm OffRoad’s 50 Inch Windshield Light Bar Mount is designed to mount a 50 inch light bar above the windshield of the 2021+ Ford Bronco. The light brackets mount using stock bolt locations and require no modifications for installation.
Designed to fit the 2021+ Ford Bronco
Compatible with most 50 inch light bars with mounting width 51.40 inches to 52.34 inches
100 percent bolt-on, no drilling or cutting required
Laser Cut and CNC formed from high-strength 7 gauge steel
Black super durable 2-stage powder coat for corrosion and wear resistance
Limited Lifetime Warranty
Made in the USA
Notes:
Compatible with most 50 inch light bars, including, but not limited to:
Baja Designs OnX6-Series, S8-Series
Rigid Industries E-Series, SR-Series, RDS-Series, ADAPT-Series
