Description
Package includes:
OnX6™ 40” Dual Control LED Light Bar w/Brackets & Hardware
2 x 640119 Wire Harness

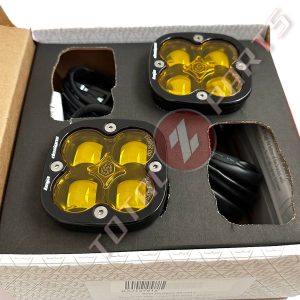

1 Pair Squadron SAE Amber
1 Pair Squadron Sport Clear Driving/Combo
The 524003DC OnX6+ Arc (curved) Dual Control LED Light Bar (with wire harnesses) combines the versatility and power of both the amber and white Baja Designs off road driving/combo pattern light bars. With the included two wire harnesses, you can control the white/clear inner section and amber outer sections individually. Backed by a Limited Lifetime Warranty, you can’t go wrong with the unbeatable looks, durability, and utility of the Baja Designs OnX6 Plus.
Lighting Pattern – Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (OnX6 Dual Control):
Lumens: (High) 39,220 (Low) 32,760 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 340W / 26.8A (Low) 284W / 22.4A
Dimensions: 40″ x 4.29″ x 2.69″
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
