Description

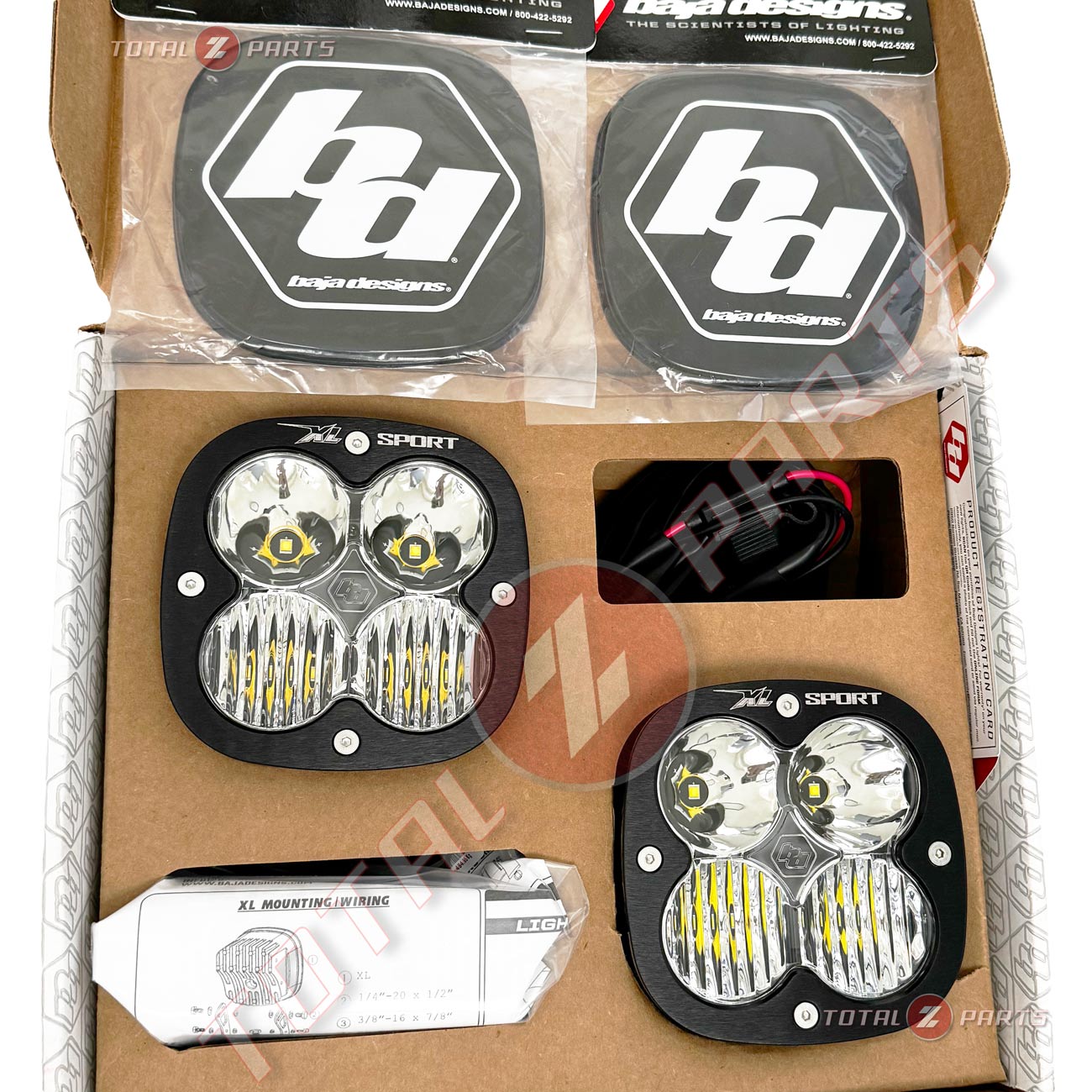

1 Pair of Baja Designs XL Sport Clear Driving/Combo Lights w/Wiring Harness & Rock Guards + 1 Pair of Baja Designs S2 Sport Amber Driving/Combo LED lights w/ Wiring Harness & Rock Guards. Baja Designs XL Sport light pods measure 4.43-inch x 4.43-inch per light. Baja Designs S2 lights are a compact 3-inch x 2-inch form factor. Both models are a versatile yet powerful light that can be mounted in a variety of locations on your vehicle. Each S2 Sport Light produces 1,581 raw lumens, and each Squadron Sport & XL Sport produces 3,162 lumens. All models are encased in a durable powder coated aluminum housing and are waterproof for up to 9 feet of submersion.
Includes:
(2) S2 Sport LED Lights w/Rock Guards
(2) XL Sport Lights w/Rock Guards
(2) S2 Mounting Brackets w/Hardware
(2) XL Sport Mounting Brackets w/Hardware
(2) Wiring Harness w/Rocker Switch
Driving/Combo Lens Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
XL Sport specs (per light)
Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450
Specifications
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
S2 Sport specs (per light)
Dimensions
Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500
Specifications
Amperage Rating (A) 0.900
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 1581
Amber; Pair
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 2
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W) 12.420
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
