Description

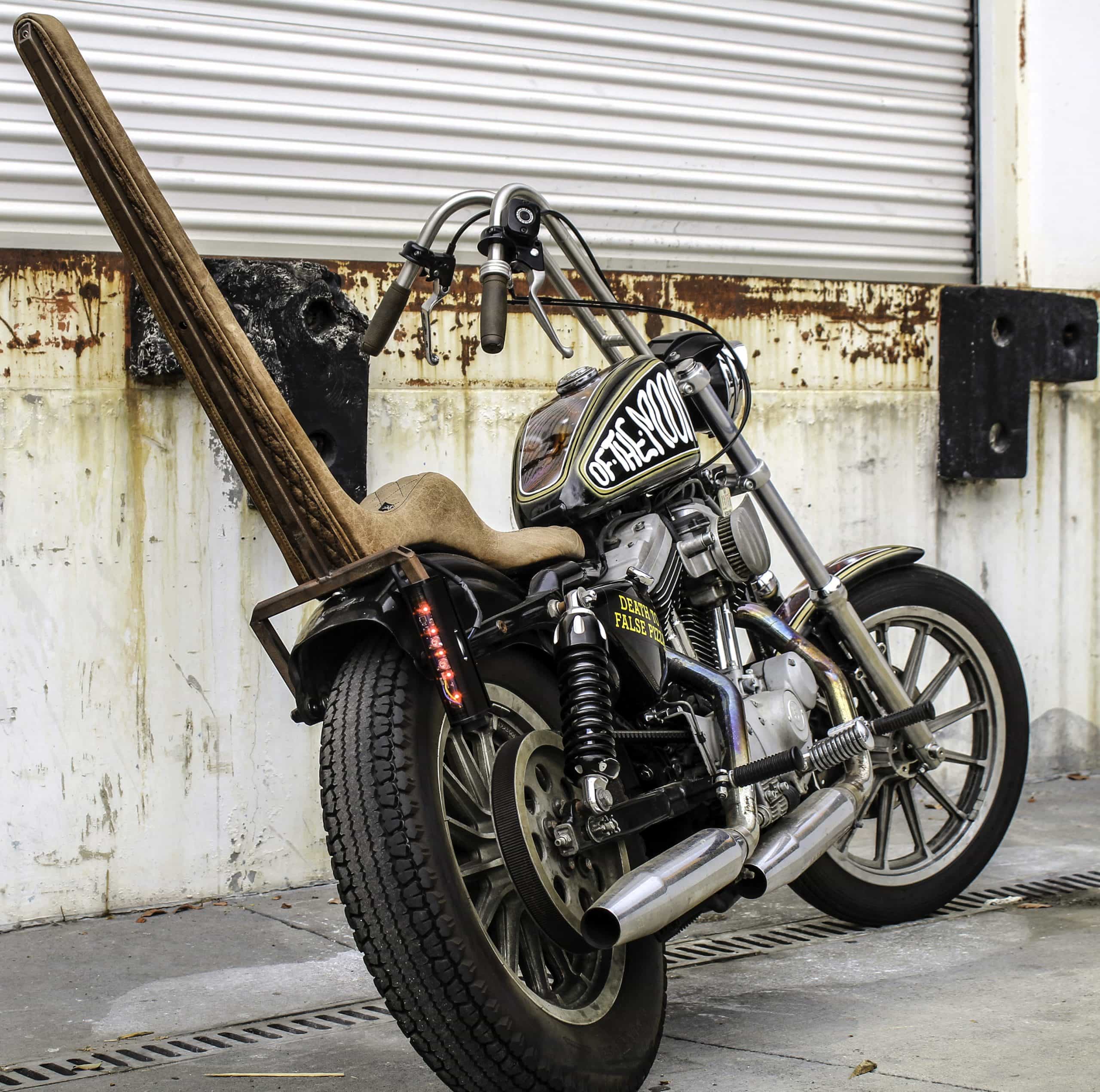

Baja Designs 6-inch RTL-M (Rear Tail Light – Mini – with license plate illuminator) is a miniature version of Baja Designs’ existing RTL. At a compact 6-inches, this light bar is exceptionally useful on vehicles where space is limited, such as: Jeeps, motorcycles, UTVs, and ATVs.
Includes:
RTL-M, 6″ Light Bar with license plate illuminator
Mounting Hardware

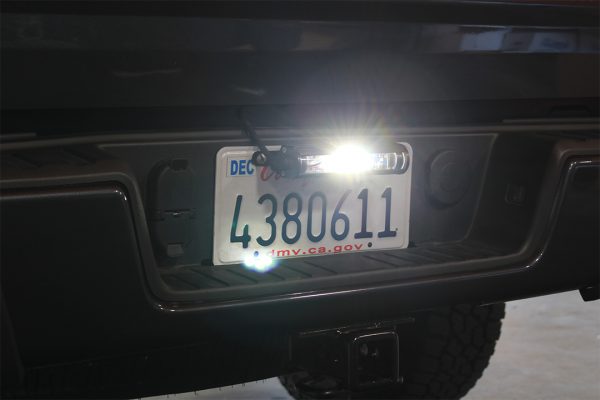

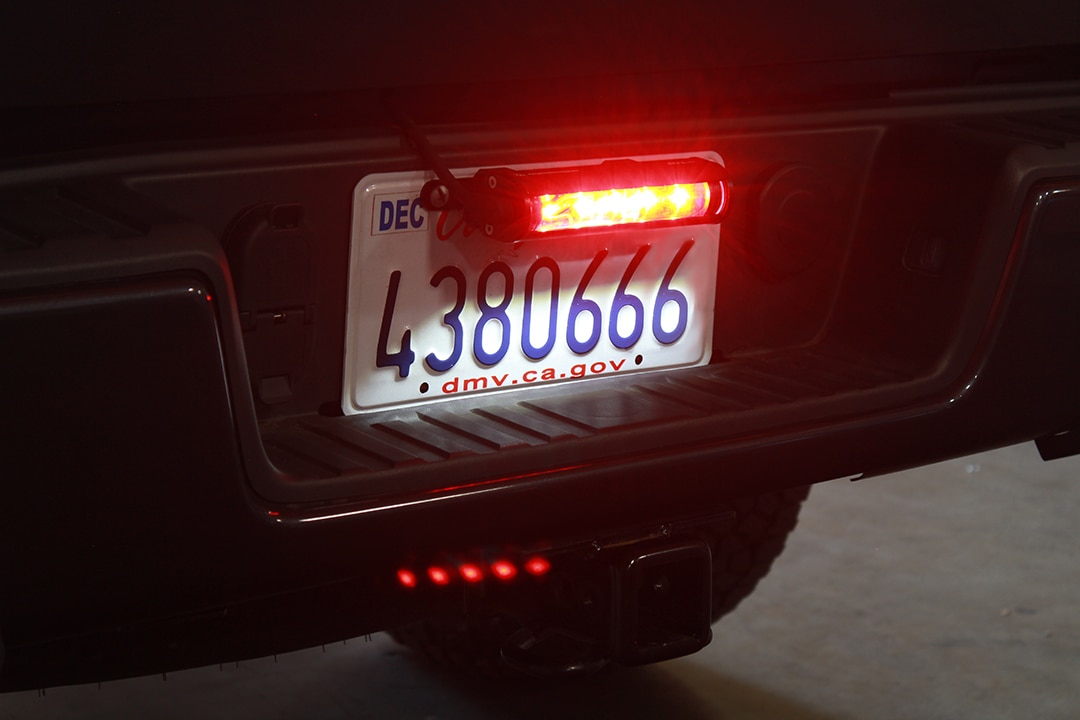

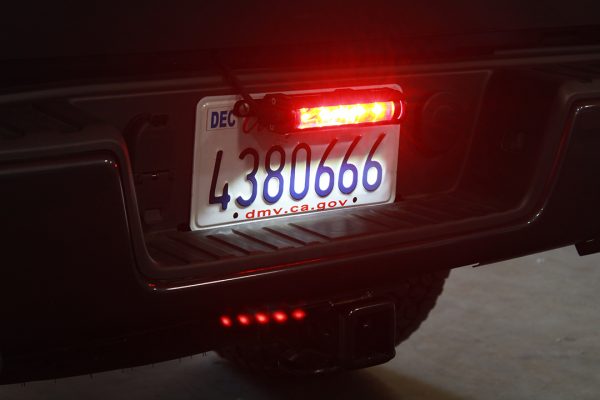

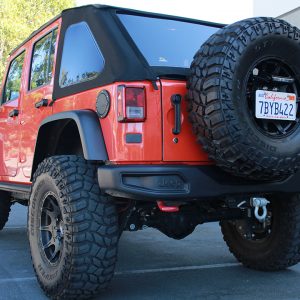

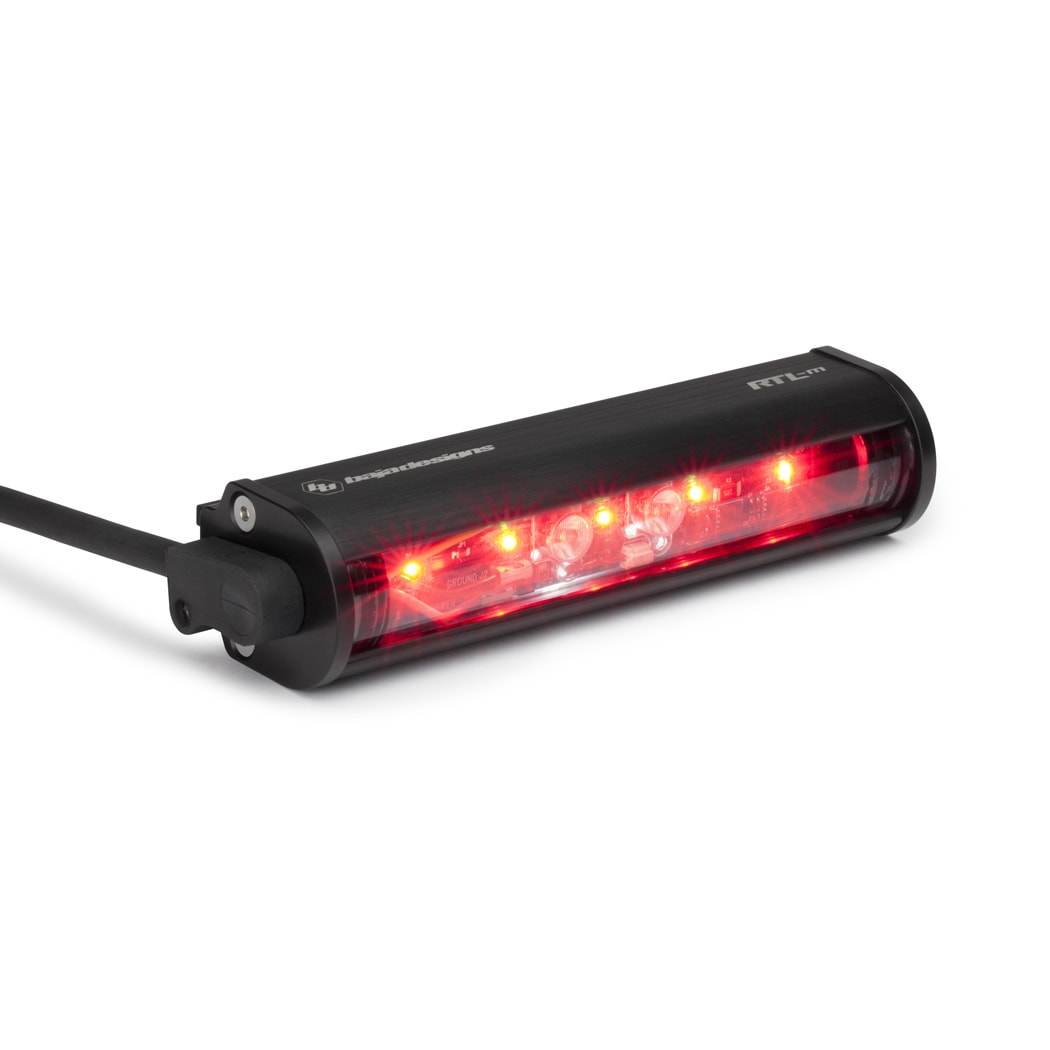

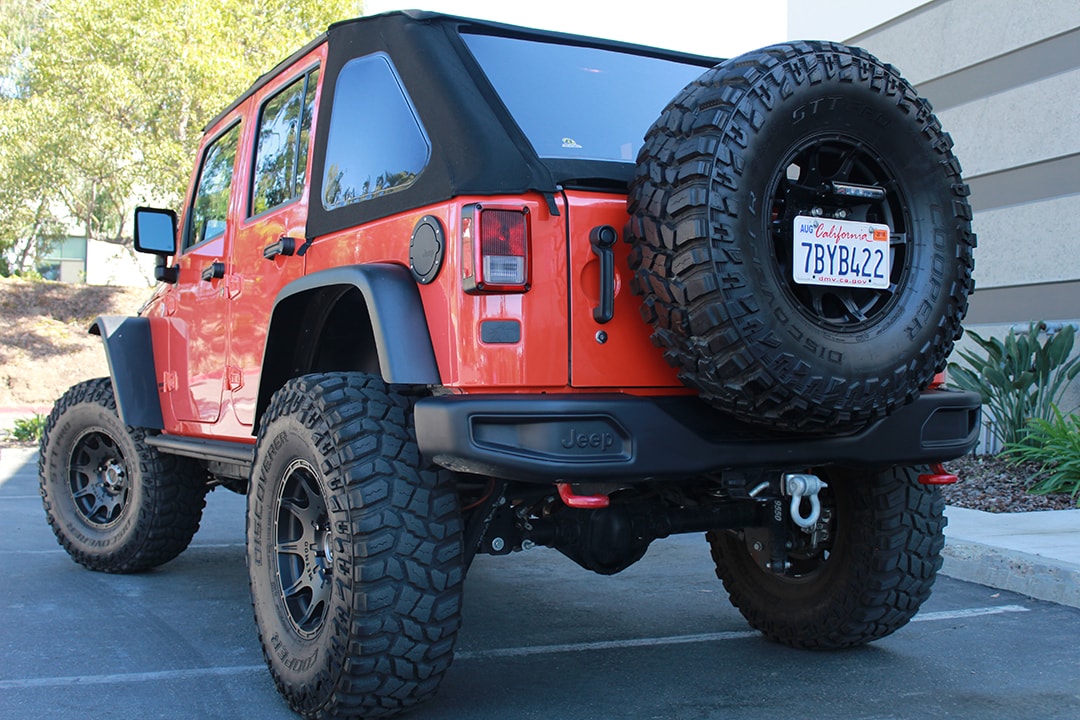

The RTL-M includes five red LEDs which function as the running and brake lights. The high visibility of these LEDs provides extra safety to any off-road enthusiast, from the casual weekend warrior, to the dedicated racer. The bar also features a pair of central white LEDs which act as cargo and scene lighting. Perfect for grabbing gear out of the toolbox or lighting the camp area. The RTL-M also features an optional license plate illuminator for those that would like to use the product with our Universal License Plate Mount or Jeep JK Spare Tire Mount.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
SKU: 100601

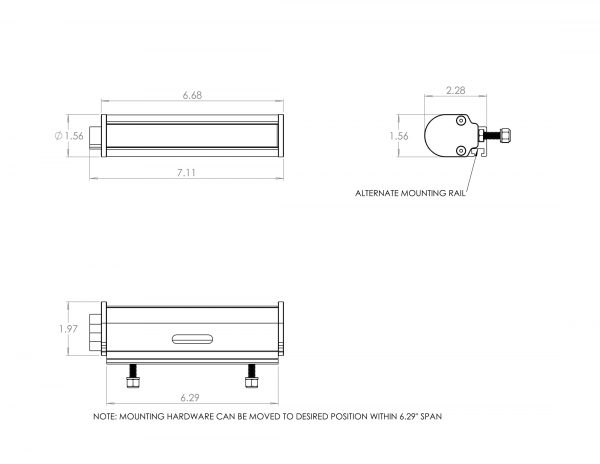

Dimensions
Depth (in.) 2.5
Height (in.) 1.56
Length (in.) 6.69
Weight (lbs.) 1.1
Specifications
Average Rated Life (hr.) 49,930
Beam Pattern Rear Tail Light
Brightness (Lumens) 312
Description Includes Plate Light
Housing Color Black
Lens Color Red/White Plate Light
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 5
Lighting Technology LED
Lighting Type Rear Projecting
Mounting Hardware Description Mounting Hardware
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type RTL-M 6 Inch LED Rear Tail Light w/ Plate Light
Universal or Specific Universal
Wattage (W) 5.5 (Brake); 8.5 (Carbo); 2 (License Plate); 0.75 (Tail Light(
Wiring Harness Included No
Standards & Compliance
Patent No. D802,187
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Street Legal Yes
(RTL Patent D802,187)
Mounting:
The RTL, RTL-G and RTL-B come with an integrated track system that allows you to adjust within the 30″ width of the bar. The provided hex head 1/4 20 hardware slides in the ends of the of the bars and can be adjusted to suit your needs.
