Description
Baja Designs’s S1 LED Roof Rack Rail Kit for 2019-2024 Mercedes Sprinter 1500/2500/3500 Van. Each S1 Work/Scene pattern light outputs 2,320 lumens.
Give your van the best camp lighting solution with our Mercedes Sprinter Van S1 Roof Rack Rail Kit. This kit comes with 4 S1s in a work scene lens pattern, mounting brackets, wiring and all the necessary hardware for an easy install. US Patent Number 11273751.
Specs for S1 Lights (Per Light):

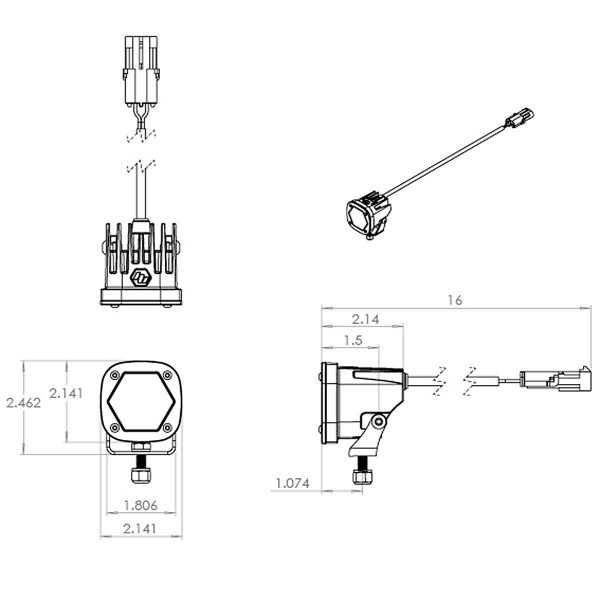

Dimensions
Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400
Specifications
Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Work/Scene
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Work/Scene; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
