Description
Baja Designs Laser S1 LED/Laser Triple Headlight Kit for 2020-2024 Polaris RZR Pro XP, 2022-2024 Polaris RZR Pro R, and 2022-2024 Polaris Turbo R. The single laser chip in each laser S1 projects light 300% farther than the most effective LED’s. Includes 2 x Laser LED Clear S1 Spot Pattern lights, 2 x S1 Clear Wide Cornering Pattern LED lights, and 2 x S1 LED Clear S1 Spot Pattern lights. Also includes semi-gloss black powder coated mounting brackets, wiring harness splitters, and hardware.
For a performance oriented UTV like the Polaris RZR Pro R/Turbo R/ Pro XP you need performance oriented lighting in our S1 Triple LED/Laser headlight kit. We’ve sought out to give the end user a significant bump in output from the factory headlight so they can drive at night with confidence. With two sets of S1 LED lights pushing 2,320 lumens each to handle lighting up Zone 1,2,3 paired with a set of S1 lasers at 500 lumens to push into zone 4,5, this is the ultimate headlight kit you can get for your Polaris UTV. With our plug and play wiring system and precision cut and bent brackets installation is a breeze. If you’re looking for lights that will set your Pro XP/Turbo R/Pro R apart from the crowd and also give you race quality lighting this is the kit for you!
NOTE: This is a laser equipped kit ans has been engineered to give drivers an extreme amount of distance. Laser technology allows us to have lower lumens while achiving distances over 350 percent farther than the most effective distance LEDs on the market today. With the LED S1 and Laser S1 we’re able to create a smooth blend of both distance and near field lighting that makes driving off-road at night safer and more enjoyable. US Patent Number 11273751.

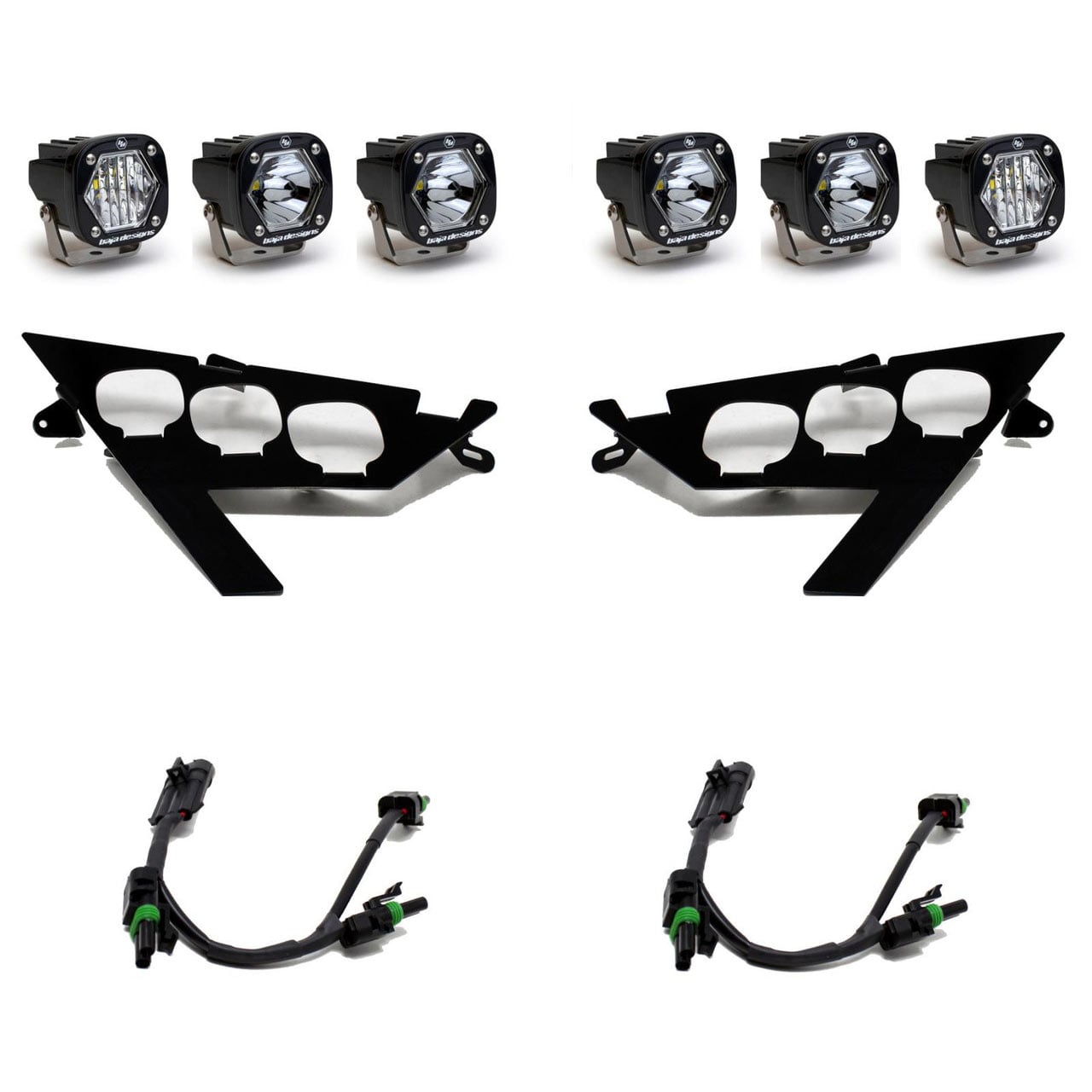

S1 Laser Headlight Kit Includes:
S1 Spot Clear (x2)
S1 Wide Cornering Clear (x2)
S1 Laser Spot Clear (x2)
Headlight brackets (x2)
Adaptor harness (x1)
Necessary mounting hardware
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Technical Specs:
SKU: 380007 (2 x Spot Laser S1’s)
Dimensions
Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400
Specifications
Amperage Rating (A) 1
Average Rated Life (hr.) 2,000
Beam Pattern Laser Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 500
Description Laser Spot; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology Laser
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 Laser Light Pod
Universal or Specific Universal
Wattage (W) 13.800
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
SKU: 380001 (2 x Spot S1’s)
Dimensions
Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400
Specifications
Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
SKU: 380005 (2 x Wide Cornering S1’s)
Dimensions
Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400
Specifications
Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Wide Cornering; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 1
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
