Description

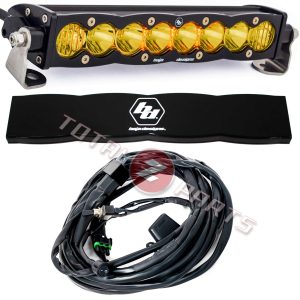

Baja Designs 10-inch Amber S8 Driving/Combo Beam LED Light Bar Kit with Black Rock Guard/Lens Cover and Wiring Harness. Includes mounting brackets, mounting hardware, rock guard, and 640122 wiring harness with mode switch for independent amber backlight function control .
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 6,324 lumens of pure power, low amp draw of 4.2 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by a Limited Lifetime Warranty giving you the ultimate in purchase protection!
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Dimensions
Depth (in.) 3
Height (in.) 1.600
Length (in.) 10
Weight (lbs.) 2.400
Specifications
Amperage Rating (A) 4.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 6324
Description Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 8
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 10 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 57.960
Wiring Harness Included No
Standards & Compliance
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Includes:
· S8 10” LED Light Bar
· Mounting Brackets
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
708202
701003
640122
