Description

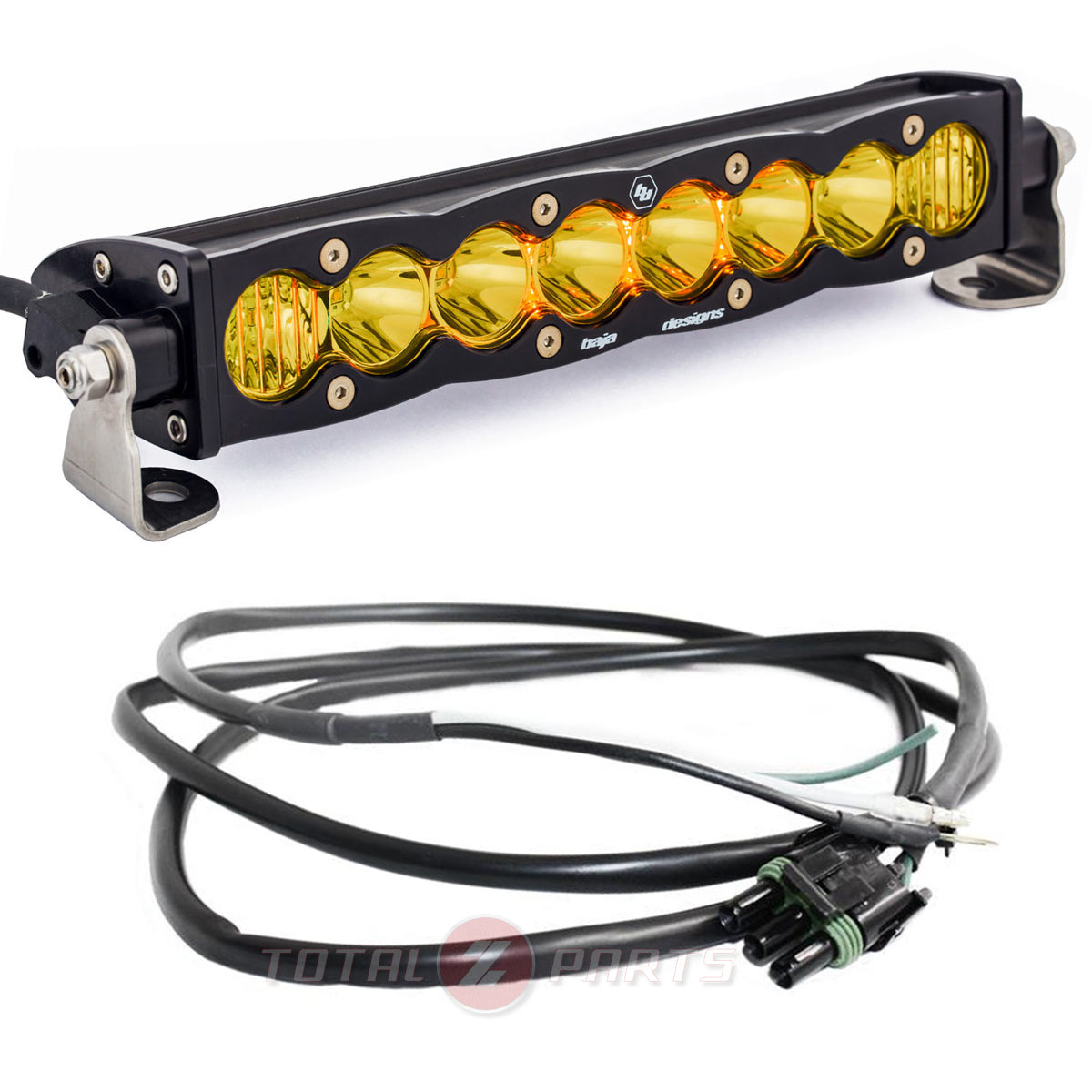

Baja Designs 10-inch S8 LED Light Bar (Clear Driving/Combo Beam Lens) with Upfitter Wiring Harness (open wires, for wiring to your own powered switch circuit). Package includes: mounting brackets, mounting hardware, and upfitter wiring harness with open leads.
- Wattage/Amps: 57.96W / 4.2A
- Lens Color: Amber
- Lumens: 6,324 Utilizing 8 Cree LEDs
- Independently controllable amber backlight feature
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 6,324 lumens of pure power, low amp draw of 4.20 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by a Limited Lifetime Warranty giving you the ultimate in purchase protection!
Dimensions:
Depth (in.) 3
Height (in.) 1.600
Length (in.) 10
Weight (lbs.) 2.400
Specifications:
Amperage Rating (A) 4.200
Average Rated Life (hr.) 49,930
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 6324
Housing Color: Black
Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Material: Hardcoated Polycarbonate
Lighting Modes: Beam/Amber Backlit Feature
Lighting Technology: Cree LED
Lighting Type: Forward Projecting
Mounting Hardware Description: Mounting Brackets
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: S8 10 Inch LED Light Bar
Universal or Specific: Universal
Wattage (W): 57.960
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Available Lens Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
