Description

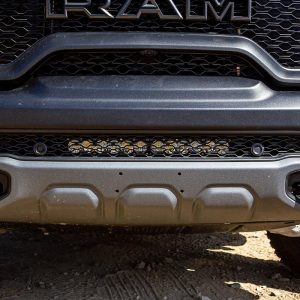

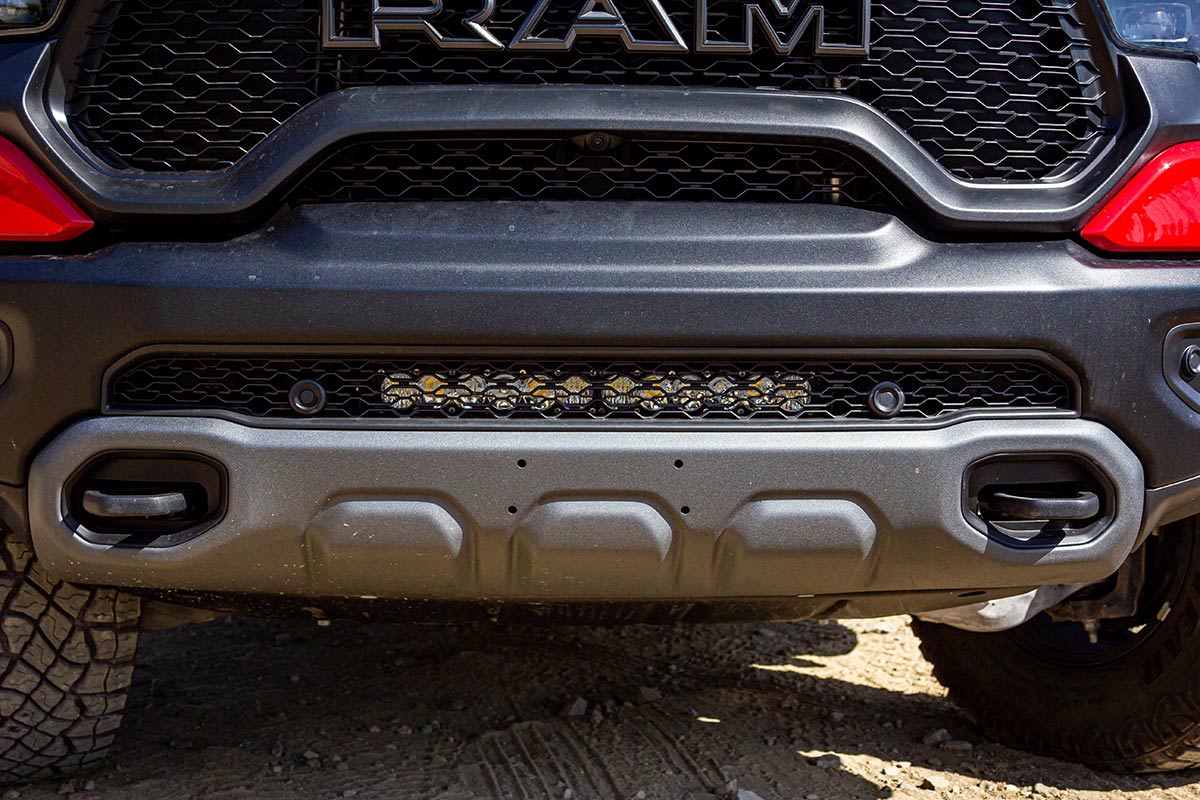

20-inch Baja Designs S8 LED light bar kit for the front lower grille on a 2021-2024 RAM 1500 TRX. Brightness: 12,700 raw lumens. Includes dual switch wiring harness for separate control of main beam and amber backlight.
Manufacturer’s Description:
Our Ram 1500 TRX 20 inch S8 Bumper Kit gives you high performance lighting, with a sleek look. This kit retains your truck’s factory look and includes every component needed for install, without any guesswork.
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
Depth (in.) 3
Height (in.) 1.6
Length (in.) 20
Weight (lbs.) 4.5
Specifications
Amperage Rating (A) 8.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 12,700
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 16
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 20 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 120
Wiring Harness Included No
Standards & Compliance
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
