Description

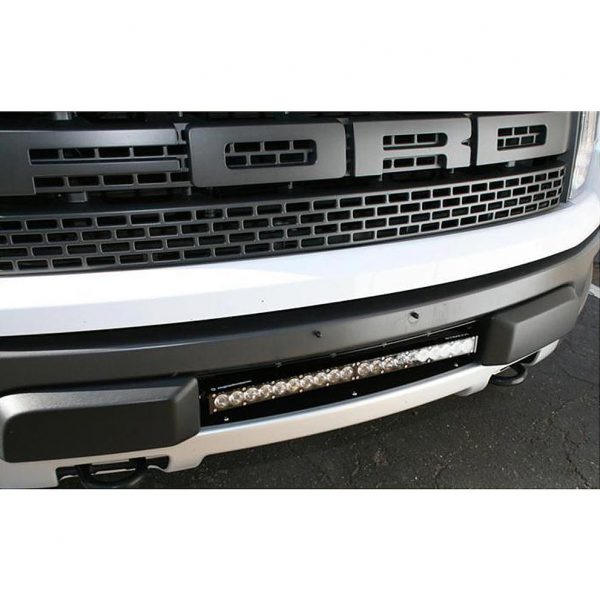

The Baja Designs 20-inch S8 Lower Front Bumper LED amber light bar mount kit for 2010-2014 Ford F150 Raptors will enhance the front end of your truck and give you unparalleled lighting power at the flip of a switch. This mount kit allows for easy installation of the included 20” S8 Light Bar.

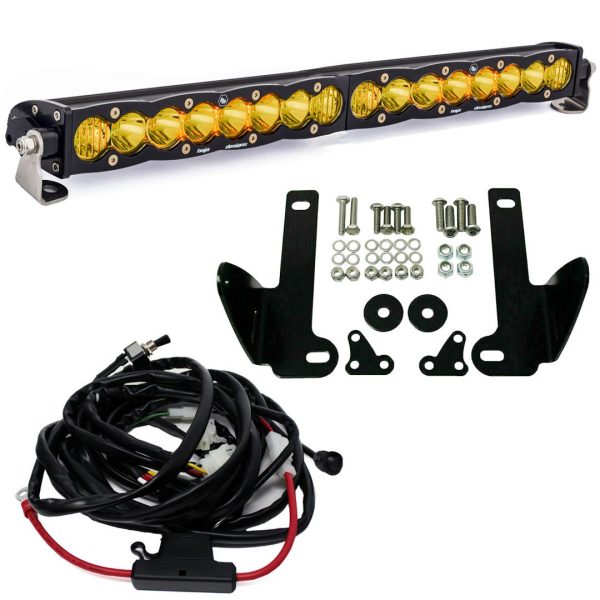

Kit Includes:
S8 20” LED Light Bar
Mounting Brackets
S8/IR Wire Harness w/Mode-2 Bar max 325 watts
Raptor (10-16) Mount Kit (20″)”
Baja Designs’ latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 12,700 lumens of pure power, low amp draw of 8.00 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by a Limited Lifetime Warranty giving you the ultimate in purchase protection!
The S8/IR Wire Harness w/Mode-2 Bar max 325 watts takes all the guesswork out of installation and is incredibly high quality suited for race use! Put your dimmer mode to use! This harness allows you to use the high beam or toggle switch to turn on the light bars.
Harness Features:
- Includes On/Off Toggle switch for primary light bar function, as well as a separate On/Off switch for secondary (Amber Backlight/ Laser) function.
- Heavy duty wire gauge that can handle any size bar
- Complete with battery ring terminals, relay, sheathing, fuse
- 100″ wire length between battery ring terminals and weatherpack for bumper or roof mounting
Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Fits: Raptor 10-14
Lumens: 12,700 Utilizing 16 Cree LEDs
Wattage/Amps: 120W / 8.00A
Dimensions: 20” x 3” x 1.6”
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
