Description

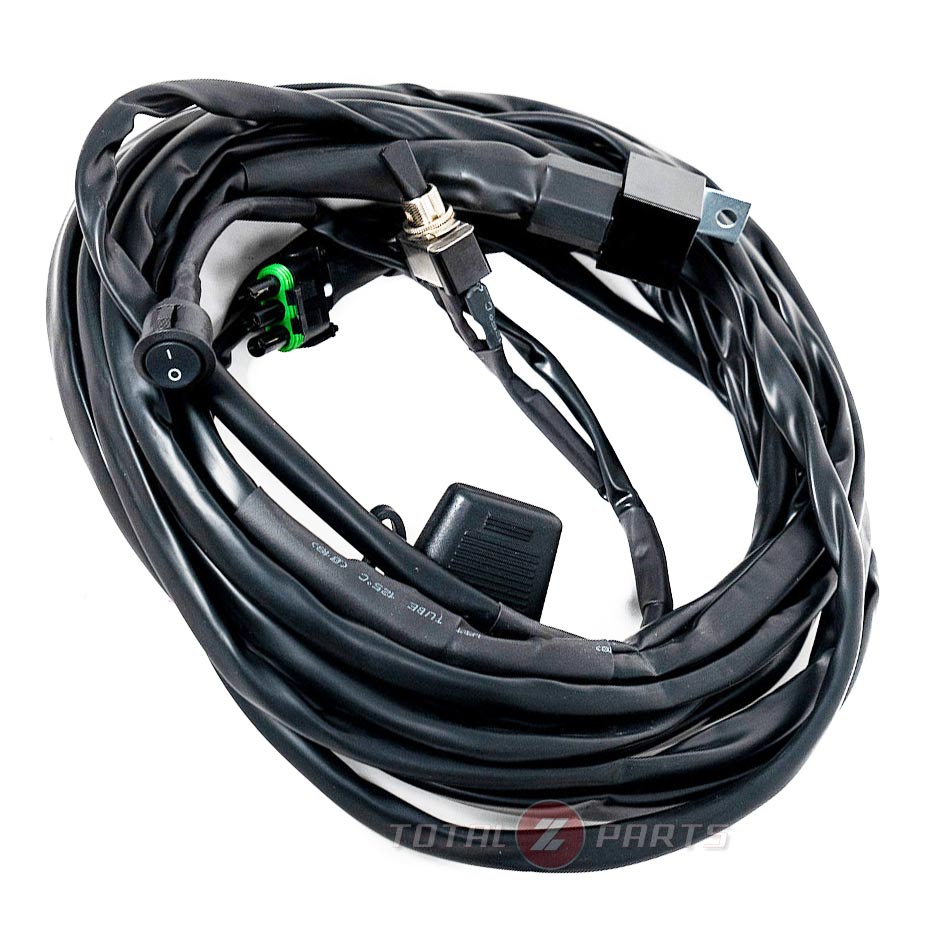

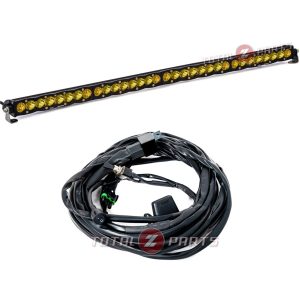

Baja Designs 40-inch S8 Amber Driving/Combo Pattern LED Light Bar Kit with Wiring Harness. Includes mounting brackets, mounting hardware, and wiring harness with mode switch for independent amber backlight function control .
- Wattage/Amps: 240W / 16A
- Lens Color: Amber
- Lumens: 25,400
- Wide Driving (42°) and Spot (6°) beams
- Part Number: 704013
Kit Includes:
- S8 40” LED Light Bar
- Mounting Brackets
Manufacturer’s Description:
Baja Design’s latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 25,400 lumens of pure power, low amp draw of 16 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. Limited Lifetime Warranty gives you the ultimate in purchase protection!>

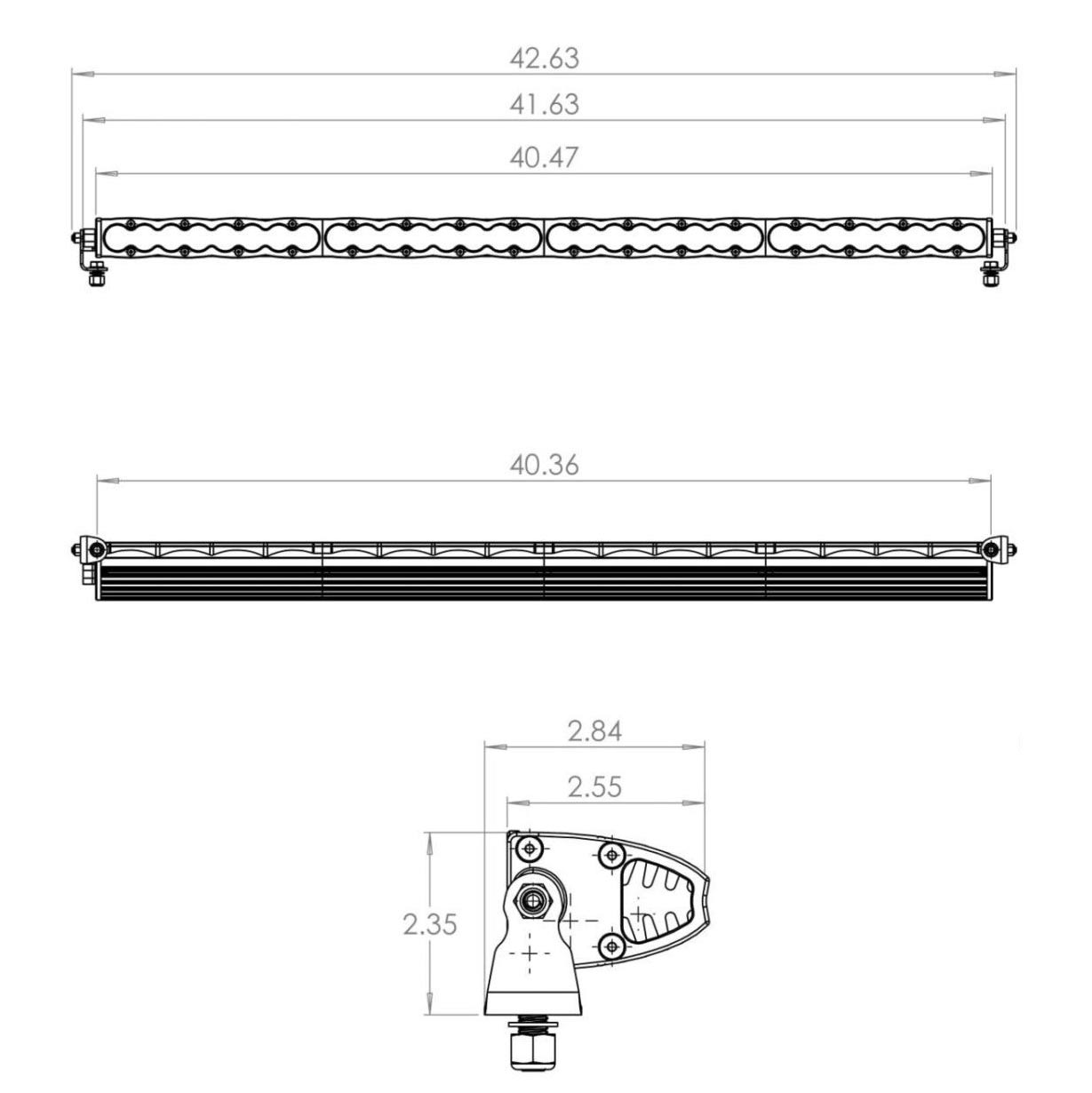

Dimensions
Depth (in.) 3
Height (in.) 1.6
Length (in.) 40
Weight (lbs.) 8.65
Specifications
Amperage Rating (A) 16.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 25,400
Description Driving/Combo; Amber
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam/Amber Backlit Feature
Lighting Quantity 32
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 40 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 240
Wiring Harness Included No
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 32
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 40 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 240
Wiring Harness Included No
Standards & Compliance
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
