Description

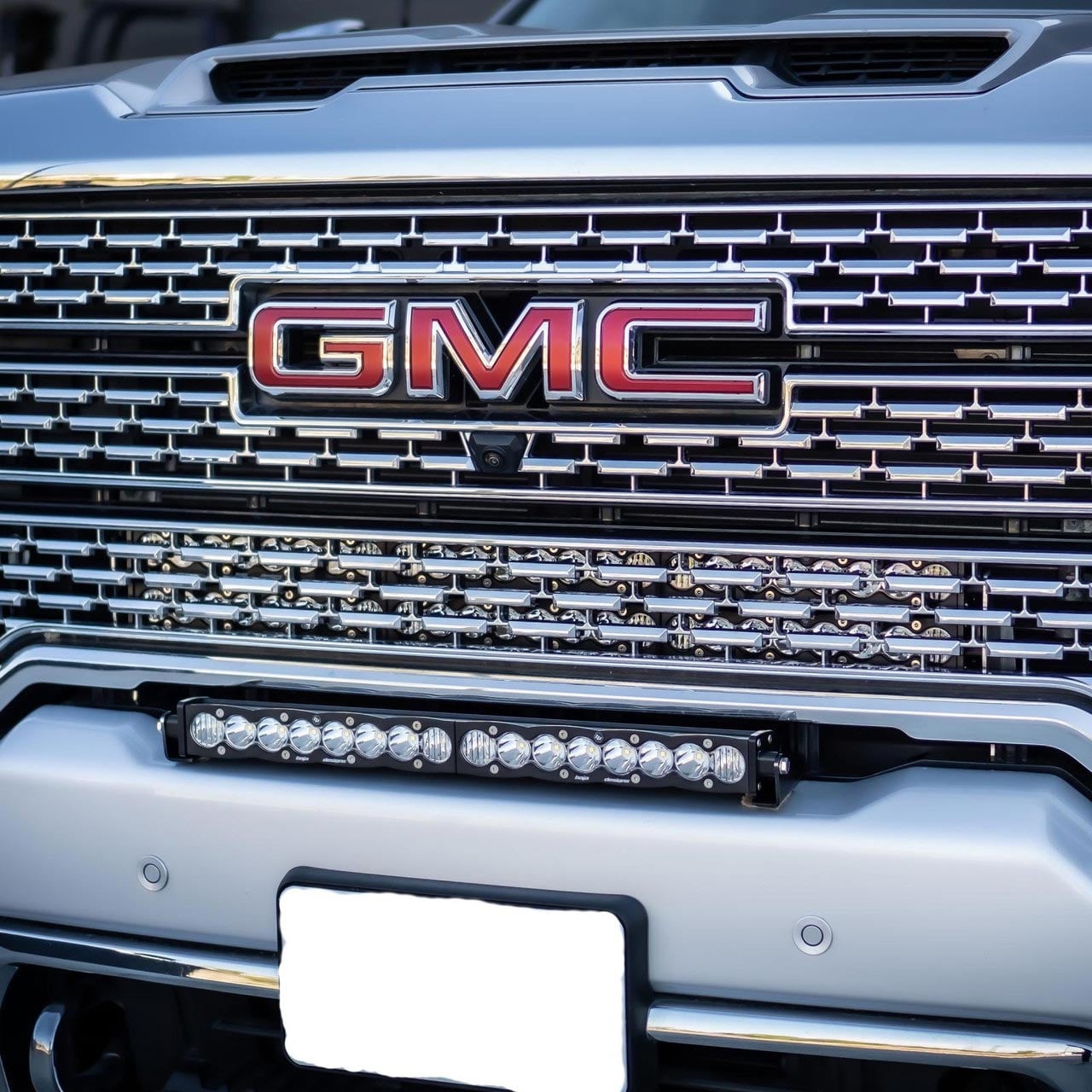

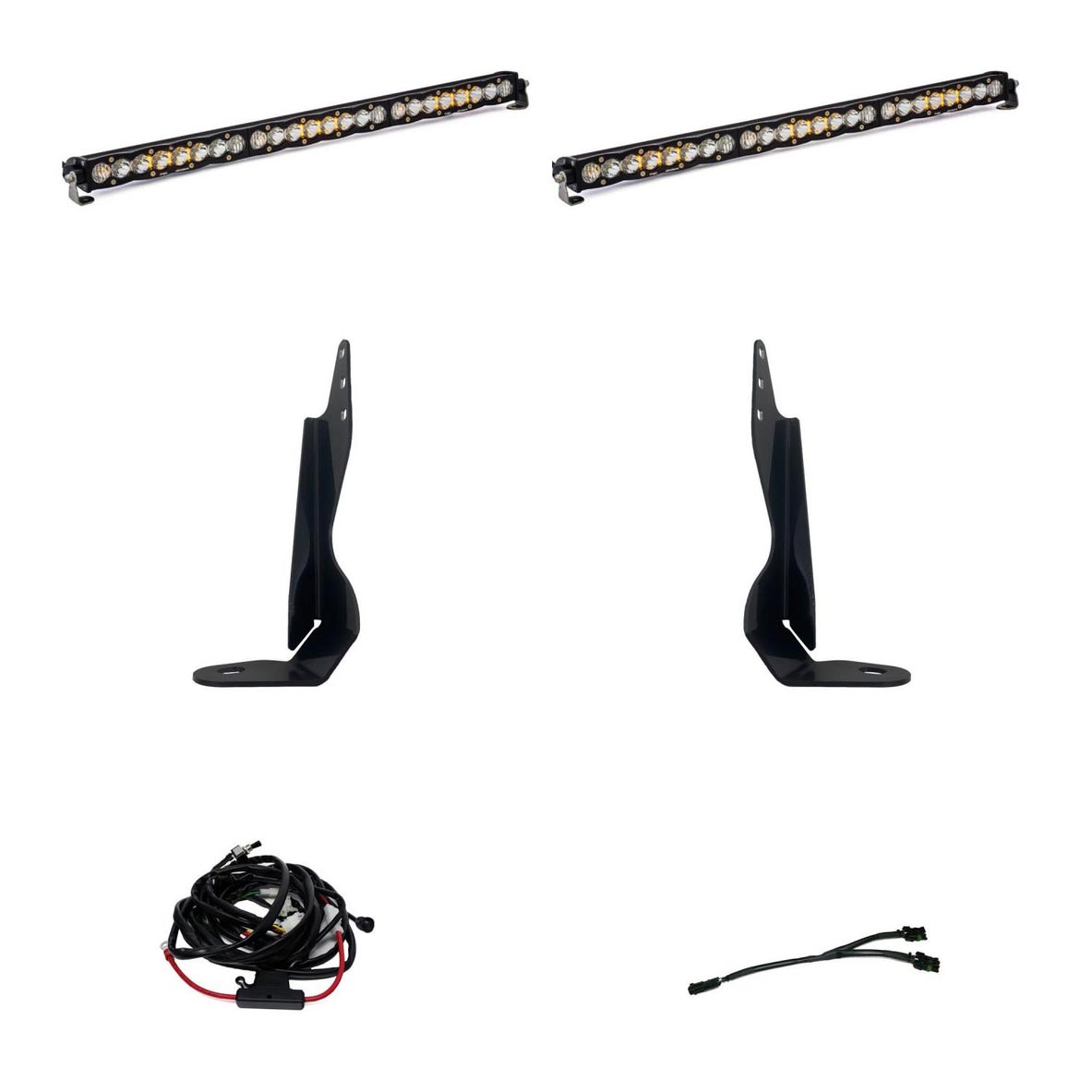

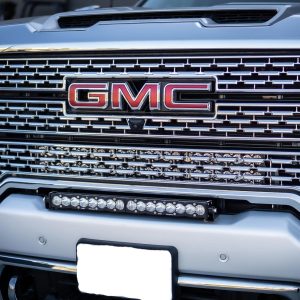

Baja Designs Dual S8 30-inch Light Bar Behind-the-grille kit for 2020-2022 Sierra 2500HD & 3500HD. Includes 2 30-inch S8 light bars, mounting brackets, hardware, and wiring. Each S8 outputs 19,050 raw lumens and has an amber backlight/daytime running light feature.
This kit does not fit the GMC AT4 model due to grill being different.
This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind. This Dual S8 behind the grill kit will provide you with over 38,000 lumens and an amber backlit feature without cutting or drilling. This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle’s ignition which will automatically trigger the amber backlit LEDs. This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail.
Light Bar Specs:
SKU: 703003
Dimensions
Depth (in.) 3
Height (in.) 1.6
Length (in.) 30
Weight (lbs.) 6.5
Specifications
Amperage Rating (A) 12.0
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 19,050
Description Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam/Amber Backlit Feature
Lighting Quantity 24
Lighting Technology Cree LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S8 30 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 180
Standards & Compliance
Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
