Description

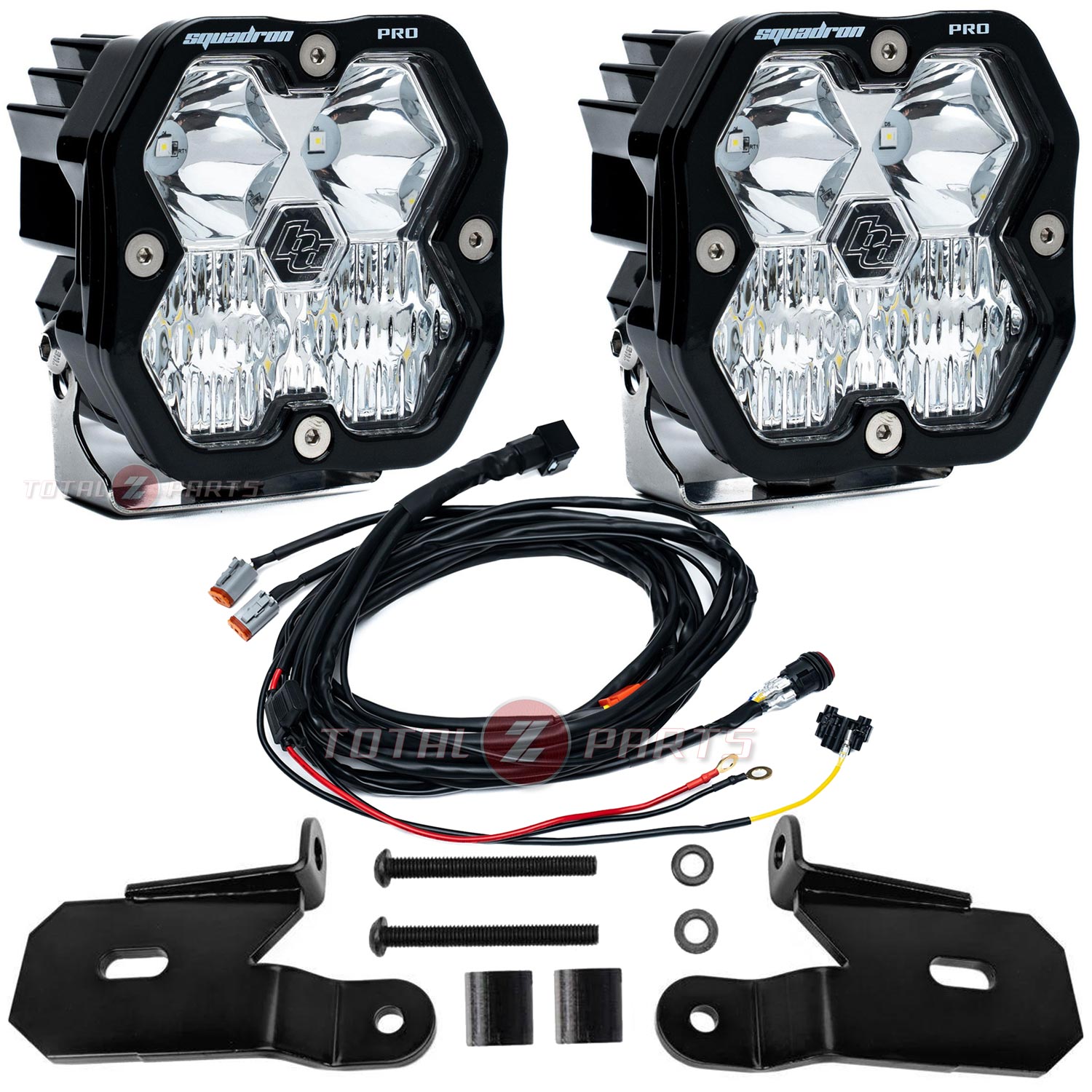

Baja Designs Squadron 2.0 Pro LED pod lights pair (clear driving/combo lens), with KC Hillites ditch light brackets for 2018-2026 Jeep Wrangler JL/4XE and 2020-2026 Jeep Gladiator JT. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification. Each Squadron 2.0 Pro light measures about 3.3 inches in diameter from the front.
The new Squadron 2.0 has a backlight feature with 9 selectable backlight colors. The included wiring harness has a 3-position switch for controlling the main beam, and the 9-color-option backlight feature.
5,921 raw lumens per light.
Driving/Combo Lens Pattern: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
PLEASE NOTE: The included ditch brackets do not fit Jeep Gladiator Mojave, 392, or Sand Runner Editions. We carry separate brackets for those models and have those kits listed separately.
IMPORTANT NOTE: the included wiring harness has a built-in relay and illuminated rocker switch. If you are planning on connecting to your own powered auxiliary wires or switch panel, you will need to cut the wiring harness before the switch and relay, and connect the open wires directly to your vehicle’s switches.
PARTS INCLUDED
(2) Squadron 2.0 Pro LED Light
(2) Baja Designs snap-on black rock guards (with logo)
(1) On/Off Wiring Harness (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) 2018-Current Jeep Wrangler JL/4xe & Gladiator JT A-Pillar/Cowl Brackets
(2) Aluminum Spacers
(2) M6-1.0 X 55mm Button Head Cap Screws
(2) M6 Flat Washers
Specs (per light):
Lumens: 5,921
Watts/Amps: 65W/4.7A @13.8V
Operational Voltage: 12-32V
IP69K Rated
Measurements (per light):
Housing Height (from front of light): 3.318 inches
Housing Width (from front of light): 3.289 inches
Housing Depth: 2.84 inches
Features:
Refined beam pattern provides greater distance, wider coverage, and reduced light spill
RGBW backlight with 9 selectable colors to match any vehicle
New clip‑in reflectors stay secure during lens changes, improving uService®
New gasket design improves sealing and protection against the elements
Redesigned mounting bracket allows greater vertical adjustability
Standard 4‑pin Deutsch connector for improved wiring harness durability
Improved performance – 41% performance increase over Squadron Pro 1.0
The Baja Designs Squadron 2.0 Pro is the next evolution of our most trusted compact LED light pod. Completely redesigned from the inside out, the Squadron 2.0 Pro features a modern housing, next‑generation optics, and a powerful 5,921‑lumen output at 65W—delivering a 41% performance increase over the previous generation with improved beam control and efficiency. Our next generation optics produce a refined beam pattern that projects light farther and wider while minimizing spill, giving you more usable illumination exactly where you need it.
Whether you’re navigating tight trails, wide‑open desert, or a long road trip, the Squadron 2.0 Pro delivers maximum clarity and confidence after the sun goes down. Every detail has been upgraded to raise the standard for compact LED light pods while preserving the proven reliability Baja Designs is known for. The new housing, featuring our signature gloss black aluminum finish provides a bold, modern look while maintaining the unmistakable Baja Designs identity.
New enhancements include updated lens patterns tuned for the redesigned optics, a rugged 4‑pin Deutsch connector for increased durability, and an all‑new color selectable backlight with nine selectable colors to match your vehicle’s style. Improved uService® thanks to the new secure clip‑in reflectors aiding in easy lens changes and a redesigned gasket for superior sealing and long‑term protection against the elements. A new mounting bracket also offers increased vertical adjustability for more precise aiming. Setting a bold new benchmark for LED auxiliary lighting, the Squadron 2.0 Pro is engineered for enthusiasts who demand uncompromising night‑time visibility. Like all Baja Designs products, it’s backed by a Limited Lifetime Warranty for complete peace of mind.
ELS™ Scores:
Squadron 2.0 Pro Spot Clear: ELS 86°/6.1/454/4930
Squadron 2.0 Pro Driving Combo Clear: ELS 128°/7.4/403/4955
Squadron 2.0 Pro Wide Cornering Clear: ELS 132°/7.6/159/4946
Squadron 2.0 Pro Work/Scene Clear: ELS 148°/8.0/64/4575
Available Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
